- ➤ Used Bystronic ByBend Smart 300/4100 | Press For Sale

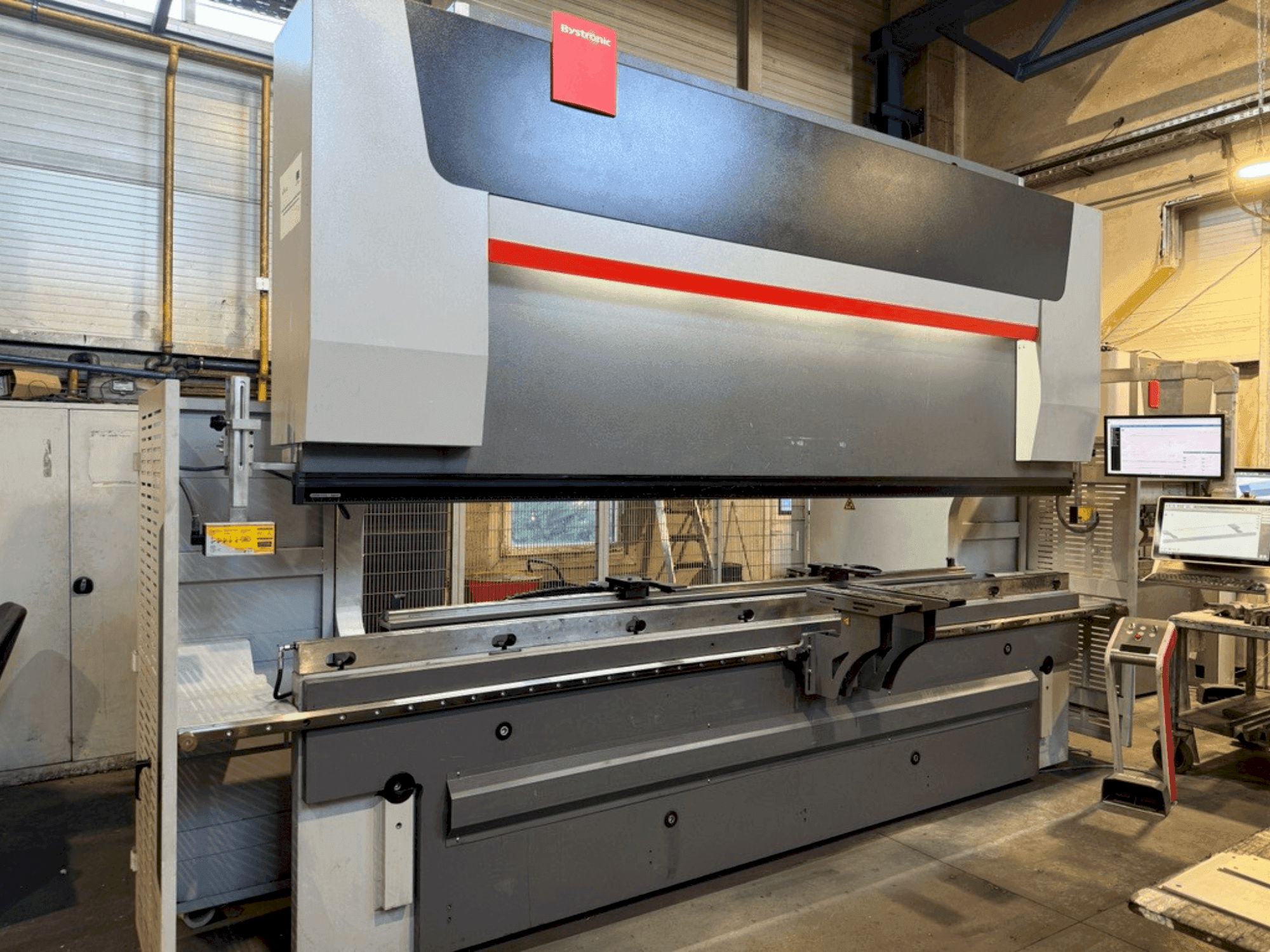

This 4-axis Bystronic ByBend Smart 300/4100 press brake was manufactured in 2022. It features a bending length of 4100 mm, a tonnage of 3000 KN, and a maximum back gauge range of 850 mm. With a main motor power of 22 kW and a weight of 20 tons, this machine offers robust performance for precise bending operations. Ideal for those looking to buy this Bystronic ByBend Smart 300/4100 press brake. Contact us for further details regarding this press brake.
Overview
- brand: Bystronic
- year: 2022
- MODEL: ByBend Smart 300/4100
- production hours: 1609
- application type: Bending & Punching
- Location: Croatia
- machine type: Press Brake
- availability: Immediately
Technical Information - Bystronic ByBend Smart 300/4100
General Data
- Measurements width: 2060 mm
- Measurements depth: 4950 mm
- Measurements height: 3130 mm
- Machine weight: 20000 kg
Main drive
- Pressing force: 3000 kN
- Bending length: 4100 mm
- Main motor power: 22 kW
- Stroke: 300 mm
- Number of axis: 4
Movement
- X-AXIS Movement: 600 mm
- X-AXIS Rapid traverse: 600 mm/s
- Z-AXIS Movement: 2800 mm
- Z-AXIS Rapid traverse: 1000 mm/s
- R-AXIS Movement: 150 mm
- R-AXIS Rapid traverse: 200 mm/s
Table
- Outer width: 60 mm
Additional Equipment
- - Open Height [D]: 580 mm
- - Distance Between Side Frames: 3420 mm
- - Throat [T]: 500 mm
- - Max. Back Gauge Range: 850 mm
- - Oil Capacity: 425 L
Additional Information
- Technical Machine Benefits:
- - Y-axis approach speed: 100 mm/s
- - Y-axis working speed: 9 mm/s
- - Advanced axis control with high accuracy and speed
- - Cycle counter: 35172 h
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
