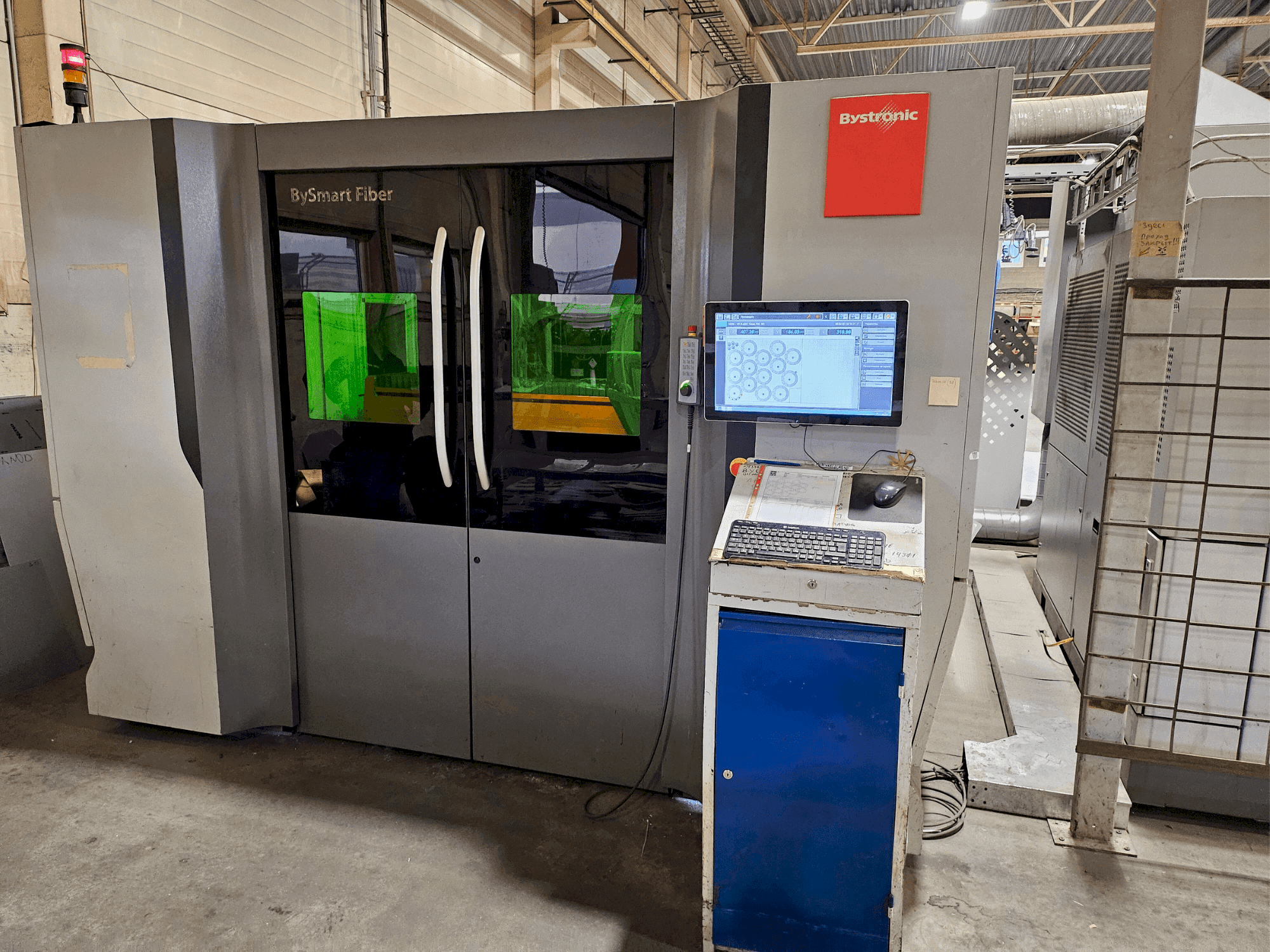

This BYSTRONIC BySmart Fiber 3015 6KW Laser Cutting Machine was manufactured in 2019. It is like new with only 6387h of operation. The cutting head was replaced with a new SSC V2.2 HLC8 (last model) end of 2023. In addition 2 modules were replaced. In total € 80.000 invested. The fiber laser has a laser power of 6kW. In production the machine can run with a sheet size of x = 3000mm and y = 1500 mm. See photo and video gallery for more impressions. Original tech specs sheet as PDF attached below.
Overview
- brand: Bystronic
- year: 2019
- MODEL: BySmart Fiber 3015 6KW
- production hours: 6387
- application type: Cutting
- Location: Estonia
- machine type: Fiber Laser Cutting Machine
- availability: Immediately
Technical Information - Bystronic BySmart Fiber 3015 6KW
General Data
- Measurements width: 10495 mm
- Measurements depth: 6903 mm
- Measurements height: 2880 mm
- Machine weight: 11800 kg (with chiller)
Movement
- X-AXIS Movement: 3106 mm
- Y-AXIS Movement: 1582 mm
- Z-AXIS Movement: 100 mm
Workpiece
- Workpiece weight: 1100 kg
Max Material thickness
- Steel: 25 mm
- Stainless steel: 30 mm
- Aluminum: 30 mm
Additional Information
- Technical Machine Benefits:
- - Sheet size x: 3000mm
- - Sheet size y: 1500mm
- - Total electric consumption with exhoust chiller 30kw
- - Laser source fiber 6000w
- Qualitative Machine Benefits:
- - Max. Cutting thickness: steel 25mm // stained steel 30mm // aluminium 30mm // copper 12mm // brass 15mm
- - Laser like new now very good shape
- - New cutting head ssc v2. 2 hlc8 last model from 10. 2023, replaced 09. 2023 // 2 modules replaced 08. 2023 // total investment: € 80,000
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
