Bystronic - BySprint Fiber 4020 AT-CUT-BYS-2018-00001

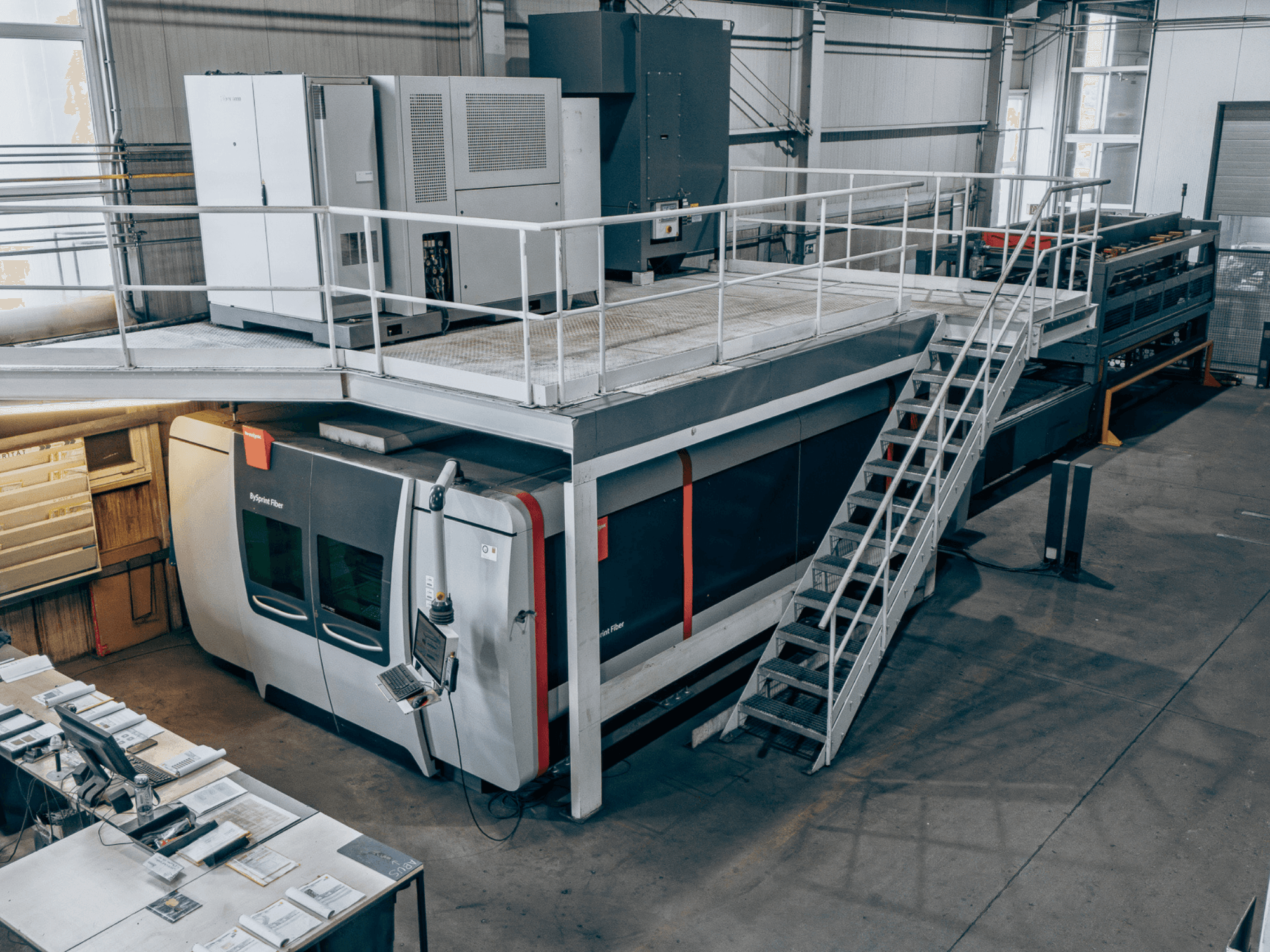

BySprint Fiber 4020

• Laser Source: Fiber Laser

• Laser Power: 6 kW

• Maximum Laser Power: 6000 W

• Working Area / Table Size: 4,000 × 2,000 mm

• Overall Dimensions: Approx. 12 × 3 m (including ByTrans Loading System)

• Machine Weight: Approx. 14,250 kg

• Laser Wavelength: 1060–1080 nm

• Operating Hours: 36,725 h

• Cutting Hours: 19,032.02 h

• Machine Condition: Used, Fully Functional, Currently in Production

• Documentation: Included

• Operating Manual: Included

• Spare Parts: Small Quantity of Wear Parts Included

Optional – ByTrans Extended 4020

• Automation System: ByTrans Extended 4020

• Number of Cassettes: 2

• Maximum Sheet Size: 4,064 × 2,080 mm

• Nominal Sheet Size: 4,000 × 2,000 mm

• Sheet Thickness (Loading/Unloading): 0.8–20 mm

• Maximum Sheet Weight: 1,300 kg

• Maximum Raw Material Stack Weight: 3,000 kg

• Maximum Raw Material Stack Height: 240 mm

• Maximum Cut Parts Stack Height: 350 mm

• Standard Cycle Time: 75 s

• Module Weight: 7,200 kg

• Maximum Electrical Consumption: 6 kW

• Maximum Compressed Air Consumption: 10 m³/h
