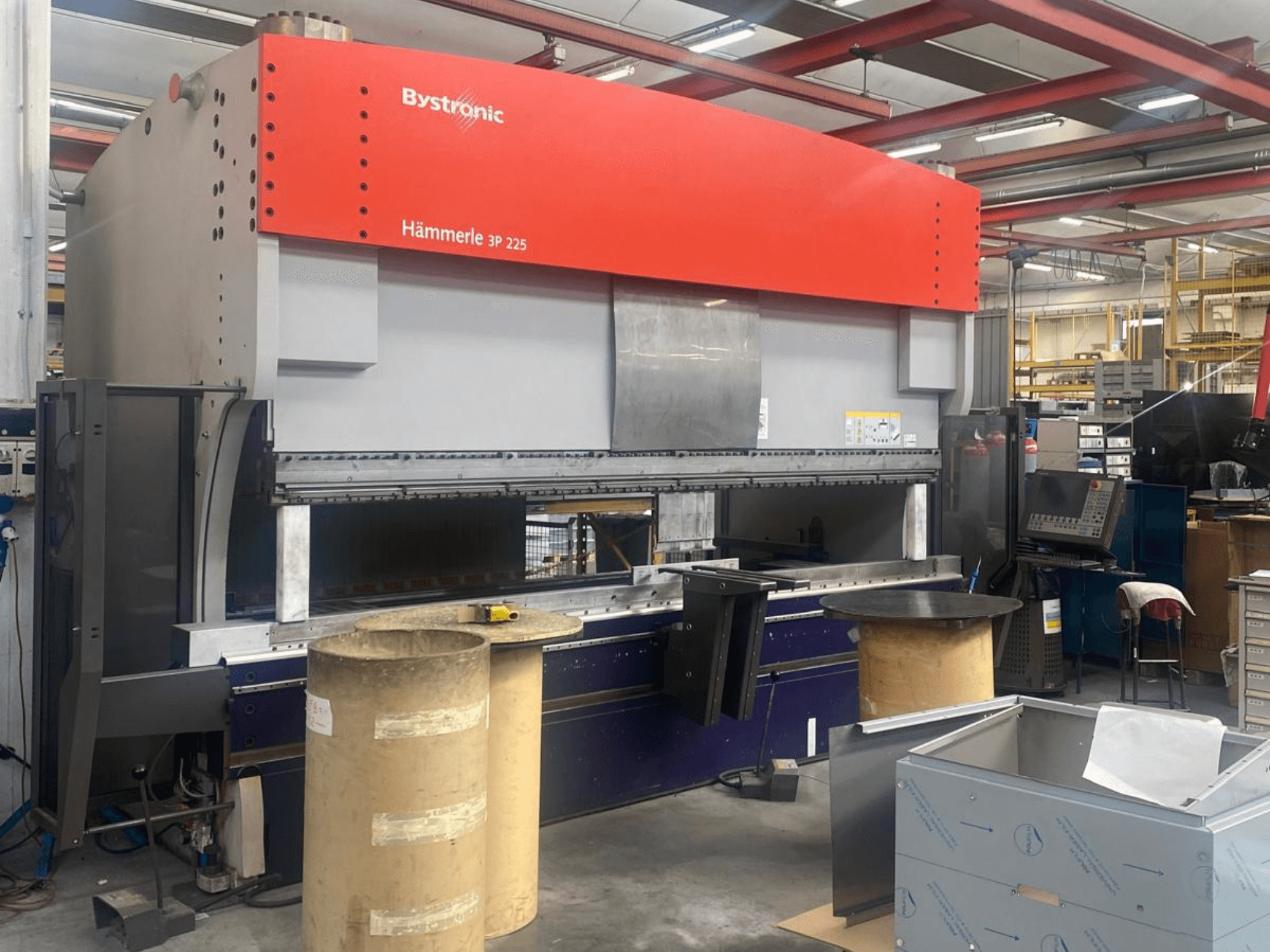

Bystronic - Hammerle 225 3p 4100IT-BEN-BYS-2007-00001

• Note: Nameplate shows 3100 mm, but seller confirms 225/410 configuration (4100 mm)

• Machine structure:

  • Distance between uprights: 4200 mm

  • Throat depth: 250 mm

  • Standard installation height: 917 mm

  • Standard stroke: 400 mm

  • Ram thickness: 80 mm

  • Below-floor installation: No

• Table:

  • Working height with WZ 86 mm tooling: 1056 mm

  • Table width: 93 / 108 mm

  • Table height: 130 mm

  • Lower beam thickness: 160 mm

• Movements:

  • Max approach speed: 150 mm/s

  • Max working speed: 10 mm/s

  • Max return speed: 150 mm/s

  • Y-axis tolerance: ±5 µm

• Clamping system: Hydraulic die clamping (standard), Hydraulic punch clamping (standard)

• Electrical / Utilities:

  • Connected load: 40 kW

  • Operating voltage: 400 / 480 V AC

  • Frequency: 50 / 60 Hz

  • Rated slow-blow pre-fuse: 80 A

  • Hydraulic oil: 600 l

  • Compressed air: 0.6 MPa

• Condition: Machine operational

Additional equipment

• Bending aids:

  • Right bending aid (operational)

  • Left bending aid (installed, not operational)

• Tooling package (Hämmerle):

  • Straight upper tooling, code 001-005: approx. 5,410 mm total

  • Gooseneck upper tooling, code 014-005: approx. 2,905 mm total

  • Bottom die set, code 007.20-02: approx. 4,735 mm total

  • Bottom die set, code 013.00-03: approx. 4,825 mm total

  • Bottom die set, code 016.10-01: approx. 3,225 mm total

  • Tooling suitable for various bending applications and material thicknesses
