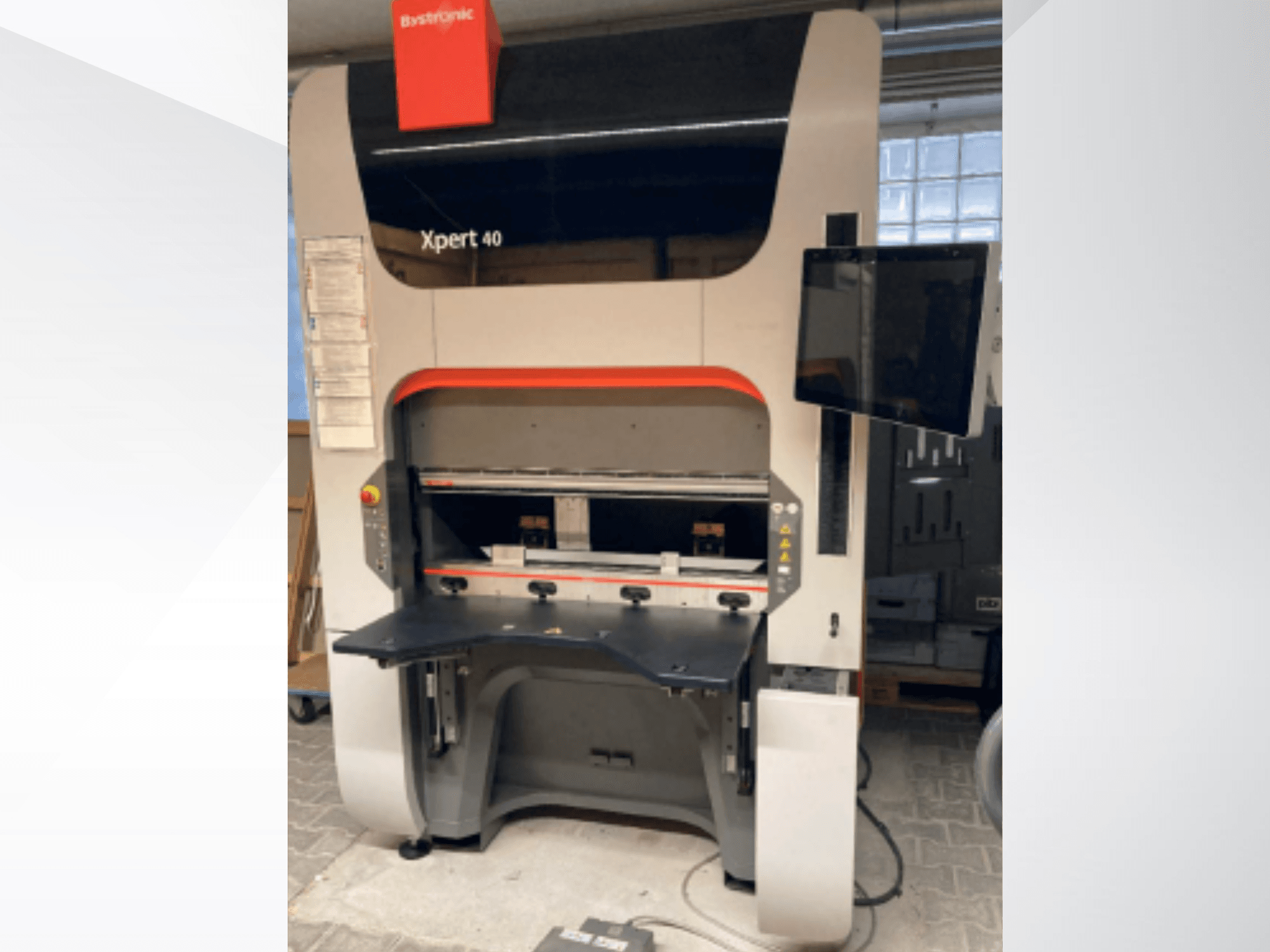

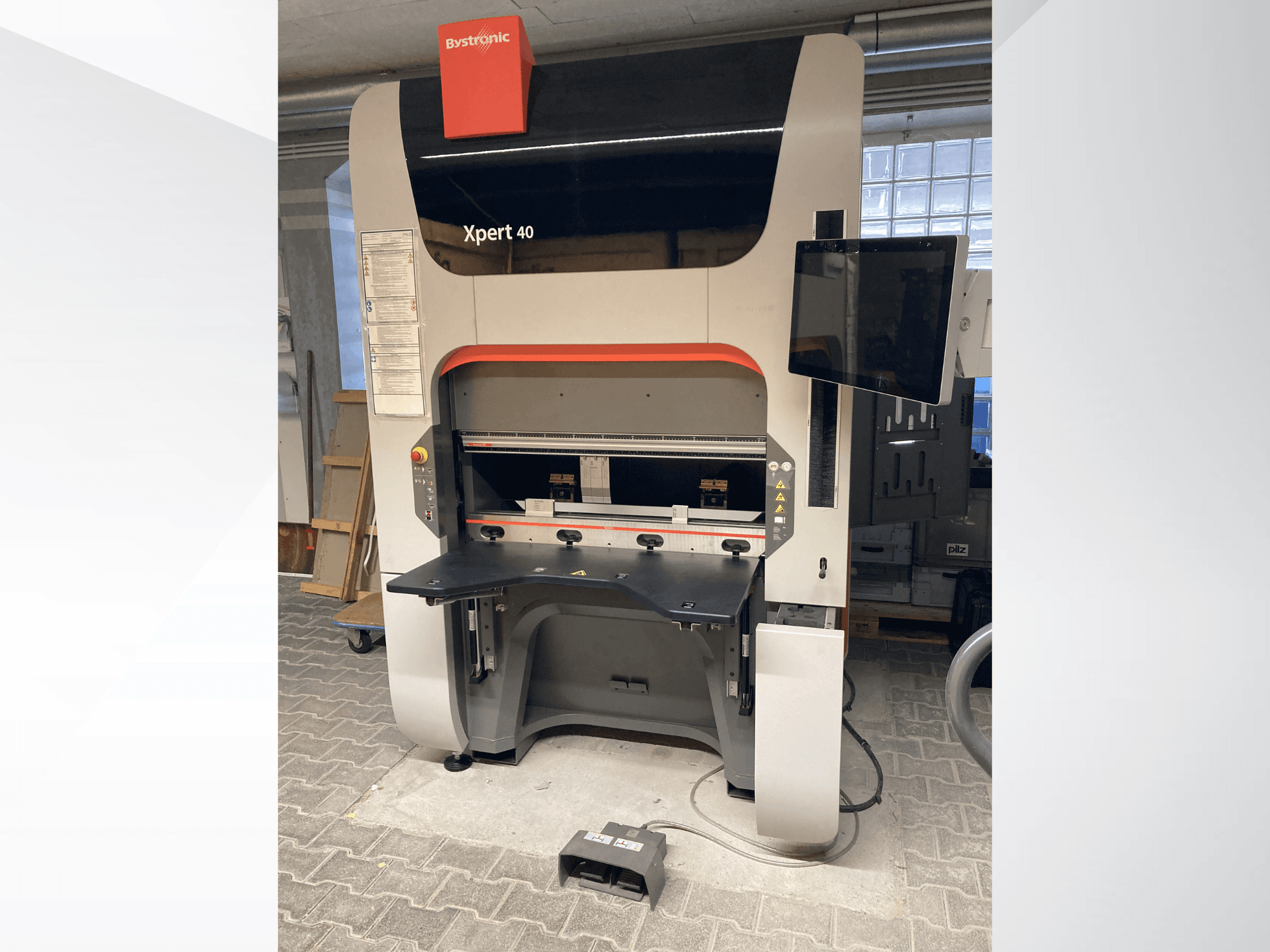

Bystronic - Xpert 40/1030DE-BEN-BYS-2016-00001

• Number of axes: 6-axis backgauge (Y1, Y2, X, R, Z1, Z2)

• R-axis travel: 100 mm

• Y-approach speed: 300 mm/s

• Y-working speed: 25 mm/s

• Open height: 515 mm

• Distance between side frames: 1060 mm

• Table width: 60 mm

• Total connected load: 12 kW

• Operating voltage: 400 VAC (3 phase, 50 Hz)

• Control voltage: 24 VDC

• Nominal current fuse: 32 A

• Max. hydraulic pressure: 320 bar

• Control system: ByVision Bending with 22-inch Full HD touch display

• Stroke: 200 mm

• Throat: 0 mm

• Press force: 400 KN

• Bending length: 1030 mm

• Working height: 885 mm

• Lower beam width: 120 mm

• Crowning: hydr.

• Y rapid approach speed: 250 mm/s

• Y return speed: 250 mm/s

• Main motor power: 7.5 kW

• Oil capacity: approx. 100 l

• Backgauge: Type P14HA3-HA6

• X-axis travel: 300 mm

• Max. backgauge range in X: 500 mm

• X-axis accuracy: 0.02 mm

• X-axis speed: 1500 mm/s

• R-axis travel: 100 mm

• R-axis accuracy: 0.1 mm

• R-axis speed: 500 mm/s

• Z-axis travel: approx. 955 mm

• Z-axis accuracy: 0.1 mm

• Z-axis speed: 2000 mm/s

• X1-axis travel: 0 mm

• X1-axis accuracy: 0 mm

• X1-axis speed: 0 mm/s

• Length (L): 1520 mm

• Width (W): 1700 mm

• Height (H): 2449 mm

• Side frame below floor: 0 mm

• Lower beam below floor: 0 mm

• Weight: approx. 4 t

Additional equipment

• Integrated tool storage cabinets

• Multiple sets of bending tools (punches/dies)

• Ergonomic foot switch

• XPT Clamping
