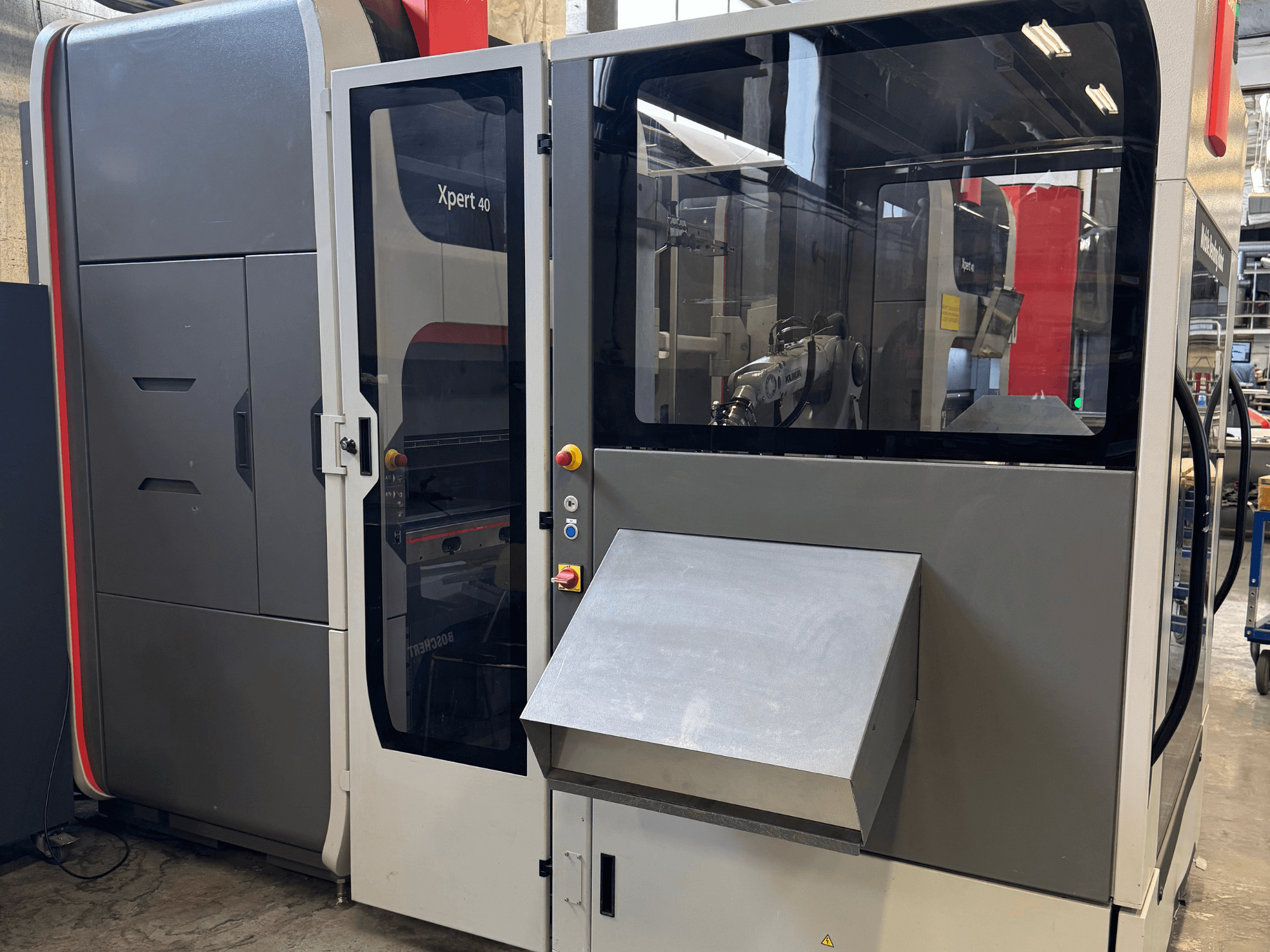

Bystronic - Xpert 40/1030 SE-BEN-BYS-2017-00001

• Control: ByVision Bending

• Backgauge: 6-axis

• Interface: OPC

• Oil cooling system

• Safety system: Fast Bend G2

• Electrical: 3-phase 400V / 50 Hz

• Main motor power: 7.5 kW

• Made in Germany

• The PLC Runtime is 1812 hours

• The Robot Runtime is 140 hours.

Additional equipment

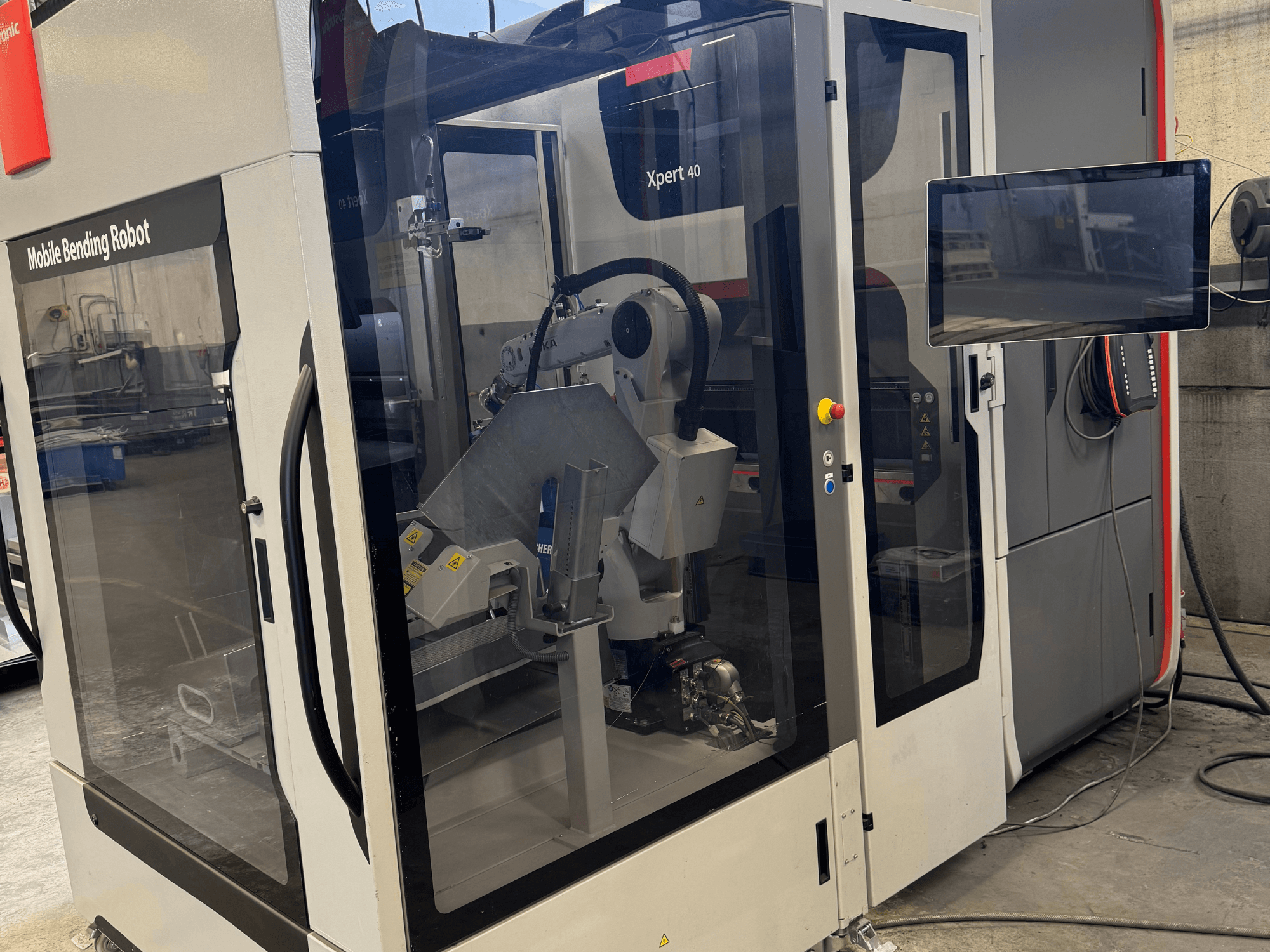

• Bystronic Mobile Bending Robot (Integrated robotic bending cell)

  • Year of manufacture: 2017

  • Electrical: 3-phase 400V / 50 Hz

  • Power consumption: 3 kW

  • Pneumatic pressure max: 8 bar

  • Weight: approx. 1000 kg

LIST OF TOOLS

Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=300 mm
Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=275 mm
Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=200 mm
Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=100 mm
Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=50 mm
Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=30 mm
Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=20 mm
Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=15 mm
Bystronic V10S/30° – 350 kN/m – R=1 mm – H=55 mm – L=10 mm

Bystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=275 mm
Bystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=200 mm
Bystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=100 mm
Bystronic P5RFA/30° Left Angle – 750 kN/m – R=1 mm – H=250 mm – L=100 mm
Bystronic P5RFA/30° Right Angle – 750 kN/m – R=1 mm – H=250 mm – L=100 mm
Bystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=50 mm
Bystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=30 mm
Bystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=20 mm
Bystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=15 mm
Bystronic P5RFA/30° – 750 kN/m – R=1 mm – H=250 mm – L=15 mm
