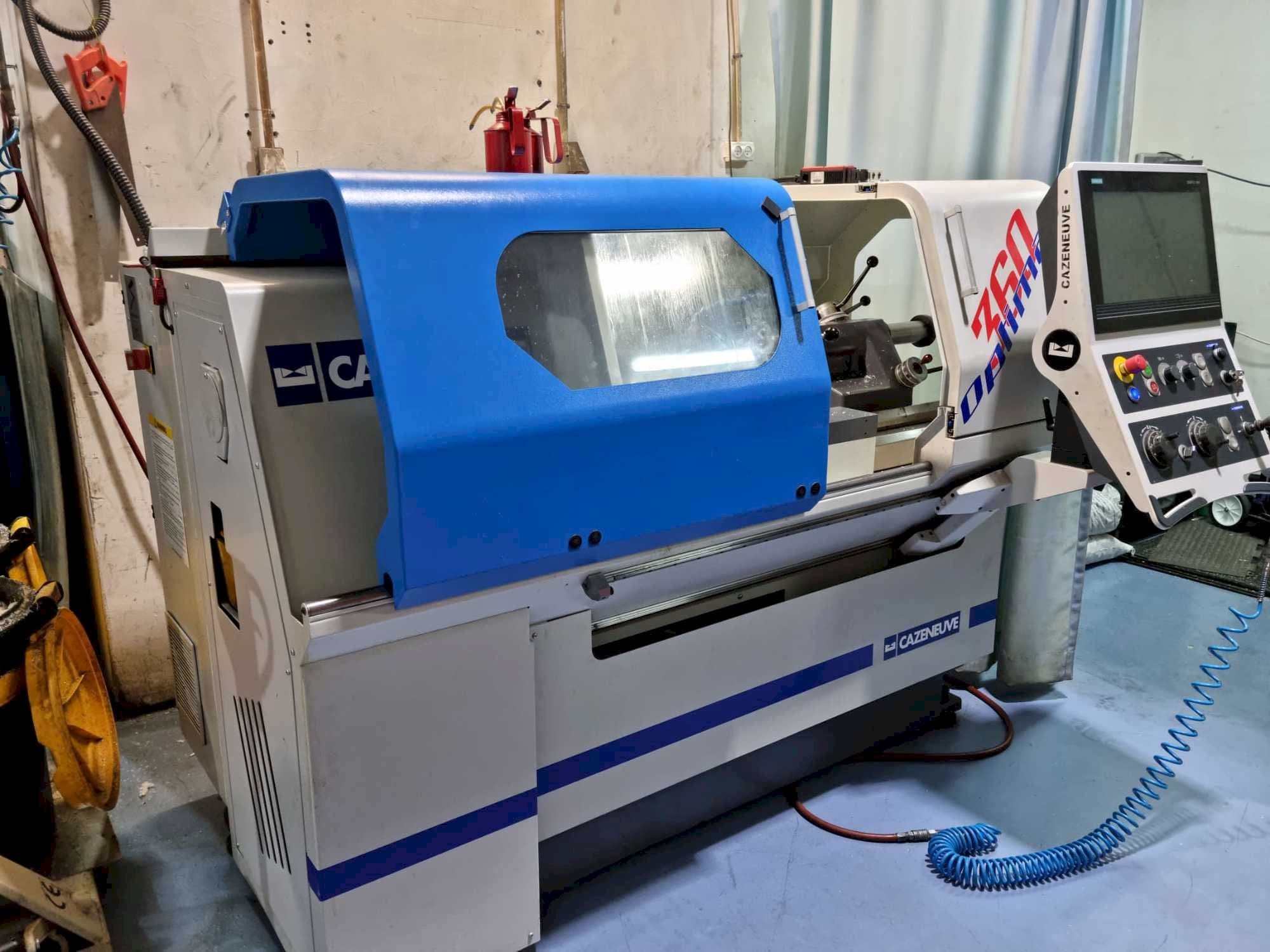

Front view of CAZENEUVE Optimax 360 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CAZENEUVE Optimax 360

Photo Gallery

CAZENEUVE - Optimax 360IL-TUR-CAZ-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CAZENEUVE Optimax 360 Lathe

Show in original language

This CAZENEUVE Optimax 360 Lathe was manufactured in the year 2019 in France. It is equipped with a SIEMENS OPTIMAX control unit. The machine has a spindle speed of 3000 rpm, is in good condition and well maintained. CE conformity.

Overview

brand: CAZENEUVE
year: 2019
MODEL: Optimax 360
application type: Turning
Location: Israel
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - CAZENEUVE Optimax 360

General Data

Measurements width: 1575 mm
Measurements depth: 2000 mm
Measurements height: 1542 mm
Machine weight: 2000 kg

Control Unit

Model: OPTIMAX
Brand: SIEMENS

Main drive

Spindle speed range: 3000 1/MIN

Additional Information

Additional equipment

CE conformity

Machine Benefits

Qualitative Machine Benefits

Quill travel: 140 mm
Turret, tool size: multifix b, 20 x 20 mm

Technical Machine Benefits

Distance between centres: 700 mm
Swing over bed: 390 mm
Swing over cross slide: 200 mm
Carriage x axis travel: 180 mm
Z axis travel: 610 mm
Bed width: 330 mm
Nose type: a1 6''
Chuck diameter: 200 mm
Spindle bore 54 mm
Quill diameter and taper: 60 mm, mt4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
