➤ Used HAAS ST-10 Horizontal Lathe For Sale | gindumac.com

Show in original language

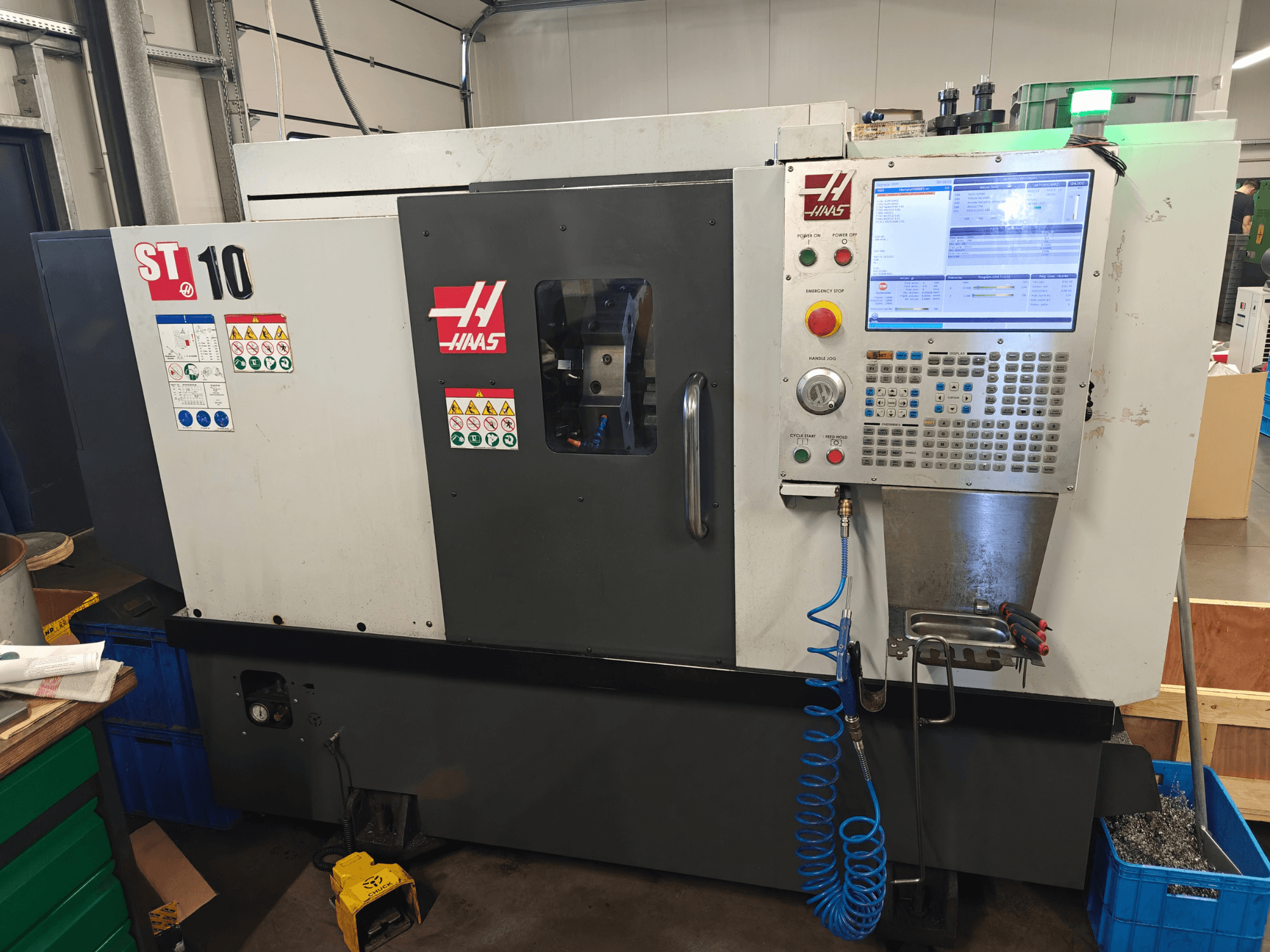

Horizontal turning machine manufactured in 2019. This HAAS ST-10 features a maximum turning diameter of 229 mm and a maximum turning length of 355 mm. It includes a spindle power of 11.2 kW and a maximum spindle speed of 6,000 rpm. If you are looking to get high-quality turning capabilities, consider the HAAS ST-10 machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2019
MODEL: ST-10
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-10

Control Unit

Control Brand: HAAS
Control Model: NGC

Dimensions

Machine Height: 2060 mm
Machine Length: 3200 mm
Machine Weight: 3600 kg
Machine Width: 1780 mm

Movement

Number of Axes: 2
X-axis Travel: 200 mm
Z-axis Travel: 406 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 11.2 kW
Spindle Speed: 6000 RPM
Taper Size: VDI 40
Tool Stations: 12

Additional Information

Main spindle

Spindle nose: A2-5
Max bar capacity: 44 mm
Max turning diameter: 229 mm
Max turning length: 355 mm
Max swing over bed: 413 mm

Turret and axis travels

Number of tool positions: 12

Tailstock

Type: Manual
Quill taper: MT3
Tailstock travel: 508 mm
Quill travel: 95 mm

Electrical supply

Voltage: 440 V (per machine nameplate)
Phases: 3

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
