CHARMILLES - Robofil 510IT-EDM-CHA-1998-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used CHARMILLES Robofil 510 For Sale | gindumac.com

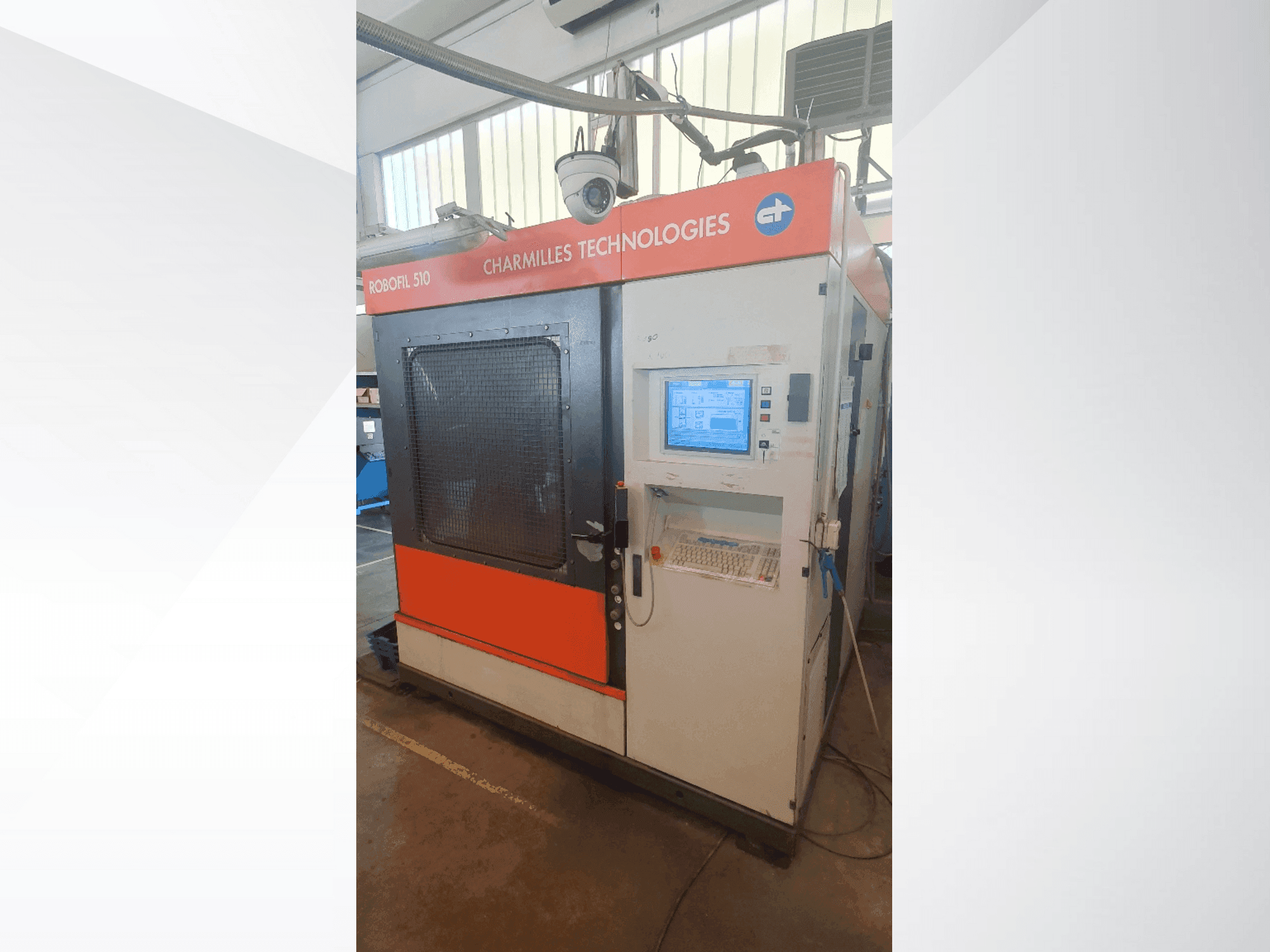

This CHARMILLES Robofil 510 wire edm machine was manufactured in 1998. It supports X, Y, Z travels of 700, 400, and 400 mm respectively, and can handle a maximum workpiece weight of 1,000 kg. The machine allows for a maximum angle of conical machining up to +/- 30° and operates with a wire diameter between 0.1 and 0.3 mm. For more information about this wire edm machine, please reach out to us.
Overview
- brand: CHARMILLES
- year: 1998
- MODEL: Robofil 510
- application type: EDM
- Location: Italy
- machine type: Wire EDM Machine
- availability: Immediately
Technical Information - CHARMILLES Robofil 510
General Data
- Measurements width: 2100 MM
- Measurements depth: 2100 MM
- Measurements height: 2230 MM
- Machine weight: 3500 KG
Movement
- X-AXIS Movement: 700 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
Workpiece
- Workpiece x: 1200 mm
- Workpiece y: 700 mm
- Workpiece z: 400 mm
- Workpiece weight: 1000 kg
Additional Information
- Technical Machine Benefits:
- - Min. Wire diameter: 0. 1 mm
- - Max. Wire diameter: 0. 3 mm (currently equipped to work with wire diameter 0. 25 mm)
- - Maximum angle of conical machining: +/- 30° (up to 45° with modifications on the buses)
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
