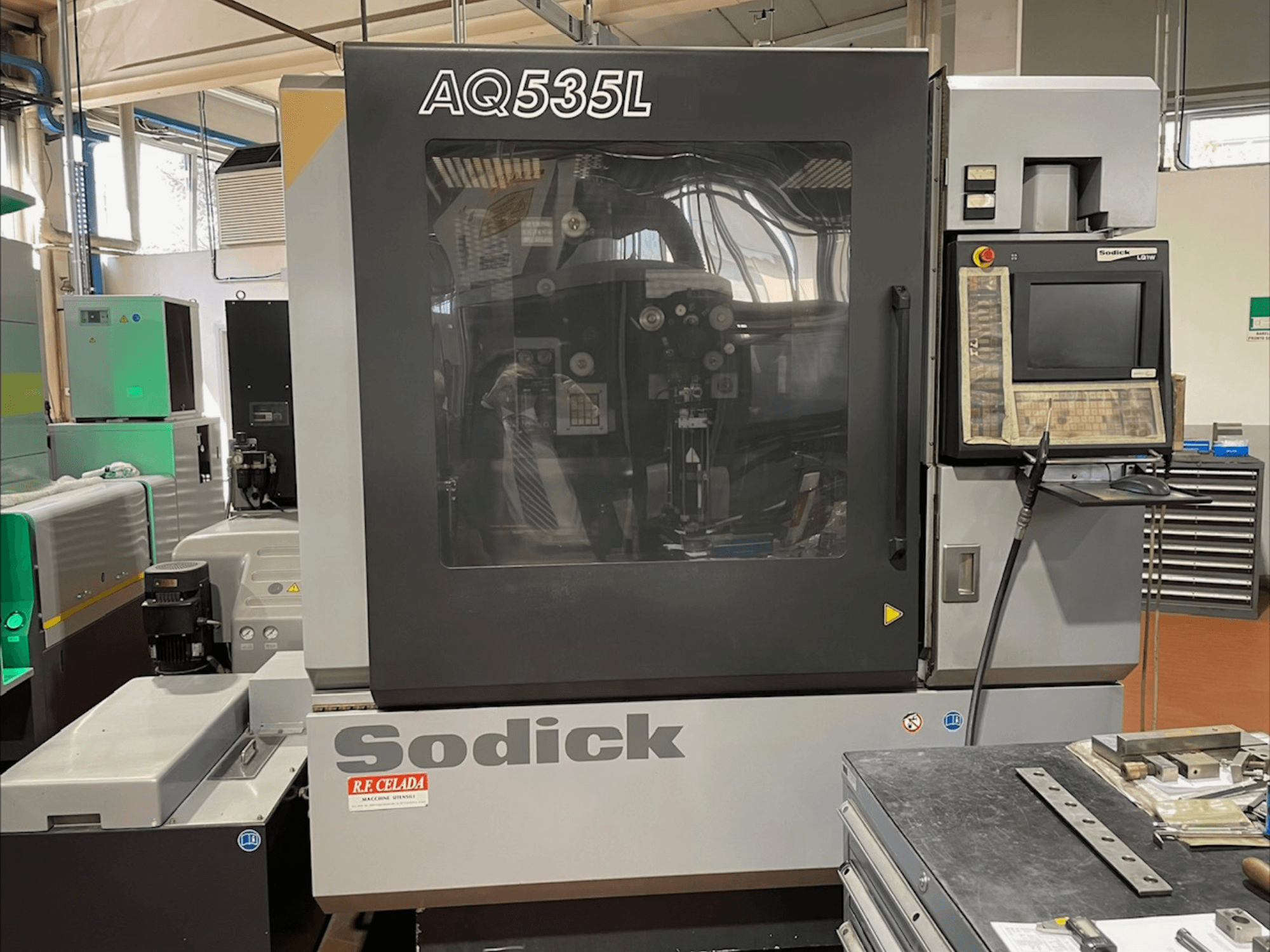

This 5-axis Sodick AQ535L wire EDM machine was manufactured in 2007. It features an X-axis travel of 550 mm, Y-axis travel of 350 mm, and Z-axis travel of 300 mm. The work table size is 790 x 500 mm, with a maximum workpiece weight capacity of 800 kg. If you are looking to get high-quality wire EDM capabilities, consider the Sodick AQ535L machine we have for sale. Contact us for further details.
Overview
- brand: Sodick
- year: 2007
- MODEL: AQ535L
- application type: EDM
- Location: Italy
- machine type: Wire EDM Machine
- Available from: 26/05/2026
Technical Information - Sodick AQ535L
Dimensions
- Machine Height: 1843 mm
- Machine Weight: 4200 kg
- Machine Width: 1970 mm
Movement
- Number of Axes: 5
- X-axis Travel: 550 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 300 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.15 mm
Additional Information
Axis travels:
U: 80 mm
V: 80 mm
Table / Tank:
Work table size (W x D): 790 x 500 mm
Work tank dimensions (W x D): 1100 x 720 mm
Distance from floor to table top: 1005 mm
Workpiece capacity:
Maximum workpiece height: 290 mm (standard) / 270 mm (submerged)
Maximum workpiece weight: 800 kg (standard) / 680 kg (submerged)
Wire system:
Taper angle: 20° / 80 mm
Wire tension: 300 g to 2300 g
Max wire feed speed: 250 mm/sec
Max wire spool weight: 6 kg
Dielectric tank:
External dimensions (W x D x H): 640 x 2400 x 1843 mm
Empty weight: 350 kg
Capacity: 730 L
Deionizer: 10 L
Filtration system: 2 replaceable paper filters
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
