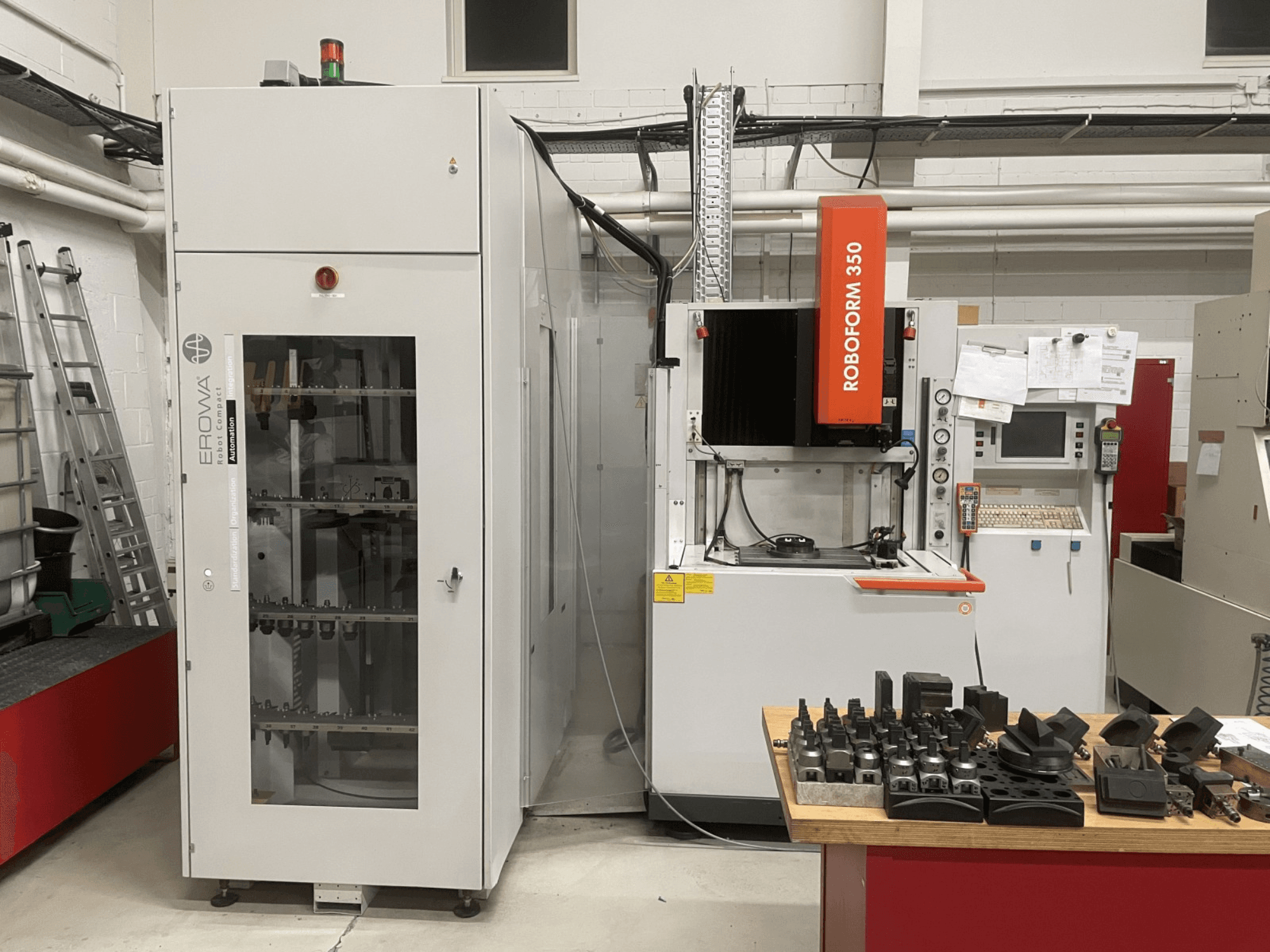

This 3-axis CHARMILLES Roboform 350 die-sinking EDM machine was manufactured in 2006. It features travel paths of 350 x 250 x 300 mm and can accommodate a maximum electrode weight of 25 kg. The machine has a power consumption of 7.5 kVA and weighs 2350 kg. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES Roboform 350 machine we have for sale. Contact us for further details.
Overview
- brand: CHARMILLES
- year: 2006
- MODEL: Roboform 350
- application type: EDM
- Location: Germany
- machine type: Die-Sinking EDM Machine
Technical Information - CHARMILLES Roboform 350
Dimensions
- Machine Weight: 2350 kg
Movement
- X-axis Travel: 350 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 300 mm
Additional Information
Maximum electrode weight: 25 kg
Minimum power consumption: 5 kVA
Power: 7.5 kVA
Voltage: 400 V
Frequency: 50 Hz
Current: 10.6 A
Additional equipment
Erowa zero-point clamping system on table (included)
Electrode holder: not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
