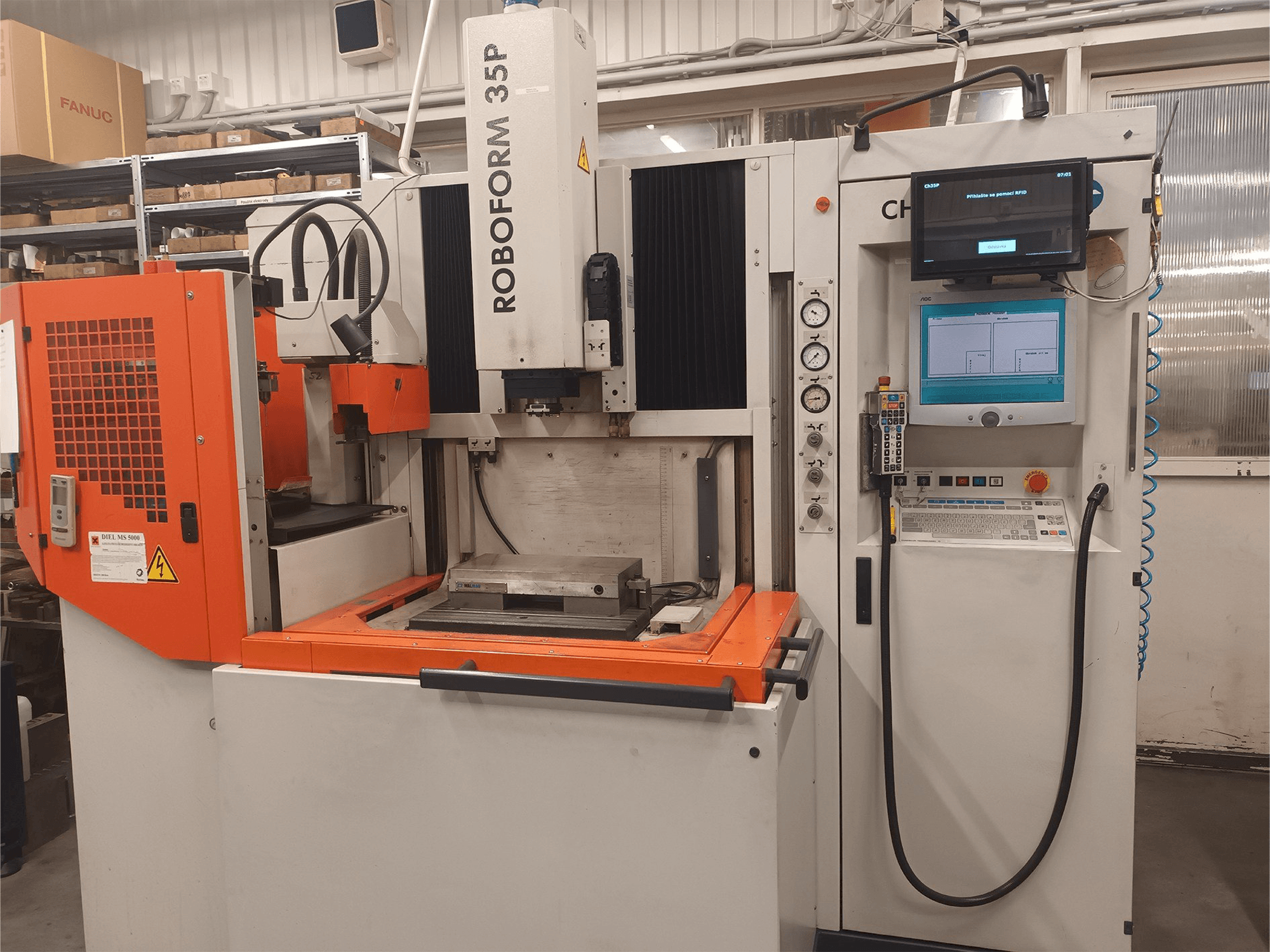

Front view of CHARMILLES ROBOFORM 35P machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHARMILLES ROBOFORM 35P

Photo Gallery

CHARMILLES - ROBOFORM 35PCZ-EDM-CHA-2001-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CHARMILLES ROBOFORM 35P EDM machine

Show in original language

This CHARMILLES ROBOFORM 35P EDM machine was made in Switzerland in 2001. It has been working for 37328 hours. It operates with a table dimensions of 500 x 400 mm. It comes with an electrode clamping EROWA ITS50 and electrode magazine of 20 positions.

Overview

brand: CHARMILLES
year: 2001
MODEL: ROBOFORM 35P
production hours: 37328
application type: EDM
Location: Czech Republic
machine type: Die-Sinking EDM Machine

Technical Information - CHARMILLES ROBOFORM 35P

Dimensions

Machine Weight: 2500 kg
Table Length: 500 mm
Table Width: 400 mm

Movement

X-axis Travel: 350 mm
Y-axis Travel: 250 mm
Z-axis Travel: 350 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Electrode clamping erowa its50
Electrode magazine: 20 positions
Dialectric tank volume: 800 litres
Tank dimensions: 780 x 500 mm
Distance between chuck and table min/max : 140/450 mm
Die sinking edm machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
