CHIRON DZ 15 W

Photo Gallery

CHIRON - DZ 15 WDE-MIL-CHI-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON DZ 15 W For Sale | gindumac.com

Show in original language

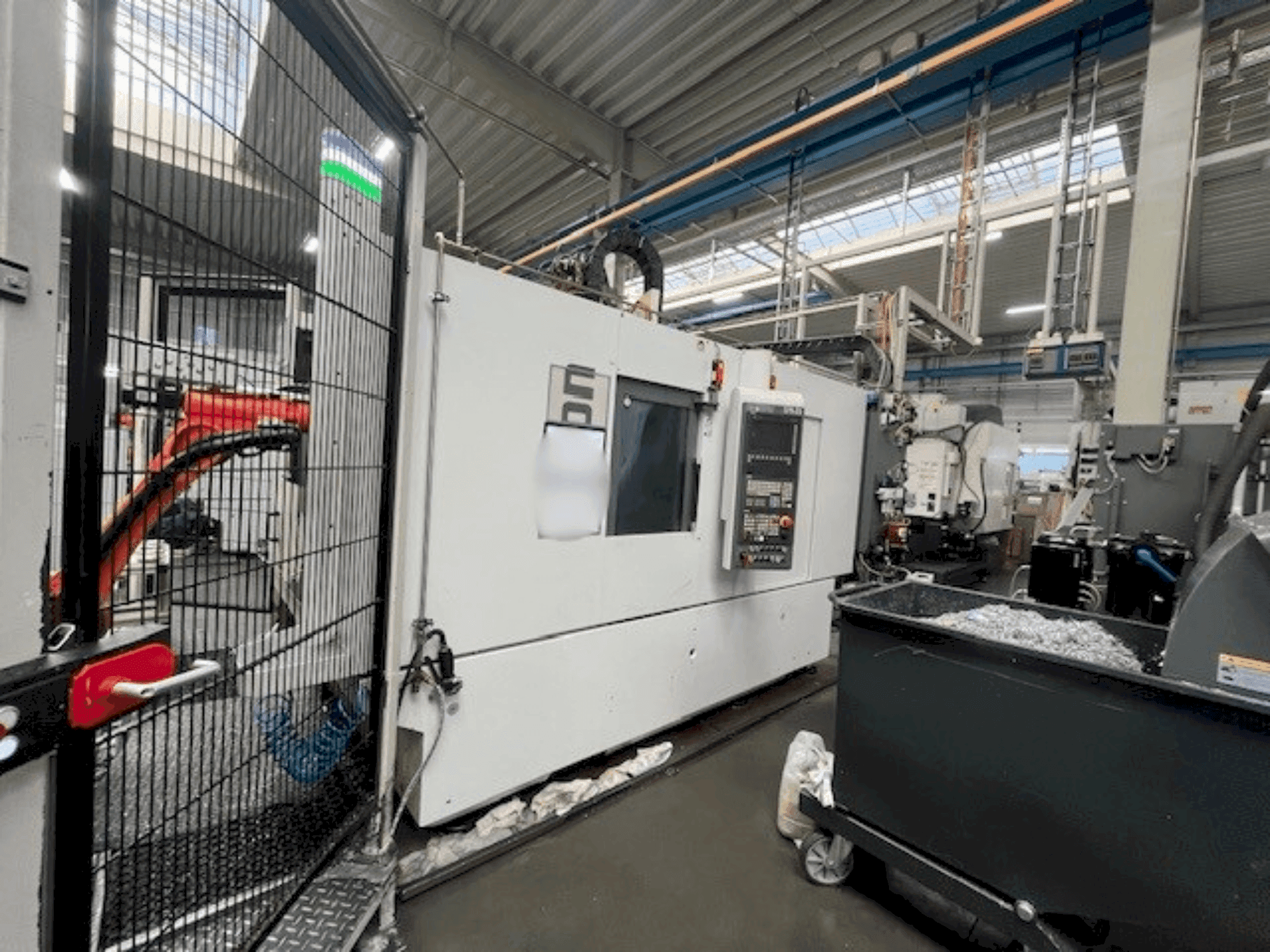

This 4-axis CHIRON DZ 15 W was manufactured in 2019, offering advanced capabilities for precise vertical machining. Ideal for complex geometries and multi-face machining, this machine ensures efficient production processes. Consider the opportunity to buy this CHIRON DZ 15 W vertical machining centre. Contact us for more information.

Overview

brand: CHIRON
year: 2019
MODEL: DZ 15 W
production hours: 26248
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON DZ 15 W

Control Unit

Control Brand: SIEMENS
Control Model: 840D solution line

Movement

X-axis Travel: 630 mm
Y-axis Travel: 400 mm
Z-axis Travel: 360 mm

Technical Specification

Max. Tool Weight: 5 kg
Spindle Speed: 15000 RPM

Additional Information

Additional equipment

Automatic loading door
Touch probe (Blum TC 52) for workpiece measurement
CHIRON RemoteLine for remote diagnostics and teleservice
Proportional valves for programmable clamping pressure
Tool life monitoring (SIEMENS)

Machine Benefits

Qualitative Machine Benefits

Tool change time: approx. 0. 9 s
Chip conveyor capacity: 320 l
Container capacity: 900 l
Hp pump: 37-43 l/min (20-70 bar)
Mains connection: 3×400 v ±10%
Compressed air: 6 bar (+1/-0. 5 bar)

Technical Machine Benefits

Torque: max. 140 nm
Type: atu 200 (2 pieces)
Holding/clamping torque: 1200 nm (rotary table), 800 nm (counter bearing)
Repeat accuracy: ±5"
Faceplate Ø: 225 mm
Memory: nc working memory 3 mb
Pick-up chain magazine
Capacity: 2 × 24 tools
Tool shank: hsk-a 63 (din 69893)
Max. Tool Ø: 78 mm (140 mm with free adjacent positions)

Extra Information

spindle distance 320 mm Loading door is available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
