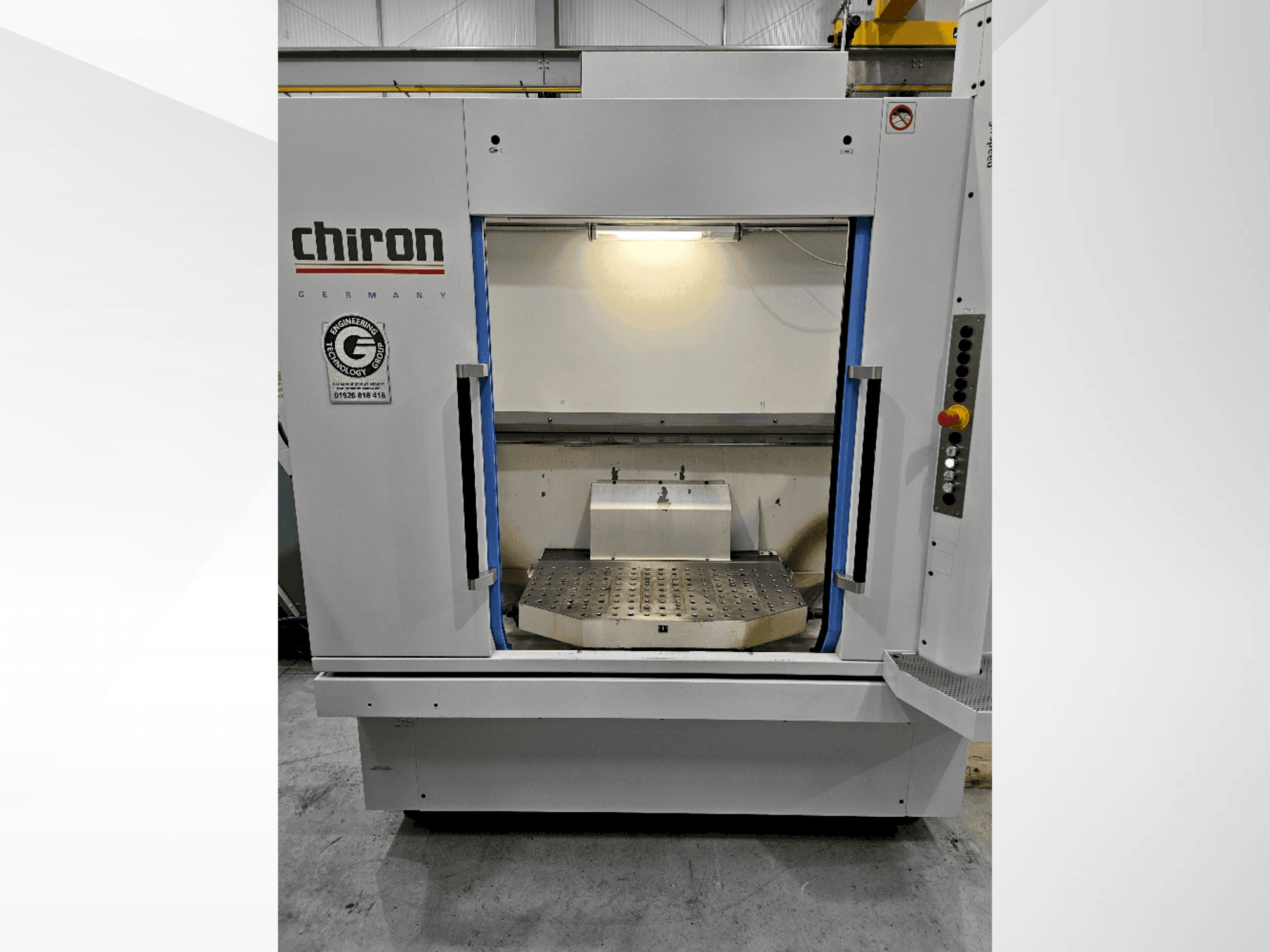

Front view of CHIRON DZ15W MAGNUM HS  machine

CHIRON DZ15W MAGNUM HS

CHIRON - DZ15W MAGNUM HS

2015

155,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This CHIRON DZ15W MAGNUM HS Vertical Machining Centre was manufactured in 2015. It is equipped with a FANUC Series 31i-model B5 control unit, has 4 axes and a 12000 rpm spindle. The machine comes with swarf conveyor, tooling, coolant / paper filtration unit, high pressure coolant and pallet.

Overview

  • brand: CHIRON
  • year: 2015
  • MODEL: DZ15W MAGNUM HS
  • application type: Milling
  • Location: United Kingdom
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: GB-MIL-CHI-2015-00001

Technical Information

General Data

  • Measurements width: 3900 mm
  • Measurements depth: 2700 mm
  • Measurements height: 2300 mm
  • Machine weight: 10500 kg

Control Unit

  • Brand: FANUC
  • Model: Series 31i-model B5

Main drive

  • Spindle speed range: 12000 1/MIN
  • Tool taper: HSK 63

Movement

  • X-AXIS Movement: 630 MM
  • Y-AXIS Movement: 400 MM
  • Z-AXIS Movement: 360 MM

Table

  • Outer length: 660 MM
  • Outer width: 440 MM

    Additional Equipment

    • - Swarf conveyor
    • - tooling
    • - coolant / paper filtration unit
    • - high pressure coolant
    • - pallet changer
    • - glass scales

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Table size: 660 x 440mm (twin pallet)
        • - Spindle speeds 12000rpm / twin spindle
        • - Rapid traverse rates 75m/min
        • - No of stations on auto toolchanger 24 atc on each spindle
        • - Total power hp/kw 30kw
        • - Electrics: 380-440/3/50
      • Qualitative Machine Benefits:
        • - 4 axis, very low hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
