CHIRON FZ 12 S
CHIRON - FZ 12 S
1995
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Chiron FZ 12 S Vertical Machining Center

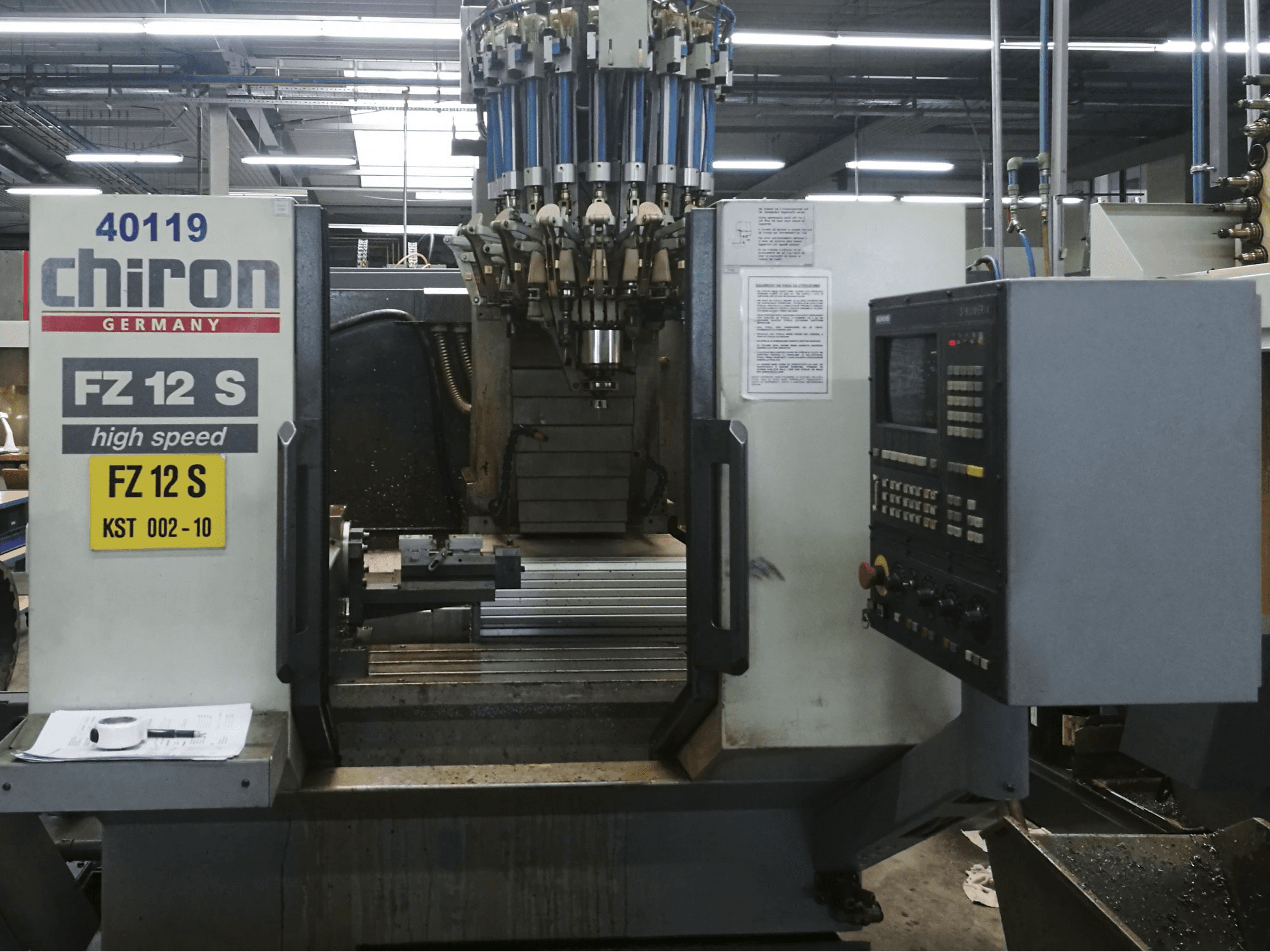

This Chiron FZ 12 S Vertical Machining Center which was manufactured in Germany in 1995 has been operative for 59400 production hours. Equipped with a SIEMENS SINUMERIK 810M Control unit, this regularly maintained and precise machine has mainly worked with aluminium during the past. Several additional facilities, like an automatic tool changer and tool holder, are included in the price.
Overview
- brand: CHIRON
- year: 1995
- MODEL: FZ 12 S
- production hours: 59400
- application type: Milling
- Location: Croatia
- machine type: Machining centers (vertical)
- availability: Sold
- GINDUMAC ID: HR-MIL-CHI-1995-00001
Technical Information
General Data
- Measurements width: 2530 mm
- Measurements depth: 3150 mm
- Measurements height: 2900 mm
- Machine weight: 3300 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 810M
Main drive
- Number of spindles: 1
- Spindle speed range: 10500 1/min
Movement
- X-AXIS Movement: 550 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 425 mm
Table
- Outer length: 950 mm
- Outer width: 360 mm
Media
- Main electronic connection: 400 V
- Power consumption: 13 kVA
- Chip conveyor: Yes
Additional Equipment
- - Automatic Tool Changer with 20 Tool slots
- - 6x Tool holder SK30
- - 4th Axis rotary unit 360°
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
