CHIRON - FZ 12 WDE-MIL-CHI-1995-00002

Name: CHIRON FZ 12 W
Brand: CHIRON
SKU: DE-MIL-CHI-1995-00002
Price: 7500 EUR
Availability: InStock

7,500 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ 12 W For Sale | gindumac.com

Show in original language

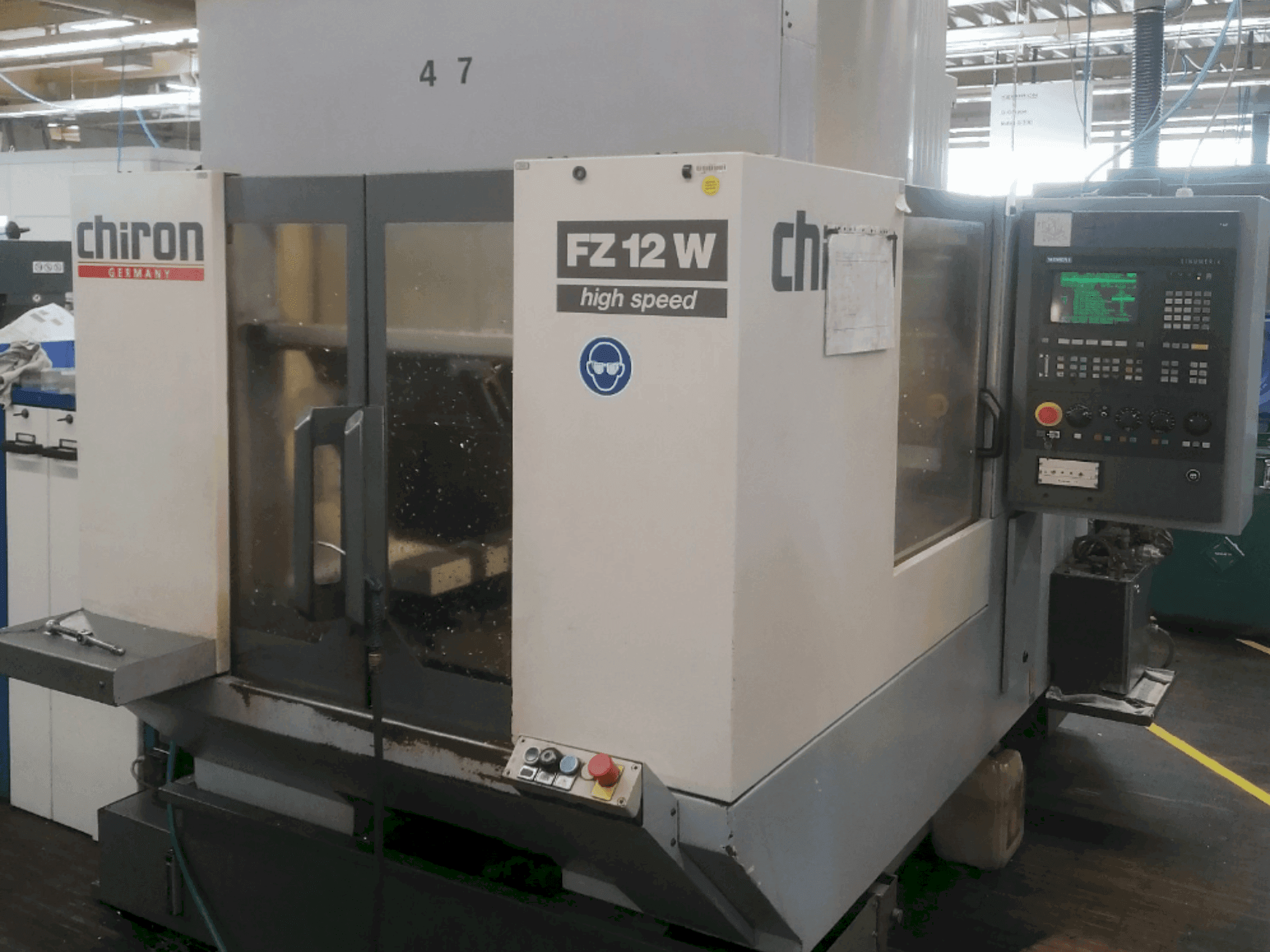

This CHIRON FZ 12 W was manufactured in 1995. A vertical machining center featuring a SK30 spindle mount, maximum spindle speed of 10,000 rpm, and a tool magazine with 12 positions. It includes a Sinumerik 810D control system and rapid traverse rates up to 40 m/min. Table size measures 660 x 350 mm. Consider the opportunity to buy this CHIRON FZ 12 W vertical machining center. Contact us for more information.

Overview

brand: CHIRON
year: 1995
MODEL: FZ 12 W
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W

Control Unit

Brand: SIEMENS
Model: Sinumerik 810D

Main drive

Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 95 kW
Number of axis: 2

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Control voltage: 230v / 24v
Power supply: 3x 400v, 50/60 hz
Rated power: 16 kva
Rated current: 34a
Rapid traverse (xyz): up to 40 m/min
Table size: 660 x 350 mm
Tool magazine: 12 positions
Tool changeover time: approx. 2 seconds

Extra Information

When milling with an 80 mm diameter cutter, slight noise was audible in the spindle area.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
