CHIRON - FZ 12 WDE-MIL-CHI-2003-00001

Name: CHIRON FZ 12 W
Brand: CHIRON
SKU: DE-MIL-CHI-2003-00001
Price: 10000 EUR
Availability: InStock

10,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ 12 W For Sale | gindumac.com

Show in original language

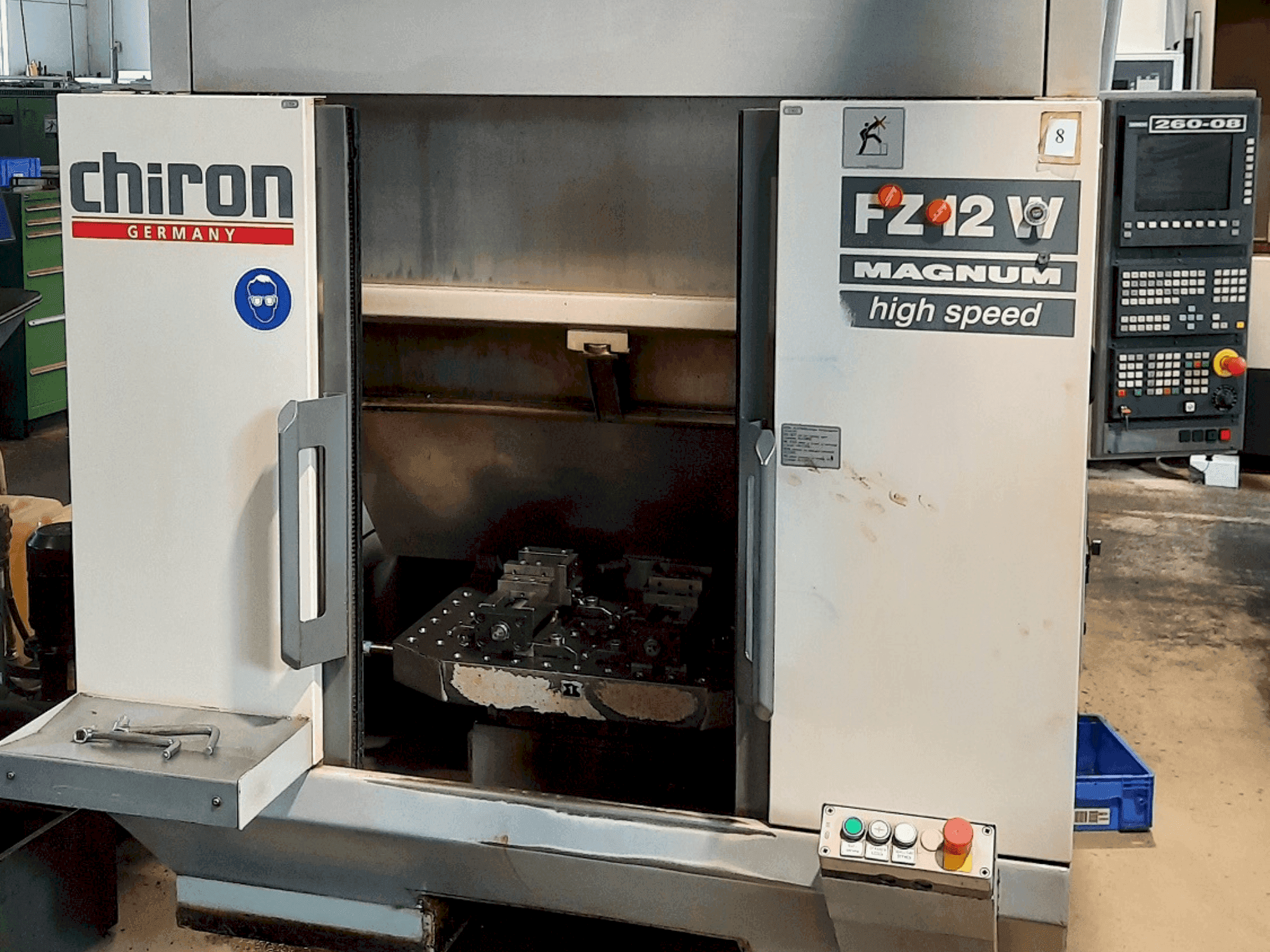

This 3-axis CHIRON FZ 12 W was manufactured in 2003. It features a reinforced spindle drive with 10 kW at 100% and 18 kW at 25%, achieving speeds of 20-10,500 rpm. The machine includes a 20-tool automatic changer and a travel path of x=550, y=300, z=425 mm. It operates with a Sinumerik 840 D control system and has a chip container capacity of 125 liters. For more information about this machine, please reach out to us.

Overview

brand: CHIRON
year: 2003
MODEL: FZ 12 W
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 20-10500 rpm 1/MIN
Spindle motor power: 10 kW
Number of axis: 3

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 425 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Reinforced spindle drive
- - Nc memory expansion: 512 kb up to 1. 5 mb
- - Chip container capacity: 125 liters
- - Pump output: 150 liters/min at 1. 3 bar
- - Automatic tool changer: 20 tools; din 69871
- - Special features: operating hours and workpiece counter on the screen
- - Feed drive: ac motor; 40 m/min
- - Torque: 140 nm

Extra information

- Machine preparation for internal polarity Raised splash guard Control cabinet cooler as door-mounted device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
