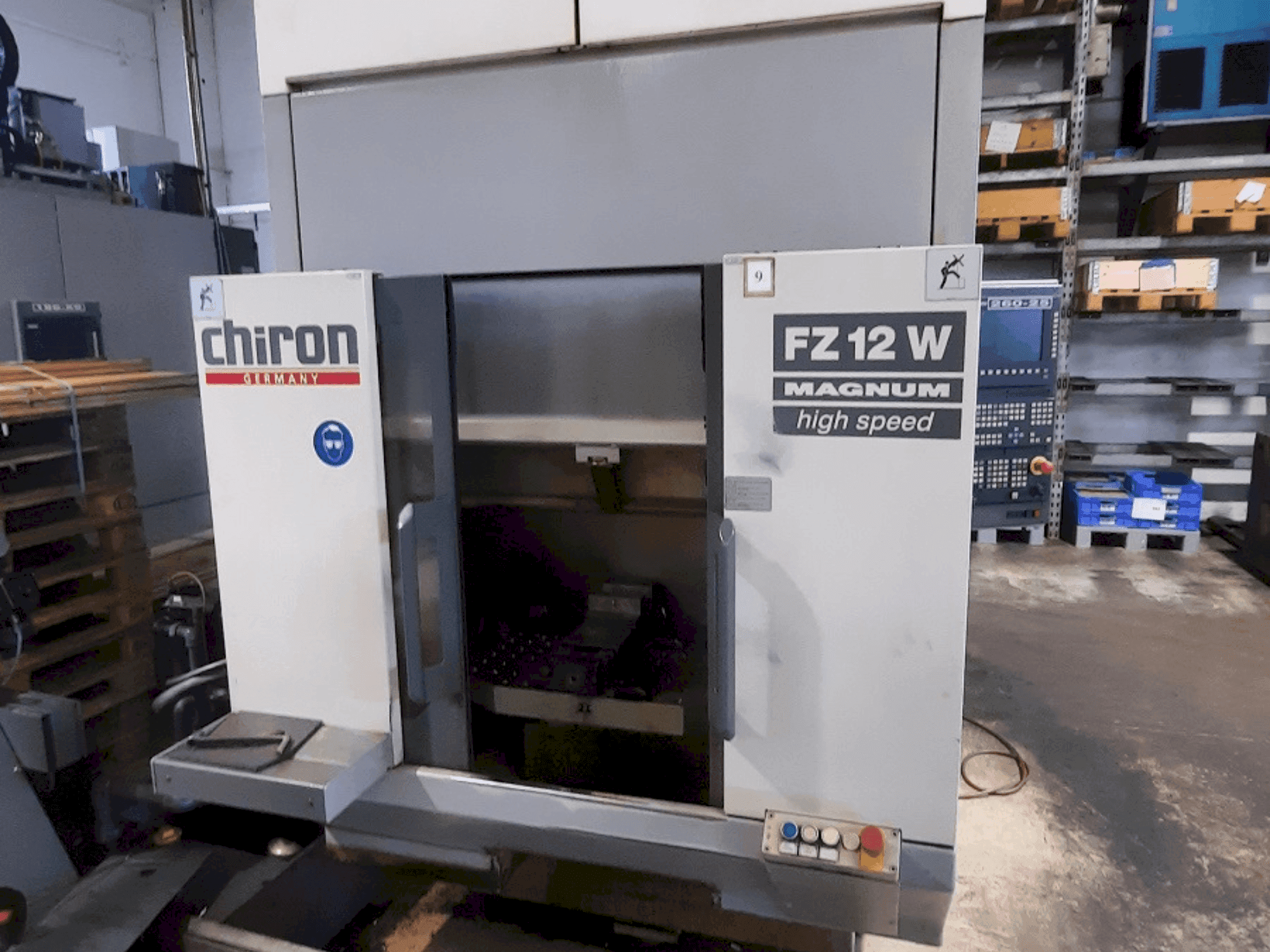

This 3-axis CHIRON FZ 12 W was manufactured in 2004, featuring a robust AC spindle motor with a speed range of 20 - 10,500 rpm and a rapid traverse speed of 40 m/min. It includes a high-capacity automatic tool changer with 20 positions and a dual clamping surface for efficient multitasking. Equipped with Siemens CNC 840D control for precise and versatile machining operations. If you are looking to get high-quality milling capabilities consider the CHIRON FZ 12 W machine we have for sale. Contact us for more information.
Overview
- brand: CHIRON
- year: 2004
- MODEL: FZ 12 W
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON FZ 12 W
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 3
- X-axis Travel: 550 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 425 mm
Technical Specification
- Max. Tool Weight: 2.5 kg
- Spindle Power: 5 kW
- Spindle Speed: 10500 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
Motor type: ac motor
Main spindle drive: 5. 0 kw at 100% duty cycle, 9. 5 kw at 25% duty cycle
Rapid traverse speed: 40 m/min
Automatic tool changer: 20 tool positions
Tool shank: steep taper 40 din 69871 + 72
Max tool diameter with free adjacent positions: 150 mm
Tool change time: approx. 0. 9 s to 2. 4 s (control-dependent)
Ac servo motor: indirect, absolute position measuring system
Very little use, around 8,000 operating hours
Vise included
Extra Information
Specific details about extra equipment, machine history, benefits, or additional information were not provided. Control Unit Control System: CNC 840D Display: 10.4" TFT color screen / full keyboard OP032S NC Memory: 256 KB for up to 200 programs Interface: Universal RS 232C interface (2x V24) Controller Features: Drilling cycles G81-G89, Circular interpolation, Program restart, Subroutine technology, Simultaneous programming, Contour train programming, Cycle support, Polar coordinates, Geometry and wear compensation, Mirroring, Scale factor, Software limit switches, NC and Machine diagnostics, Power display, Metric or inch dimensions. Workpiece Workpiece Change Device: 0/180° Clamping Surface: 2 x 660 x 350 mm with thread and bore pattern Maximum Load per Side: 100 kg (150 kg) Maximum Weight Difference: 100 kg Workpiece Change Time: Approx. 2.9 s
