- ➤ Used CHIRON FZ 15FX For Sale | gindumac.com

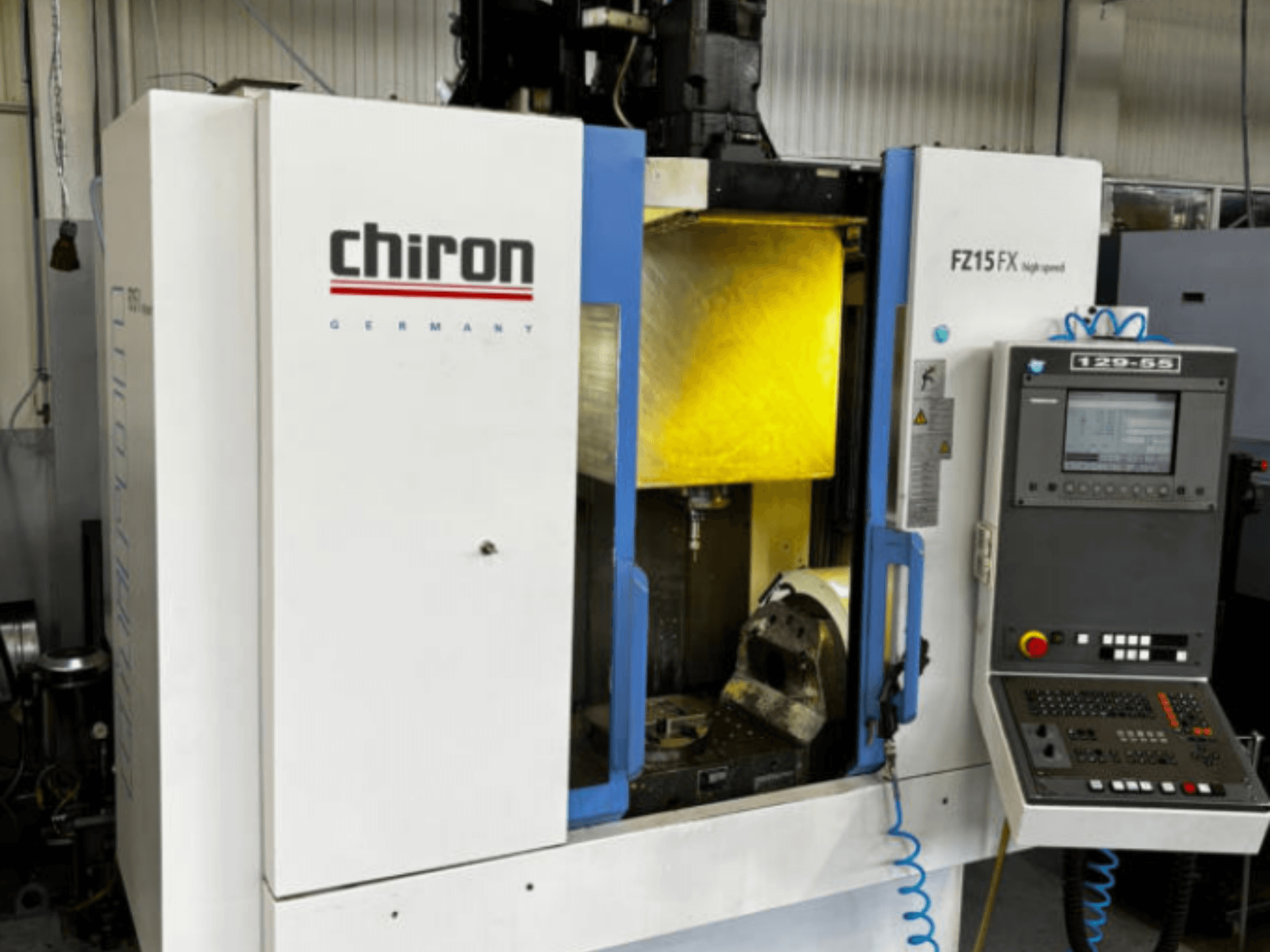

This 5-axis CHIRON FZ 15FX was manufactured in 2002. It features a spindle speed of 12,000 rpm and a 48-station tool magazine for efficient operation. The machine is equipped with a Peiseler rotary table and an internal through-spindle cooling system, ensuring optimal performance. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 15FX vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: CHIRON
- year: 2002
- MODEL: FZ 15FX
- production hours: 76130
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- Available from: 03/12/2026
- control unit brand: HEIDENHAIN
Technical Information - CHIRON FZ 15FX
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 426
Dimensions
- Machine Weight: 5700 kg
Movement
- Number of Axes: 5
- X-axis Travel: 730 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Through-spindle Coolant: Yes
- Tool Stations: 48
Additional Information
- Kinematics: 5-axis (3+2 axes configuration)
- Table System: Peiseler rotary table equipped with LANG clamping system
- Cooling System: Internal through-spindle cooling system
- Chip Management: Chip conveyor
- Workpiece Measuring: Renishaw probe
- Manual Operation: Operator's handwheel
- Working Voltage: 400 V
- Control Voltage: 230/24 V
- Frequency: 50/60 Hz
- Current Type: 3/N/PE ~
- Rated Current: 67 A
- Rating/Power: 47 kVA
- Fuse Protection: 80 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
