CHIRON FZ 22 S

Photo Gallery

Video gallery

SOLD

CHIRON - FZ 22 S

1996

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

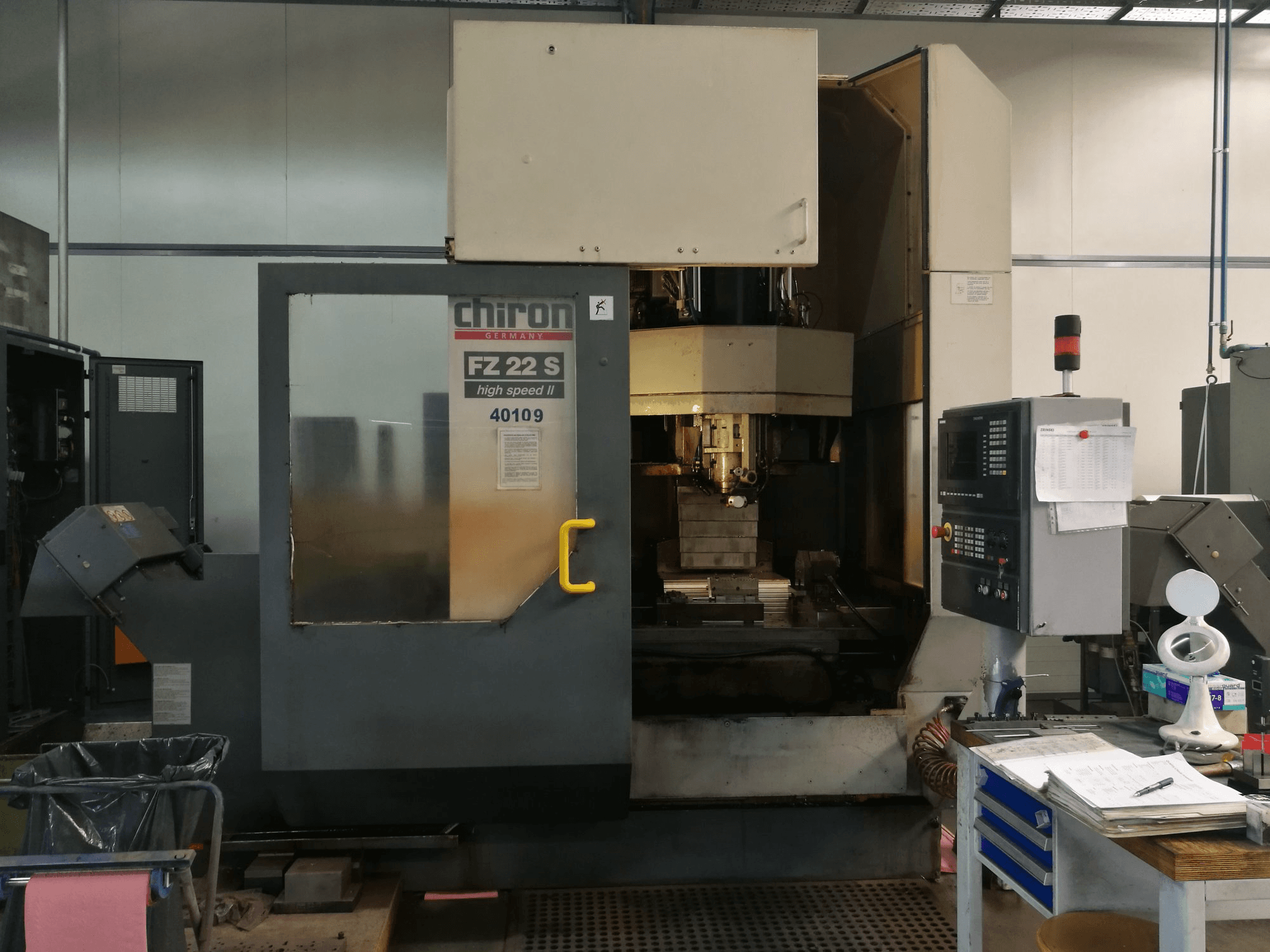

Chiron FZ 22 S Vertical Machining Center

Show in original language

This Chiron FZ 22 S Vertical Machining Center from 1996 was fabricated in Germany and has been operative for 59400 production hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine has mainly worked with titanium and stainless steel during the past.

Overview

brand: CHIRON
year: 1996
MODEL: FZ 22 S
production hours: 59400
application type: Milling
Location: Croatia
machine type: Machining centers (vertical)
availability: Sold
control unit brand: SIEMENS
GINDUMAC ID: HR-MIL-CHI-1996-00001

Technical Information

General Data

Measurements width: 3550 mm
Measurements depth: 3460 mm
Measurements height: 3400 mm
Machine weight: 8000 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Number of spindles: 1
Spindle speed range: 10500 1/min

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 1150 mm
Outer width: 460 mm

Media

Main electronic connection: 400 V
Pump drive power: 36 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Automatic Tool Changer with 36 tool slots HSK63
- 4th Axis rotary unit 360°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
