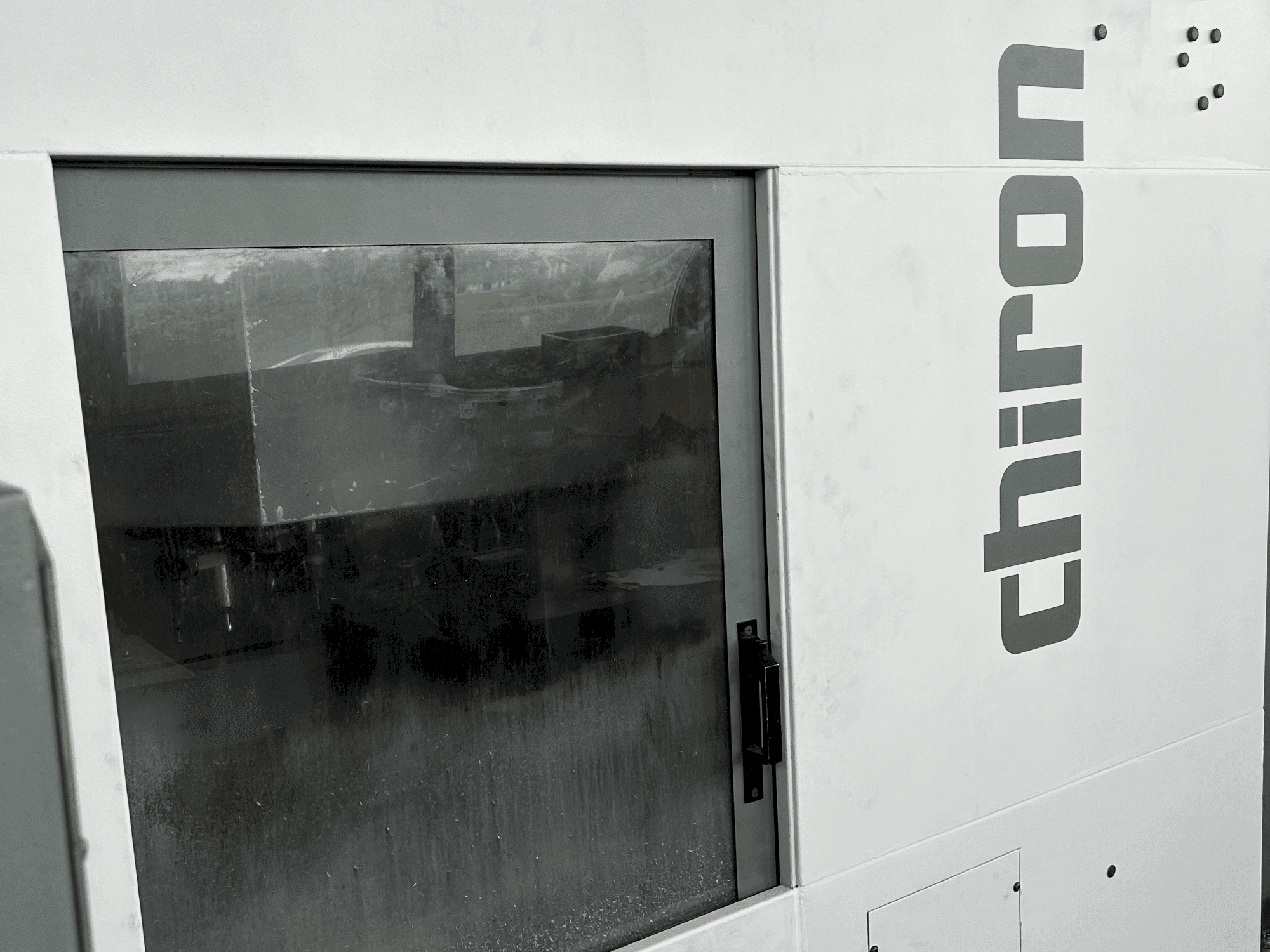

This 3-axis CHIRON FZ18W vertical machining center was manufactured in 1990. It features a SIEMENS SINUMERIK 810M control system, a spindle with a 70mm diameter in front bearing, and a SK40 tool holder. The machine has a rotary table diameter of 1050mm and can handle a maximum workpiece weight of 200 kg. If you are looking to get high-quality milling capabilities, consider the CHIRON FZ18W machine we have for sale. Contact us for more information about this machine.
Overview
- brand: CHIRON
- year: 1990
- MODEL: FZ18W
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - CHIRON FZ18W
General Data
- Measurements width: 1800 MM
- Measurements depth: 2800 MM
- Measurements height: 2900 MM
- Machine weight: 3600 KG
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 810M
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 550 mm
- Y-AXIS Movement: 300 mm
- Z-AXIS Movement: 425 mm
Workpiece
- Workpiece weight: 2 x 100 kg
Tools
- Type of tool holder: SK40
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Rotary table diameter: 1050 mm
- - Clamping surface: length 950 mm x width 660 mm
- - Table height above floor: approx. 900 mm
- - Spindle diameter in front bearing: 70 mm
- - Spindle arrangement: vertical
- - Max. Torque: 60 nm
- - Total connected load: approx. 25 kva
- - Voltage: 380 v
- Qualitative Machine Benefits:
- - Geometry was overhauled 2 years ago and official protocol is available
- - Machine is particularly suitable for centring, drilling, reaming, threading, milling, spindling
- - A service module has been added to the control system from the last operation to enable diagnostics and data to and from the machine via the network
- - Documents such as all circuit diagrams are provided
- - Training documents are provided
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
