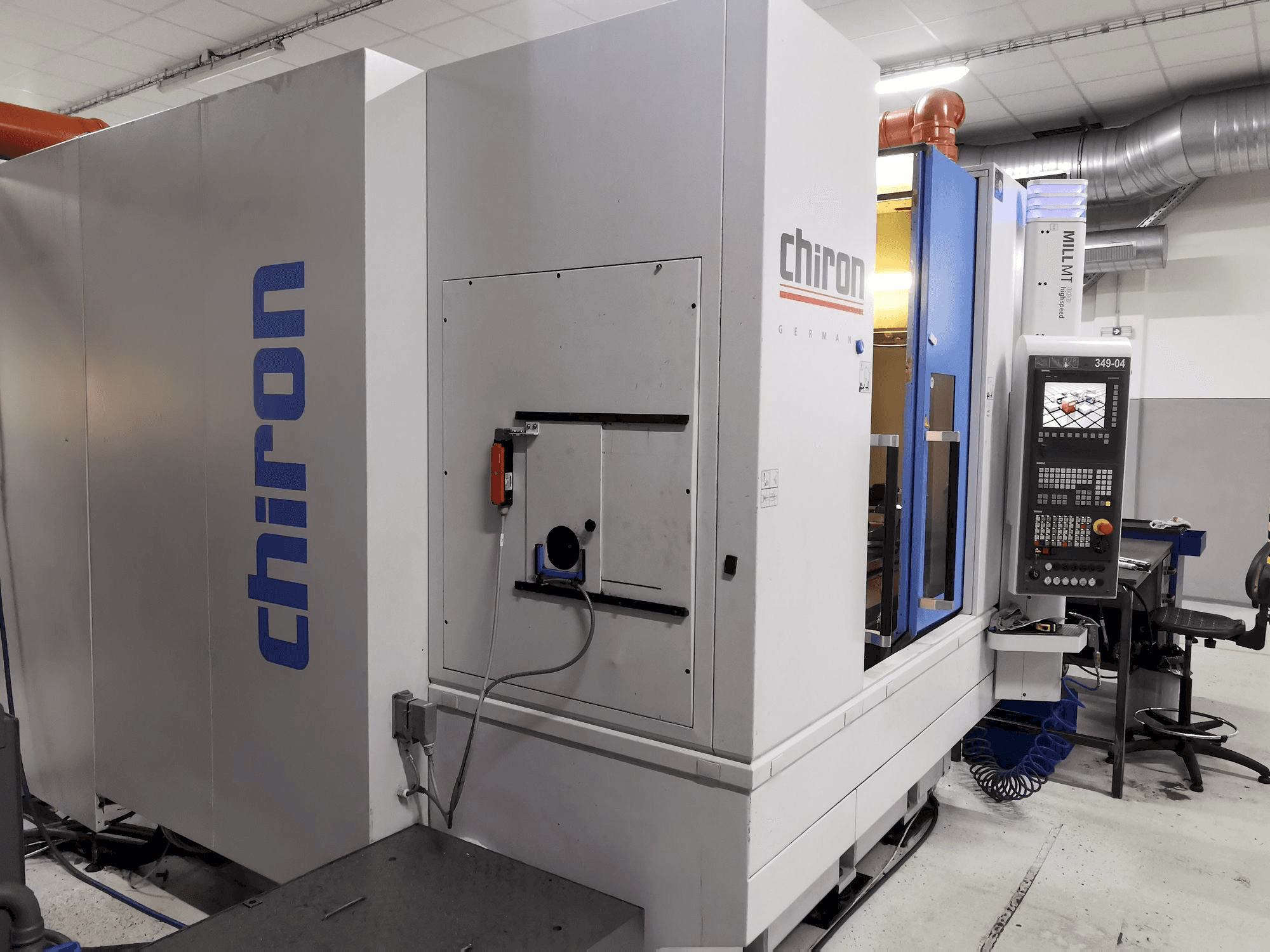

➤ Used CHIRON MILL 800 | Vertical Machining Center

Show in original language

This CHIRON MILL 800 Vertical Machining center was manufactured in the year 2015 in Germany. It is equipped with a SIEMENS SINUMERIK control unit and has 5 axis.

Overview

brand: CHIRON
year: 2015
MODEL: MILL 800
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON MILL 800

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840D

Dimensions

Machine Weight: 8500 kg
Table Length: 800 mm
Table Load: 600 kg
Table Width: 500 mm

Movement

Number of Axes: 5

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Bar loader ILS-RBK- 10012 100 min/max 5/100 mm L= 600-1200 mm
Spare part: 12 000 rpm Kessler spindle (new repair with protocol).
Collet SK100 40x80 mm smooth 1 pc
Collet SK100 BZG D60 - Smooth 2 pcs
Collet SK100 BZ, 50x35 notched 2 pcs
Collet SK100 D32 smooth 1 pc
Collet SK100 BZ D65 Notched 2pcs
Collet SK100 BZG ADAPTER 100 RD 1 pc
Workpiece probe Renishaw 1pc

Machine Benefits

Qualitative Machine Benefits

Cnc controlled clamping/rotating unit for 6th face machining
Pressurised linear encoders
Swarf conveyor
Renishaw-ready
2022 - milling spindel retrofitted

Technical Machine Benefits

Rapid feedrate 60 m/min
Swivelling head cnc controlled (b axis) +/- 100° degrees
Spindle torque140 nm
Tool changer 60 positions
Tool-change time 1,5 sec // taper type hsk-a 63
Tool-change time 1,5 sec
Coolant through spindle 40 bar
Max turning dia 65mm // turning spindle rpm: 15. 000
Hydraulic clamping 800 nm.
Turning weight 7500 kgs

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
