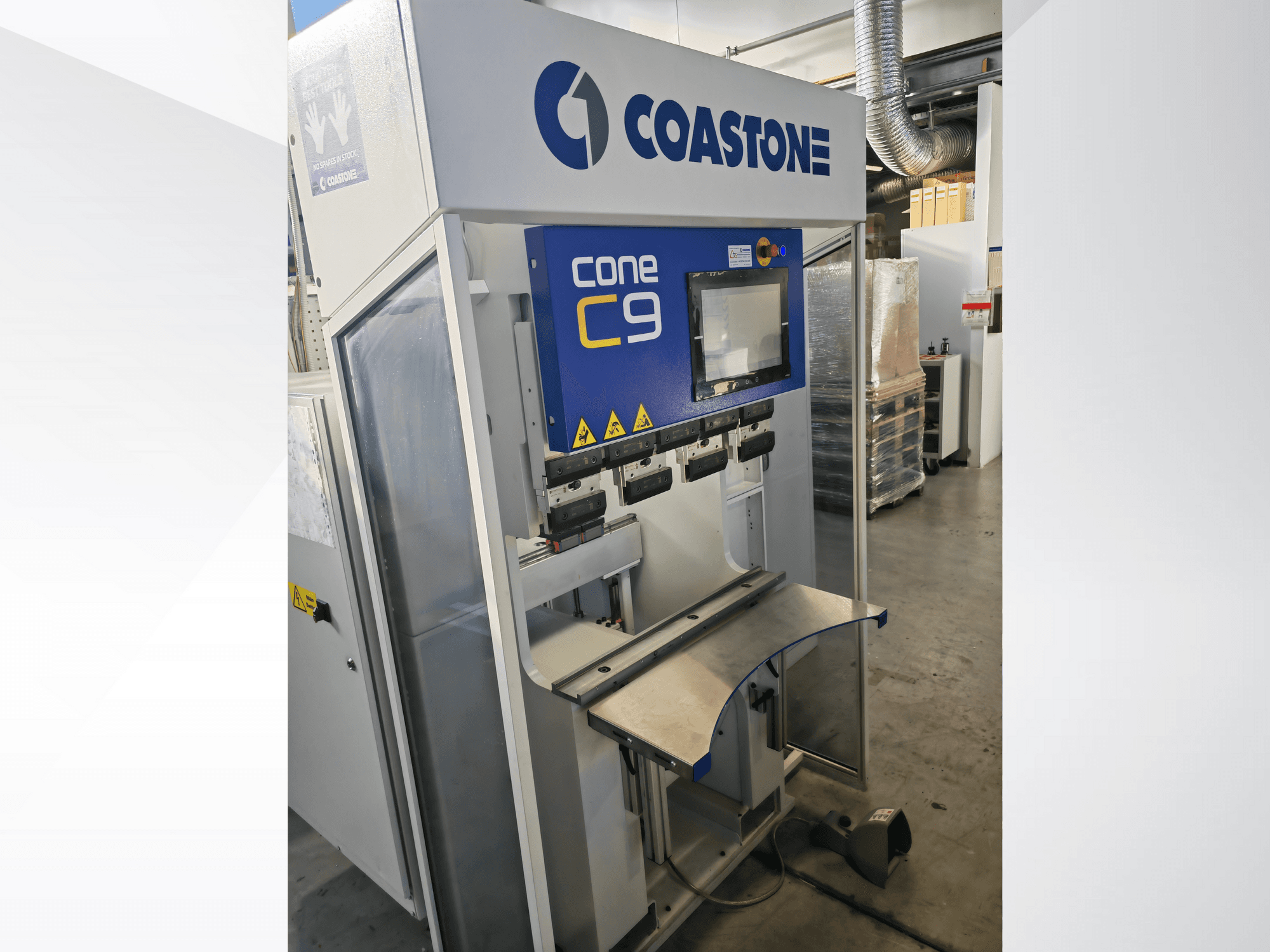

COASTONE - cone c9SI-BEN-COA-2023-00001

• Delivery/warranty: Delivered 24 Aug 2023; 36-month warranty (valid until approx. 24 Aug 2026)

• Condition: Very lightly used, excellent working condition

• Frame type: C-frame

• Number of spindles: 1

• Maximum bending length: 900 mm

• Frame opening width: 790 mm

• Throat depth: 150 mm

• Max./min. installation height: 500 mm / 250 mm

• Y-axis:

  • Stroke: 380 mm

  • Bending speed: 10 mm/s

  • Downward speed: 100 mm/s

  • Return speed: 100 mm/s

  • Repeatability: ±0.002 mm

• X-axis:

  • Stroke: 400 mm

  • Speed: 500 mm/s

  • Repeatability: ±0.025 mm

• R-axis:

  • Stroke: 135 mm

  • Speed: 100 mm/s

  • Repeatability: ±0.05 mm

• Electrical connection: 400 V / 3x16 A

• Motor power: 5 kW

• CNC control: Omron Touchscreen TC15-2D

• Tool clamping system: Amada Promecam – Type A

Additional equipment

• Complete bending tool set

• Tool cabinet

• Other additional accessories (as provided by the owner)
