➤ Used Coord3 ARES NT-L 10.7.5 CNC For Sale | gindumac.com

Show in original language

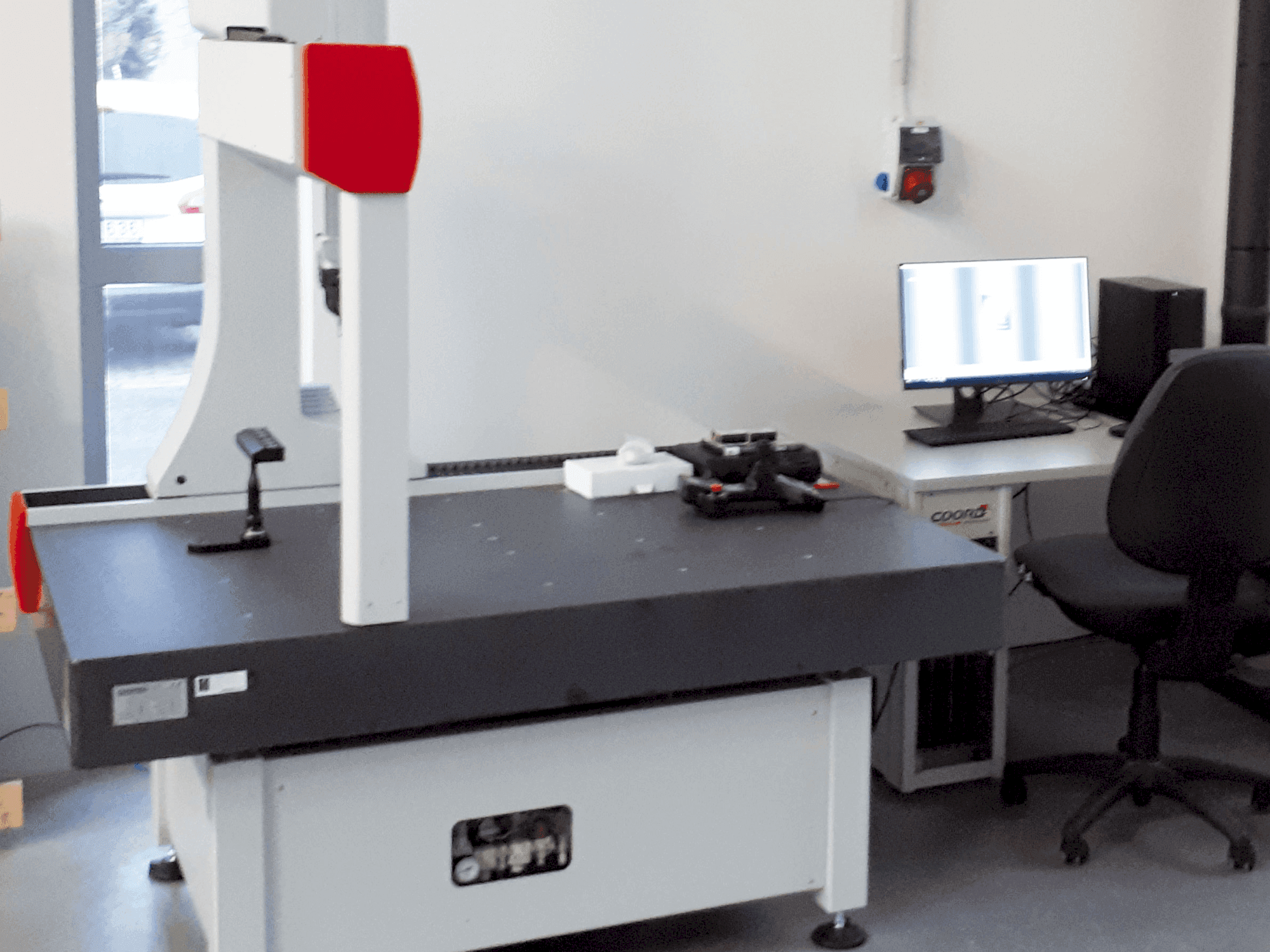

This 3-axis Coord3 ARES NT-L 10.7.5 CNC was manufactured in 2018. It features a high-precision RENISHAW PH20 motorized indexing probe head, RENISHAW UCC controller, and a robust aluminum alloy frame. The machine includes a black granite worktable with threaded holes for secure workpiece fixation. Ideal for detailed 3D measurements with a maximum speed of 500 mm/sec and acceleration of 1700 mm/sec². Contact us for further details regarding this machine.

Overview

brand: Coord3
year: 2018
MODEL: ARES NT-L 10.7.5 CNC
application type: Measuring
Location: Hungary
machine type: Coordinate Measuring Machine (CMM)

Technical Information - Coord3 ARES NT-L 10.7.5 CNC

Movement

Number of Axes: 3

Additional Information

Additional equipment

Air-cooled drying system
CE compliance certification
Equipped with an air filter and regulator system
High-precision RSF optical scales and sensors

Machine Benefits

Technical Machine Benefits

Air cushion bearings for structure support and increased measurement accuracy
Pneumatic counterbalance for the vertical probe holder
Automatic fall protection for head in case of air outage
All geometric and measurement checks executed under stable temperature conditions (20°c) as per iso 10360/2 standards
Resolution: 0. 0001 mm
Measurement accuracy: iso 10360/2 mpee = 2. 1 + 3. 0l/1000 μm
Maximum speed in 3d measurement: 500 mm/sec
Acceleration in 3d measurement: 1700 mm/sec²

Extra Information

Control Unit RENISHAW UCC controller kit TouchDMIS measurement software DELL AIO computer with 24” LCD TouchScreen monitor Tools RENISHAW PH20 motorized probe head 3 RENISHAW TP20 magnetic probe modules RENISHAW TCR20 probe changer RENISHAW 23-piece stylus kit 25 mm diameter ceramic calibration sphere with certification Mount Position (Assembly) Machine frame made from aluminum alloy Slide surfaces hardened with a special process Black granite worktable with high wear resistance and threaded holes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
