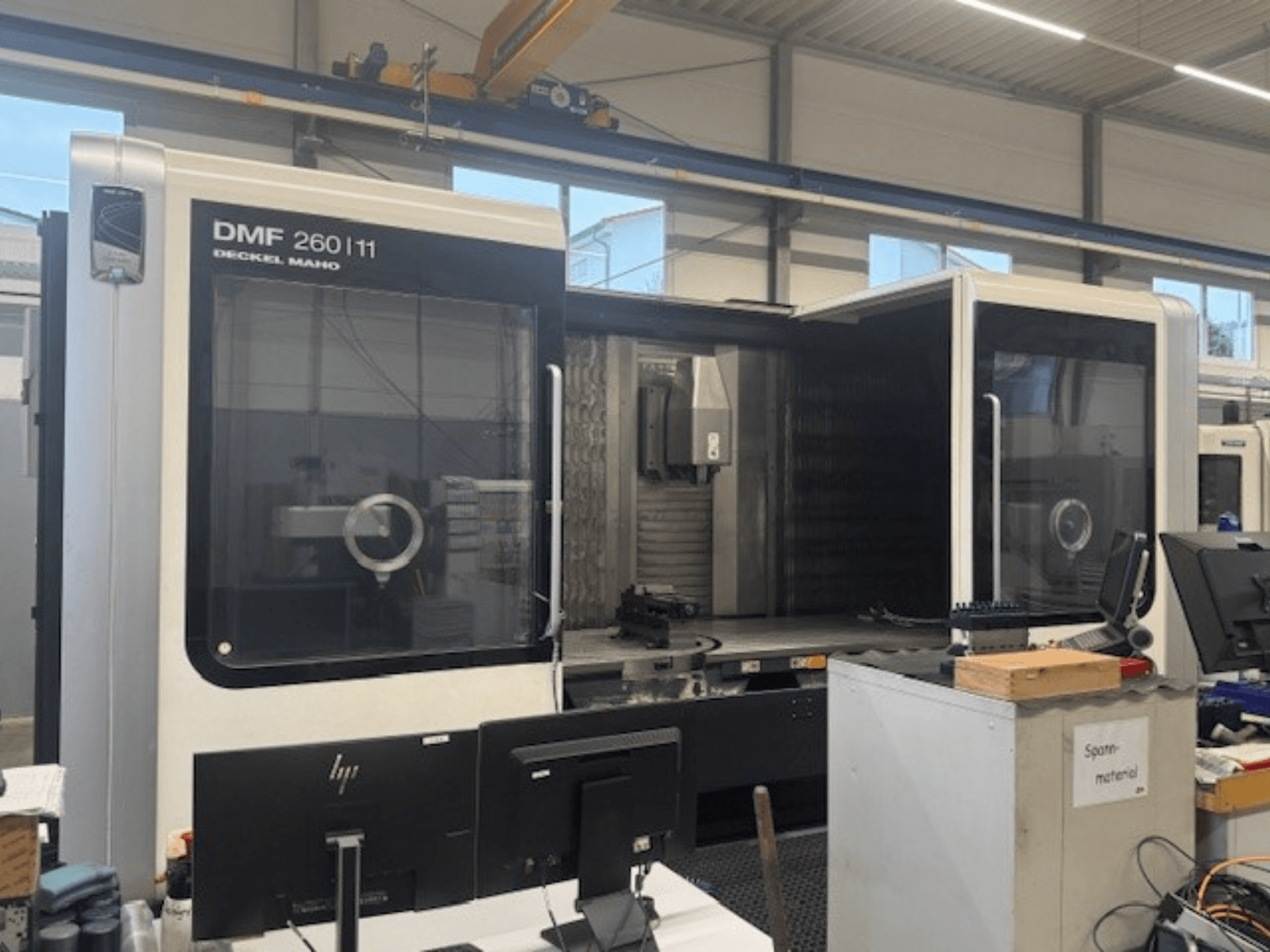

DECKEL MAHO - DMF 260/11DE-MIL-DEC-2014-00001

• Control interface: Heidenhain Smart.NC ERGOline, 19" screen

• Rapid traverse: 40 m/min; Acceleration: 4 m/s²

• Main spindle: Vertical motor spindle power 23 / 5 / 13.5 kW (25 / 100% ED)

• Tool magazine: 30 tools; chain magazine with double gripper; chip-to-chip 9 s

• Table: 3200 x 1100 mm

• Rotary table integrated: 1050 mm diameter

• Clamping: Hydraulic

• Measuring system: Direct measuring systems

• Machine design: Full enclosure with coolant tank; 2 rotating viewing windows

• Air supply: Sealing air for linear measuring systems

• Through-spindle air: Selectable via M-function

• Operating mode: Process monitoring in production

• Language: German / English screen texts

• Workpiece clamping release: Automatic mode enable

• Condition/Service history:

  • New spindle and new guideways, completely renewed by DMG (January 2026)

  • Geometry remeasured and adjusted by DMG (January 2026)

  • New spindle less than 100 hours

Additional equipment

• Chip conveyor: Scraper belt type

• Touch probe: Heidenhain TS 649 infrared measuring probe

• Tool measurement: Blum laser tool measurement system

• Kinematic calibration: 3D quickSET

• Machine protection: MPC Machine Protection Control

• Internal coolant supply: 40 bar / 600 l with paper band filter

• Coolant/mist extraction: Oil and emulsion mist extraction system; extraction capacity 2 x 1600 m³/h

• Electronic handwheel

• Coolant flushing gun (included)
