- ➤ Used DECKEL MAHO DMU 50 T For Sale | gindumac.com

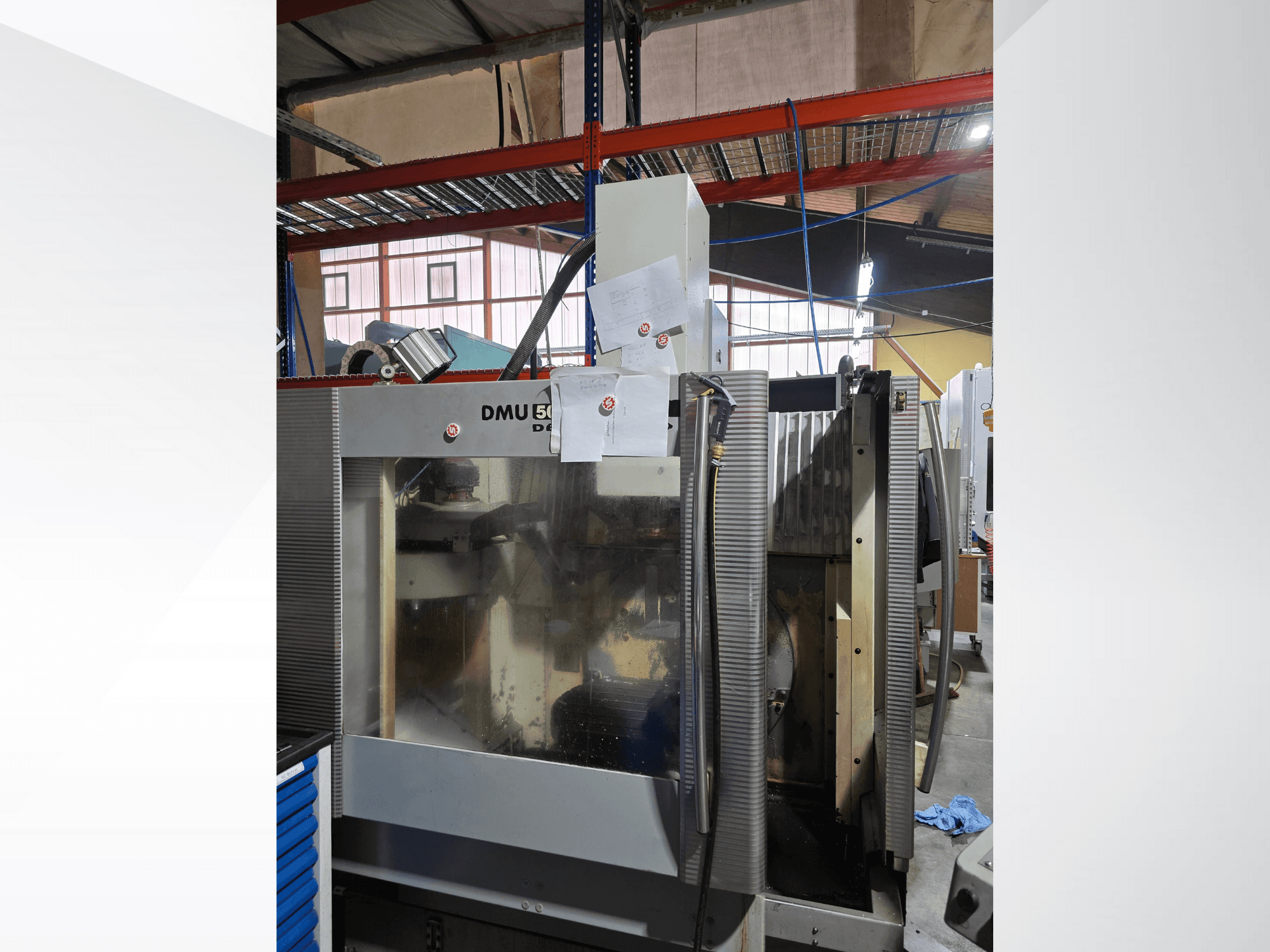

This 5-axis DECKEL MAHO DMU 50 T was manufactured in 2001. It features a manual rotary table with a clamping surface of 700 x 500 mm and a maximum load of 200 kg. The spindle speed reaches up to 9,000 rpm, and the machine includes a tool changer with 16 magazine slots. Dimensions are 1,783 x 1,647 x 2,534 mm, weighing 3,000 kg. Consider the opportunity to buy this DECKEL MAHO DMU 50 T vertical machining centre. Contact us for more information.
Overview
- brand: DECKEL MAHO
- year: 2001
- MODEL: DMU 50 T
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMU 50 T
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 426
Dimensions
- Machine Depth: 1647 mm
- Machine Height: 2534 mm
- Machine Length: 1783 mm
- Machine Weight: 3000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Additional Information
Rotation: 360°
Swivel: -10°/+95°
Spindle Speed: 9000 rpm
Power (100%/40%): 9/13 kW
Tool Holder: SK 40 DIN 69871
Feed Rate X, Y, Z: 10000 mm/min
Rapid Traverse X/Y/Z: 12 m/min
Manual rotary table with swiveling axis
Clamping Surface: 700 x 500 mm
Maximum Load: 200 kg
Slot Spacing/Width: 63 mm / 14 H7
Magazine Slots: 16
Maximum Tool Length: 290 mm
Maximum Tool Weight: 6 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
