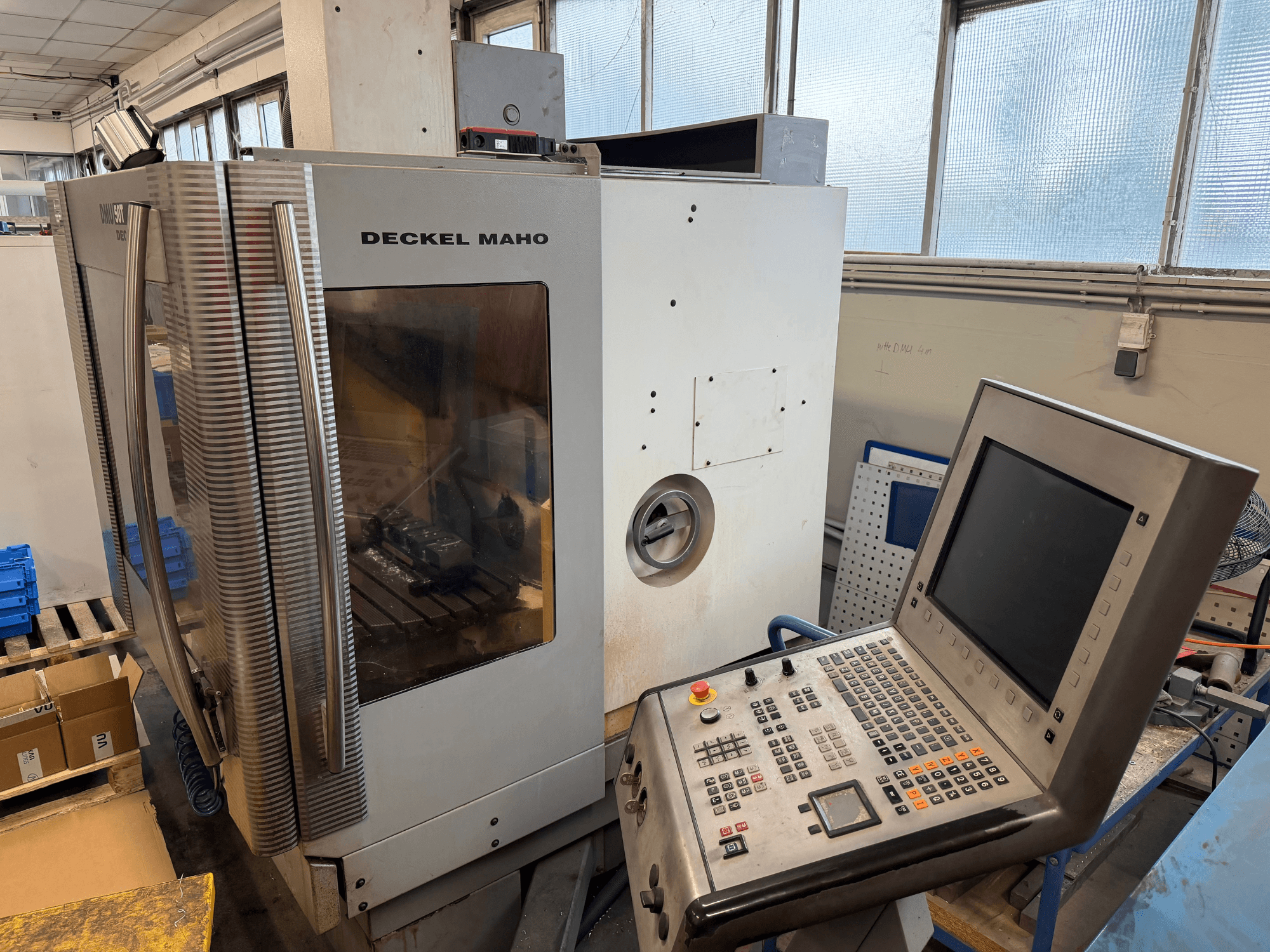

This 5-axis DECKEL MAHO DMU 50T was manufactured in 2003. It features a 3+2 axis setup with CNC-driven linear axes and a manual swivelling rotary table for enhanced versatility. The machine comes equipped with tools and an attached tool list holder for convenience. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMU 50T universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2003
- MODEL: DMU 50T
- production hours: 13028
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMU 50T
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Height: 2140 mm
- Machine Length: 2000 mm
- Machine Weight: 3000 kg
- Machine Width: 1520 mm
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 13 kW
- Spindle Speed: 9000 RPM
- Taper Size: SK 40
- Tool Stations: 16
Additional Information
- Main Drive Speed Range: 20 - 9,000 rpm (infinitely variable)
- Main Drive Power (100% ED): 9 kW
- Main Drive Power (40% ED): 13 kW
- Tool Holder: SK 40 DIN 69871
- Pull Stud: DIN 69872 or ISO 7388/2 Type A
- Tool Changer Magazine Capacity: 16 pockets
- Max. Tool Diameter: 80 mm (130 mm with free neighboring pockets)
- Max. Tool Length from Spindle Nose: 290 mm
- Max. Tool Weight (Automatic Change): 6 kg
- Max. Total Tool Weight in Magazine: 80 kg
- Rigid Table Clamping Surface: 700 x 500 mm
- Table Swivel Range (B-Axis): +95° / -10°
- Table Rotary Range (C-Axis): 360°
- Max. Permissible Table Load: 200 kg
- Feed Rate (X, Y, Z): Infinitely variable up to 10,000 mm/min
- Rapid Traverse (X, Y, Z): 12 m/min
- Input Resolution (X, Y, Z): 0.001 mm
- Position Tolerance (X, Y, Z): 0.010 mm
- Operating Voltage: 400 V AC (+6% / -10%), 3N/PE, 50/60 Hz
- Power Consumption (100% ED): 17 kVA
- Nominal Current (100% ED): 28 A
- Recommended Network Fuse: 35 A
- Pneumatic Supply Pressure: 5.5 - 8.0 bar
- Compressed Air Consumption (without Blast Air): 7 m³/h
- Compressed Air Consumption (with Tool Blast Air): 20 m³/h
- Max. Setup Weight (Machine + Workpiece + Tools + Coolant): approx. 3,400 kg
- Included Equipment: Electronic handwheel HR 410 (Optional), central lubrication system, coolant unit, tool list holder on enclosure wall
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
