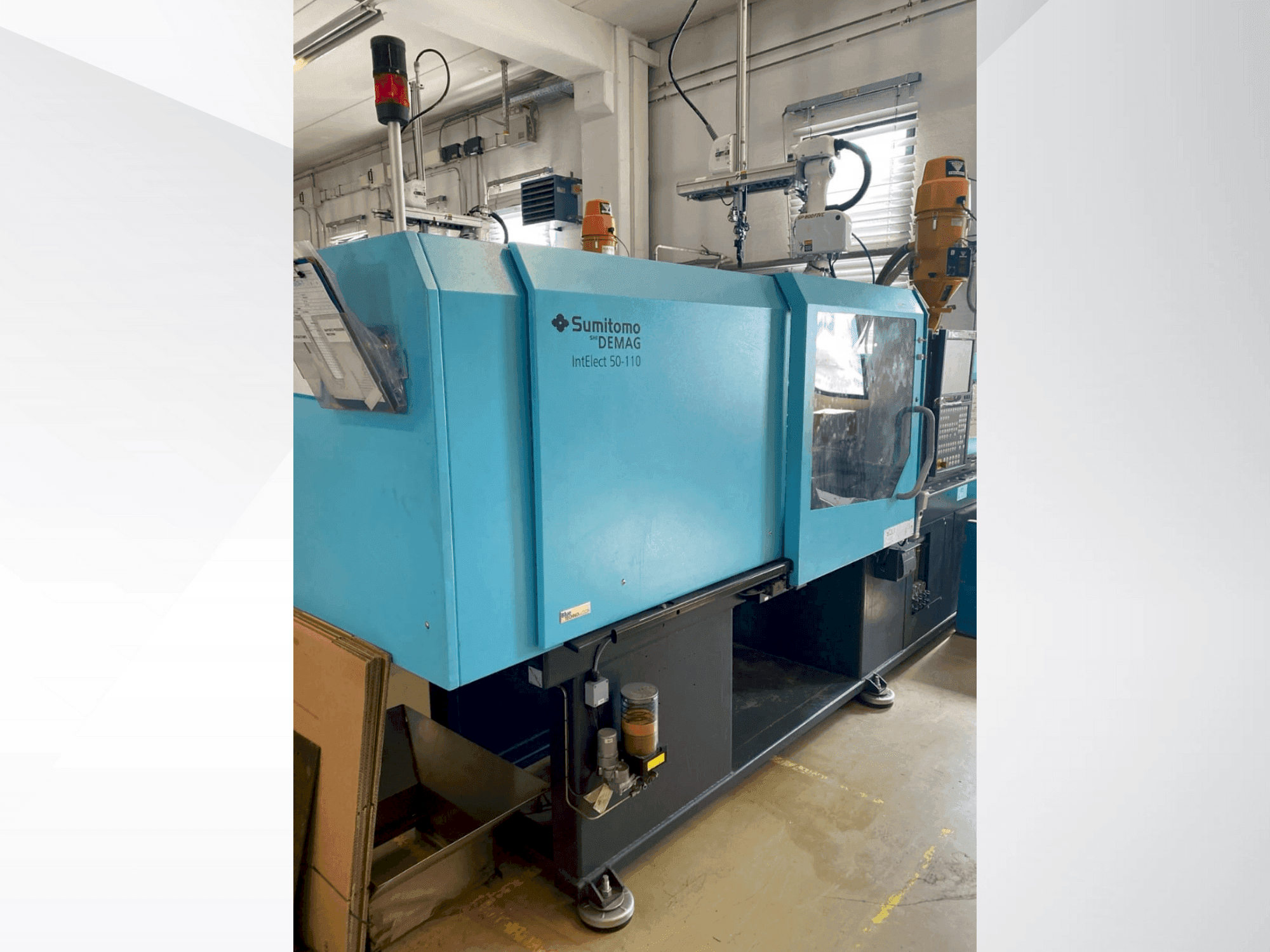

Front view of DEMAG IntElect 50/370-110 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DEMAG IntElect 50/370-110

Photo Gallery

DEMAG - IntElect 50/370-110CH-INJ-DEM-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used DEMAG IntElect 50/370-110 For Sale | gindumac.com

Show in original language

This DEMAG IntElect 50/370-110 was manufactured in 2017. A robust hydraulic injection moulding machine, it features a clamping force of 500 kN and a screw diameter of 25 mm. It supports a maximum shot volume of 52 cm³ and a shot weight of 46 g. Dimensions are 4308 mm in length, 1264 mm in width, and 1779 mm in height. Consider the DEMAG IntElect 50/370-110 machine we have for sale. Contact us for further details regarding this hydraulic injection moulding machine.

Overview

brand: DEMAG
year: 2017
MODEL: IntElect 50/370-110
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - DEMAG IntElect 50/370-110

General Data

Measurements width: 1264 mm
Measurements depth: 4308 mm
Measurements height: 1779 mm
Machine weight: 4200 kg

Injection Unit

Screw diameter: 25 mm
Shot weight: 46 g
Stroke volume: 52 cm³
Injection pressure: 2180 bar
Heating capacity: 5.7 kW
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 500 kN
Opening stroke: 300 mm
Max open daylight: 710 mm
Distance between bars: 370 x 370 mm
Mould height min: 200 mm
Mould height max: 410 mm
Size of mold platens: 520 x 570 mm
Ejector stroke: 90 mm
Ejector force for / back: 25 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Operating hours: 26683 h

Extra information

- Clamping unit: Holding force: 550 kN Maximum mold weight: 780 kg Maximum mold weight on moving platen: 500 kg Maximum retraction force: 25 kN Dry cycle stroke: 1.1 – 259 s/mm Core pull: 0 units Injection unit: Screw L/D ratio: 20 Maximum nozzle stroke: 350 mm Nozzle immersion depth (SVO): 20 mm Material hopper capacity: 35 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
