DEMAG - SYSTEC 80/420-310 DE-INJ-DEM-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used DEMAG SYSTEC 80/420-310 For Sale | gindumac.com

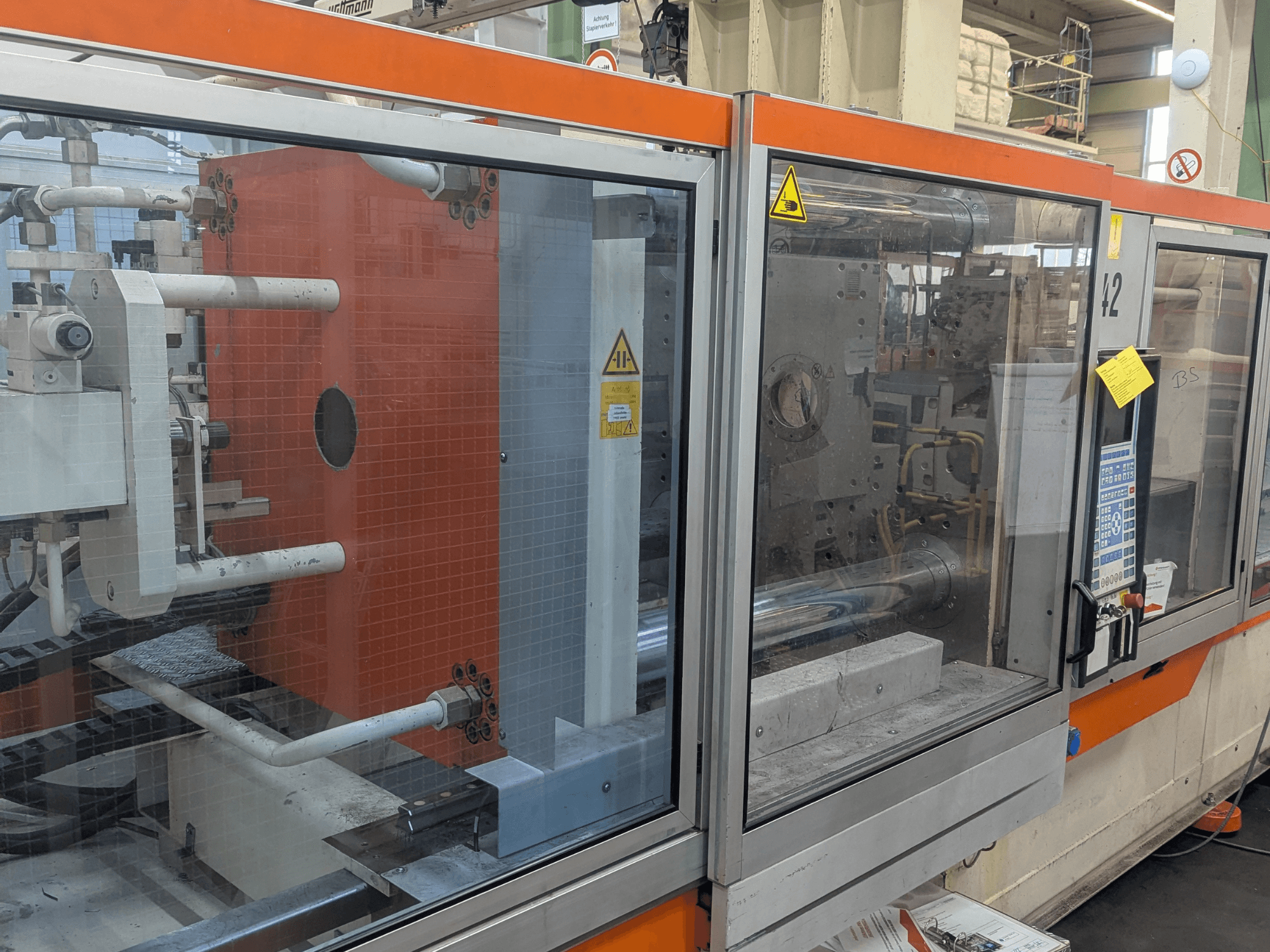

This 4-axis DEMAG SYSTEC 80/420-310 was manufactured in 2008. It features a clamping force of 800 kN and a screw diameter of 35 mm, making it suitable for processing various materials such as PA, PP, PE, and ABS. The machine includes a Wittmann linear robot and a Gravimax 14R gravimetric blender. If you are looking to get high-quality injection moulding capabilities, consider the DEMAG SYSTEC 80/420-310 hydraulic injection moulding machine we have for sale. Contact us for further details.
Overview
- brand: DEMAG
- year: 2008
- MODEL: SYSTEC 80/420-310
- production hours: 57628
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- Available from: 15/06/2026
Technical Information - DEMAG SYSTEC 80/420-310
Technical Specification
- Clamping Force: 800 kN
- Max. Shot Weight: 149 g
- Screw Diameter: 35 mm
Additional Information
Processed materials: PA, PP, PE, ABS
Cylinder temperature: up to 450°C
Tie bar distance: 420 mm
Injection unit: 310
Control system: CDIAS / NC5
Total operating hours (SPS): 108,544.0 h
Drive operating hours: 57,628.7 h
Heating operating hours: 73,426.7 h
Total cycle counter: 5,058,031
Voltage: 400 V
Frequency: 50 Hz
Current: 114 A
Max pressure (Pmax): 235 bar
Max flow (Qmax): 104 l/min
Installation height of the tool: 300 mm
Maximum distance between tool mounting plates: 750 mm
Availability: Mid 2026
Additional equipment
Wittmann linear robot (Handling/Robot)
Gravimax 14R gravimetric blender
TORO-systems material loader
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
