➤ Used SUMITOMO SHI DEMAG Systec 210/580-1450 For Sale

Show in original language

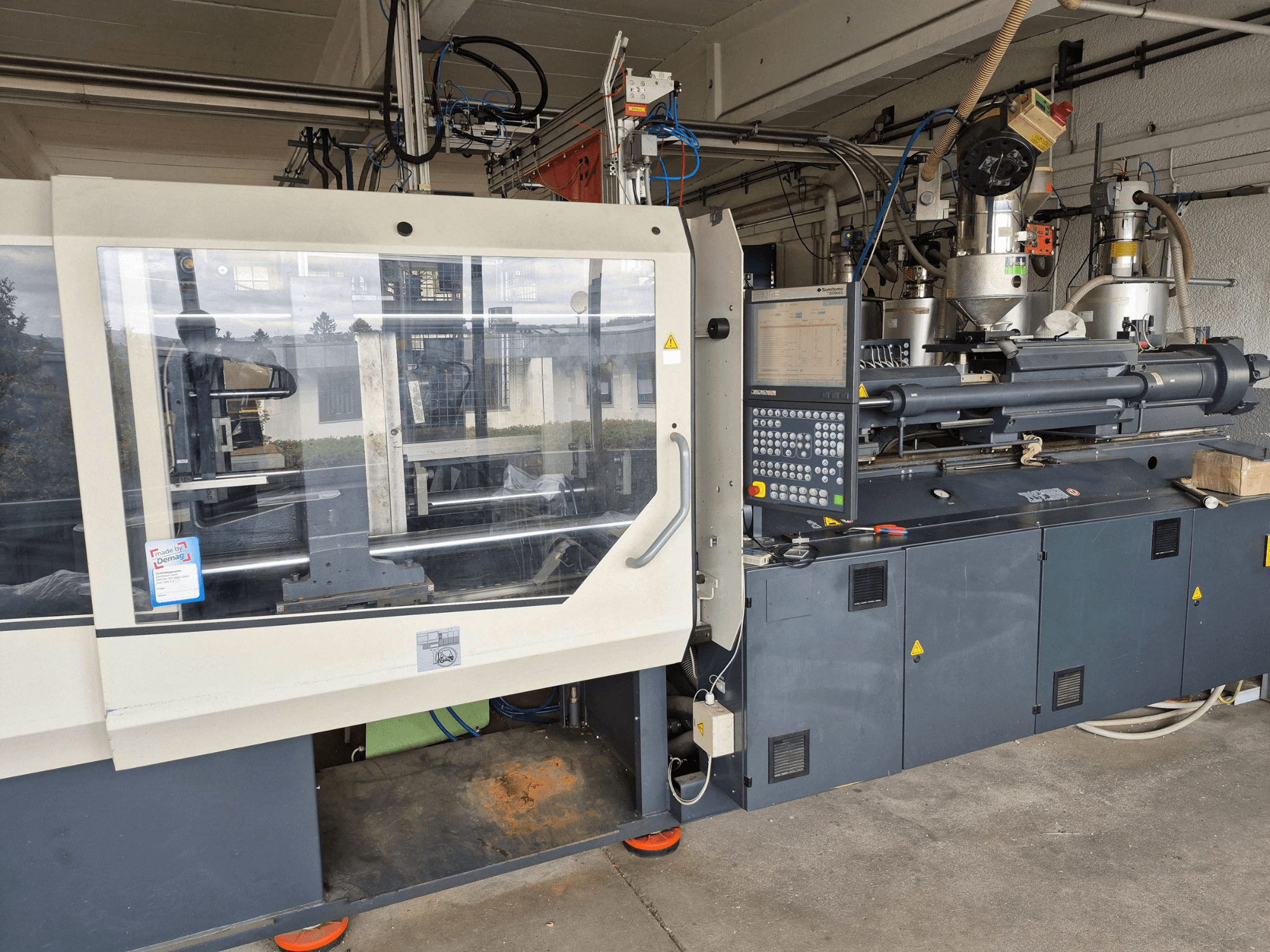

Hydraulic injection moulding machine manufactured in 2009. This SUMITOMO SHI DEMAG Systec 210/580-1450 features a clamping force of 210 t and a screw diameter of 50 mm. It offers a maximum specific injection pressure of 2426 bar and a maximum swept volume of 530 cm³. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG Systec 210/580-1450 machine we have for sale. Contact us for further details.

Overview

brand: SUMITOMO SHI DEMAG
year: 2009
MODEL: Systec 210/580-1450
production hours: 13000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Systec 210/580-1450

Technical Specification

Clamping Force: 2100 kN
Screw Diameter: 50 mm

Additional Information

- Max. Specific Injection Pressure: 2426 bar

- Max. Swept Volume: 530 cm³

- Mold Height (Min/Max): 340 mm / 790 mm

- Tie-Bar Distance: 580 x 580 mm

- Centering Ring Diameter (Ejector/Nozzle): 160 mm / 160 mm

- Operating Hours: 13,000 hrs (Drives)

- Core Pull: 1 circuit

- Pump Drive Power: 30.0 kW

- Power Supply: 400 V ±10% / 50 Hz, 3 Ph+N+PE

- Feed Zone Cooling: Regulated temperature

- Hydraulic Screw Drive: Motor I (high speed)

- Nozzle Specifications: Open nozzle M24x1.5, Radius 38.0 mm, Bore 3.0 mm

- Water Connection: 8-fold cooling water flow regulator with temperature display (max 10 l/min per circuit), separate connections for mold and machine cooling

- Socket Combination: Integrated, 2 x Schuko 1Ph/230V/10A, 2 x IECEE 3Ph/400V/16A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
