DMG - CMX 600 VGB-MIL-DMG-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG CMX 600 V vertical machine center

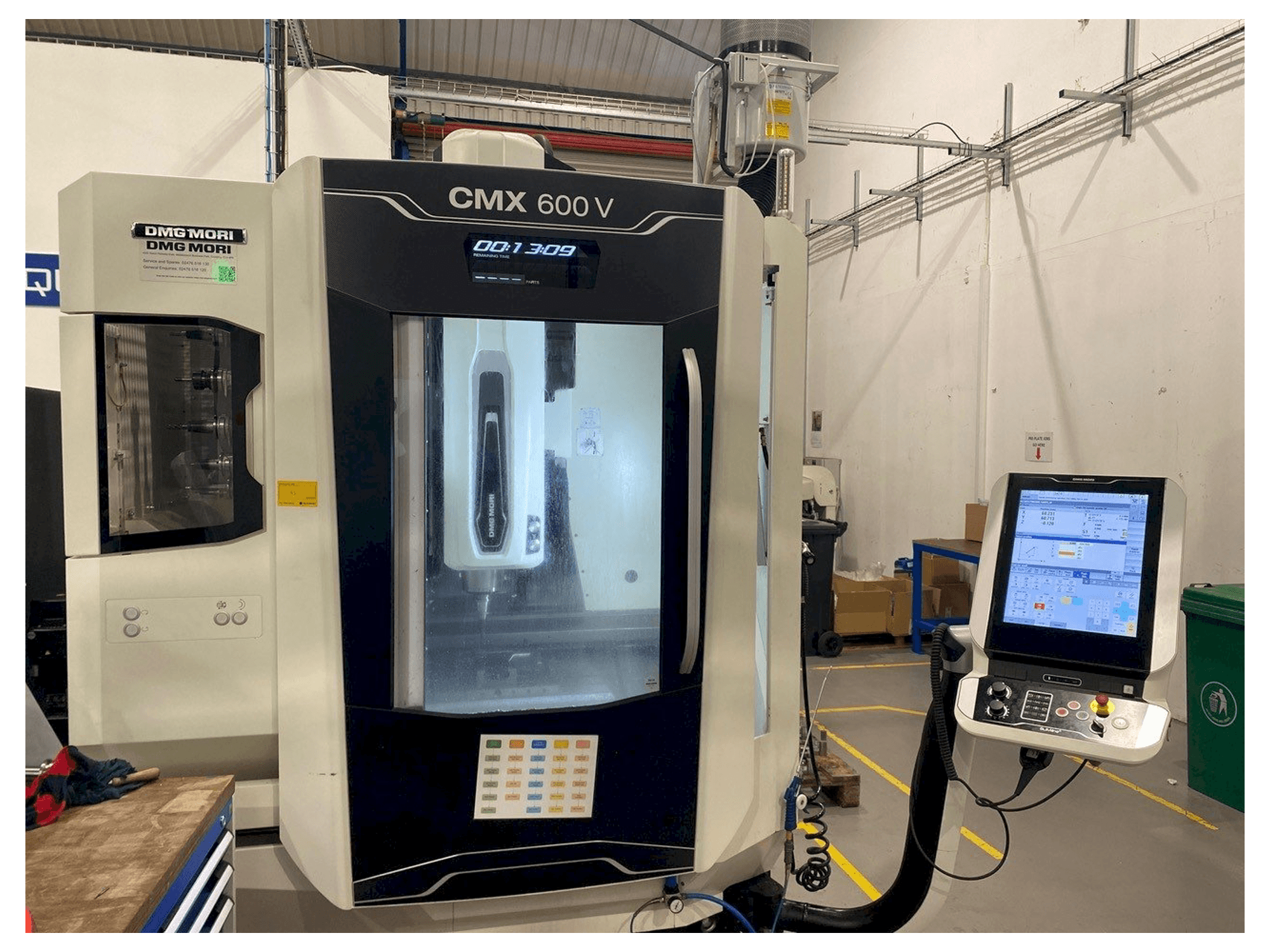

This DMG CMX 600 V vertical machine center was built in the year 2018 in Poland and has 14603 hours, of which 4740 are spindle hours. It is equipped with a Siemens 840D SL Slimline Multi-Touch Operate 4.7 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and is in very good condition.
Overview
- brand: DMG
- year: 2018
- MODEL: CMX 600 V
- production hours: 14603
- application type: Milling
- Location: United Kingdom
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Siemens
Technical Information - DMG CMX 600 V
General Data
- Measurements width: 2954 mm
- Measurements depth: 2757 mm
- Measurements height: 2935 mm
- Machine weight: 5000 kg
Control Unit
- Brand: Siemens
- Model: 840D SL Slimline Multi Touch Operate 4.7
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 13/9 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 560 mm
- Z-AXIS Movement: 510 mm
Workpiece
- Workpiece weight: 600 kg
Table
- Outer length: 900 mm
- Outer width: 560 mm
Tools
- Slots in storage: 30
- Max weight: 8 kg
- Max tool diameter: 80 mm
- Max tool length: 300 mm
- Type of tool holder: BT 40
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Min-max height under spindle 120 - 630 mm
- - Rapid feed rates 30m/minute
- - Tool setter
- - Swarf conveyor
- - Tool change time (chip to chip) 6. 7 seconds
- - 3-axis controlled
- Qualitative Machine Benefits:
- - Very good condition
- - oil mist filter and the clamping unit which was on the table it's not included
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
