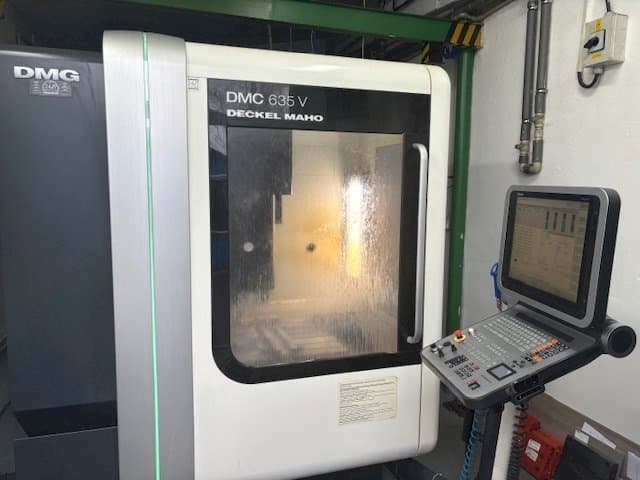

Front view of DMG DMC 635V  machine

DMG DMC 635V

DMG - DMC 635V

2008

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG DMC 635V Vertical Machining center was manufactured in the year 2008 in Germany and has 44725 production hours, of which 32319 are spindle hours. It is equipped with a HEIDENHAIN iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 14000 rpm.

Overview

  • brand: DMG
  • year: 2008
  • MODEL: DMC 635V
  • production hours: 44725
  • application type: Milling
  • Location: Czech Republic
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Heidenhain
  • GINDUMAC ID: CZ-MIL-DMG-2008-00002

Technical Information

General Data

  • Measurements width: 2954 mm
  • Measurements depth: 2757 mm
  • Measurements height: 2935 mm

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 530

Main drive

  • Number of spindles: 1
  • Spindle speed range: 14000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 635 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 510 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 460 mm
  • Z-AXIS Rapid traverse: 30 m/min

Table

  • Outer length: 790 mm
  • Outer width: 560 mm

Tools

  • Slots in storage: 20
  • Type of tool holder: SK 40

Additional Information

    Machine history

    • Industries: Molds

    Machine Benefits

    • Technical Machine Benefits:
      • - Optional spindle with increase rpm 14. 000 and cooling main drive unit
      • - Direct measurement x/y/z
      • - Spindle motor power 13/9 kw
      • - Outer cooling water/air
      • - Tool setter heidenhain tt130
      • - Infra probe heidenhain ts649
      • - Tool holders
      • - Wash gun
      • - Electronic handwheel
    • Qualitative Machine Benefits:
      • - 11/2023 - new spindle installed, accuracy protocol available
      • - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
