DMG HSC 105 linear
DMG - HSC 105 linear
2012
265,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- DMG HSC 105 linear Vertical Machining center
Show in original language

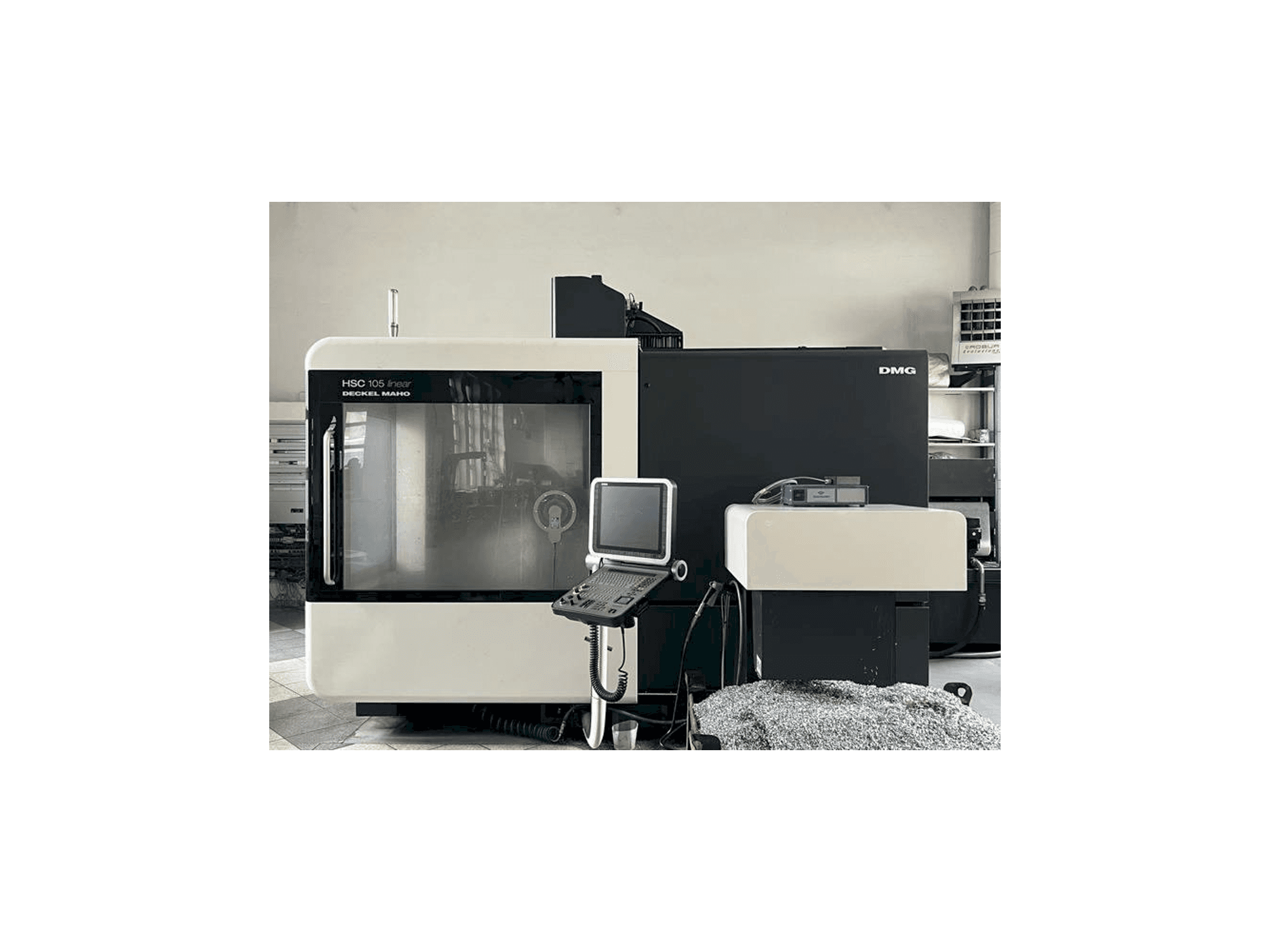

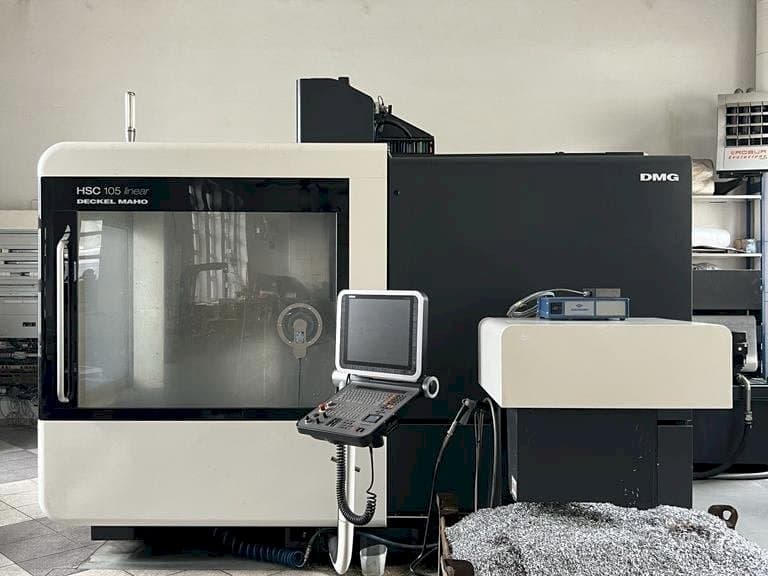

This DMG HSC 105 linear Vertical Machining center was manufactured in the year 2012 in Germany. It is equipped with a Heidenhain iTNC 530 and has 5 axis. The machine has a spindle speed of 28000 rpm, is in good condition and well maintained.
Overview
- brand: DMG
- year: 2012
- MODEL: HSC 105 linear
- application type: Milling
- Location: Czech Republic
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Heidenhain
- GINDUMAC ID: CZ-MIL-DMG-2012-00001
Technical Information
General Data
- Measurements width: 6400 mm
- Measurements depth: 6530 mm
- Measurements height: 3180 mm
- Machine weight: 13700 kg
Control Unit
- Brand: Heidenhain
- Model: iTNC 530
Main drive
- Number of spindles: 1
- Spindle speed range: 28000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 1050 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 560 mm
Workpiece
- Workpiece weight: 800 kg
Table
- Outer length: 950 mm
Tools
- Slots in storage: 120
- Type of tool holder: HSK-A 63
Media
- Power consumption: 80 kVa
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - C axis 360 degrees
- - B axis +10 degrees/-110 degrees
- - Table diameter 950 mm
- - Feedrate 90 m/min.
- - Rapid feedrate 90 m/min.
- - Spindle motor power (40/100%) 55/43. 5 kw
- - Spindle motor torque max. 47. 8 nm (40% dc)
- - Through spindle coolant 40 bar with paper type filter
- - 3d quickset
- - Tool laser probe renishaw, infrared probe pp60 optical
- Qualitative Machine Benefits:
- - Very good condition!
- - Demo machine bought as new in 2015
- - Only used in small -scale/one-piece part production
- - 2023 - new spindle installed
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
