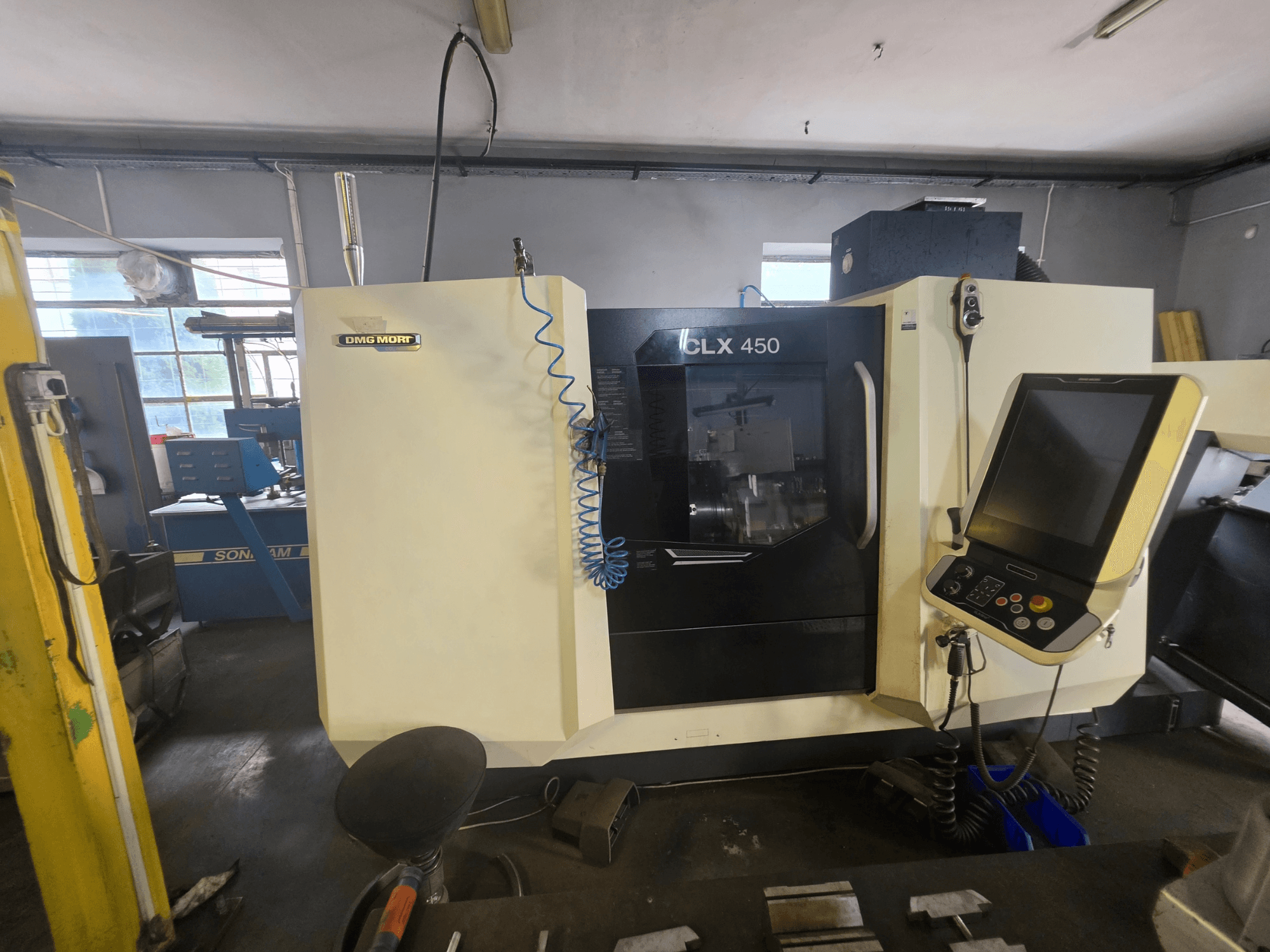

DMG MORI - CLX 450 V6PL-TUR-DMG-2021-00002

• Control: Siemens 840D with ShopTurn

• HMI: DMG MORI SLIMline Multi-Touch, 19" touchscreen

• Spindle operating hours: approx. 2,928 h

Working capacity and axes

• Axes: X, Y, Z; C-axis on main and counter spindle

• Max turning diameter: 400 mm

• Swing over bed: 700 mm

• Swing over cross slide: 370 mm

• Rapid traverse: X/Z 30 m/min; Y 22.5 m/min

Main spindle

• Spindle nose: A2-8

• Bar capacity: 80 mm

• Power: 25.5 kW (40% ED) / 17 kW (S1)

• Torque: 426 Nm (40% ED) / 283 Nm (S1)

• Differential clamping pressure function

Counter spindle

• Max speed: 5,000 rpm

• Spindle nose: A2-6

• Power: 14 kW (40% ED) / 13 kW (S1)

• Torque: 192 Nm (40% ED) / 171.5 Nm (S1)

• Differential clamping pressure function

• Internal chuck flushing

• Auxiliary tailstock function

Tool turret and driven tools

• 12-position VDI 40 turret with 6 additional BT stations

• Driven tools: up to 4,000 rpm

• Driven-tool power/torque: 5.44 kW (40% ED) / 20 Nm (40% ED)

Equipment/options (machine-integrated)

• Setup package: 12-bar coolant supply system; 5-bar coolant washdown gun

• Safe clamping package

• Connectivity: DMG MORI IoTconnector; DMG MORI Messenger V4

• Siemens software options: Multi Threading 2.0; Variable spindle speed; Y-axis parting cycle; Keyway Broaching cycle

Electrical data

• Supply voltage: 400 V ±10%, 50 Hz

• Phases: L1, L2, L3, N, PE

• Connected load: 39 kVA

• Max rated current: 56 A
