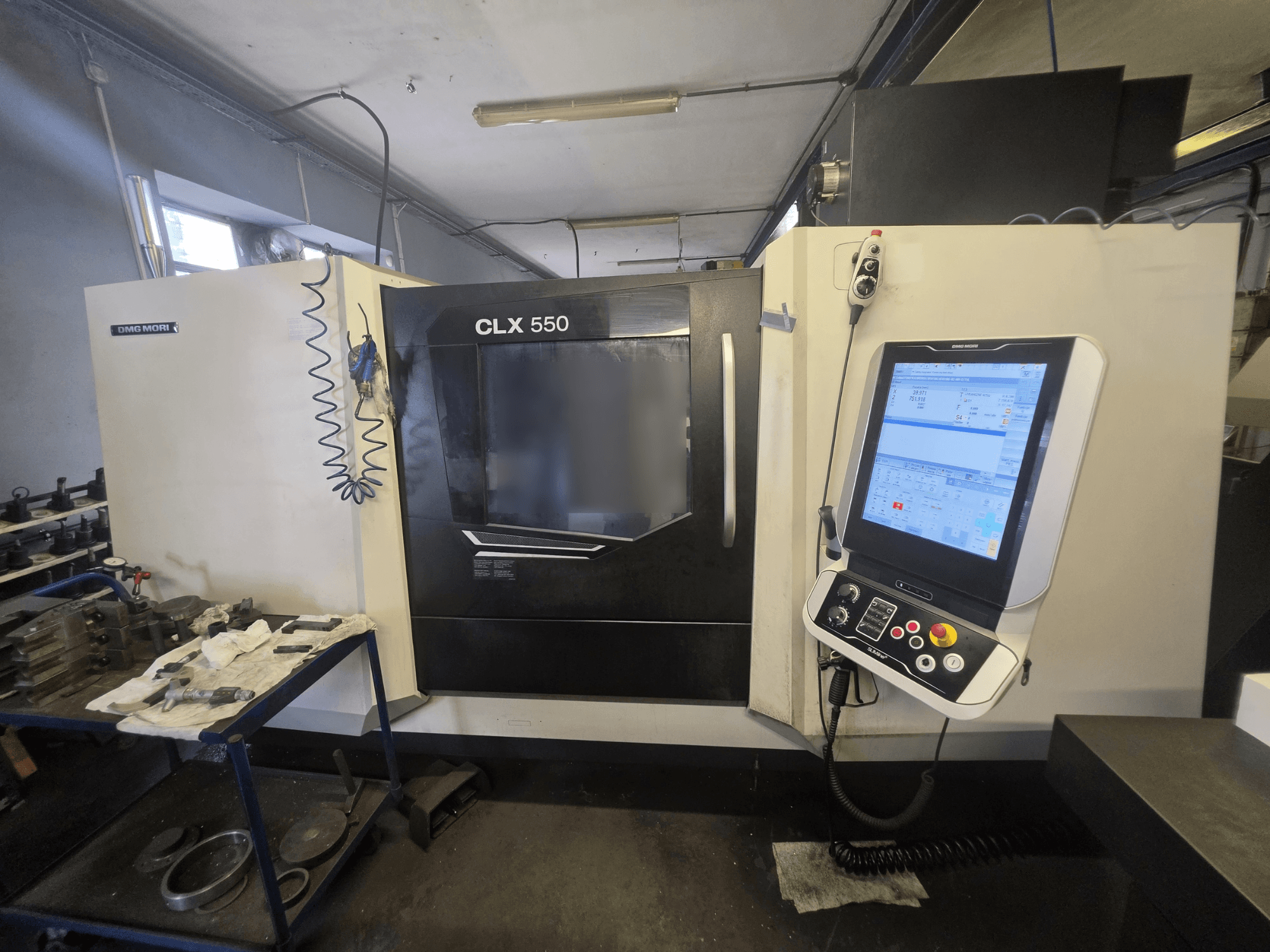

DMG MORI - CLX 550 V3PL-TUR-DMG-2020-00003

• Control panel: DMG MORI SLIMline Multi-Touch, 19-inch touchscreen

• Controlled axes: 3 (X, Z, C)

• Spindle operating hours: approx. 20,292 h

Working capacity and axes

• Max turning diameter: 480 mm

• Max turning length: 1,240 mm

• Swing over bed: 700 mm

• Swing over cross slide: 500 mm

• Rapid traverse X/Z: 30 m/min

• Main spindle C-axis

Main spindle and chuck

• Spindle nose: A2-8

• Upgraded bar capacity: 102 mm

• Spindle power: 33 kW @ 40% / 22 kW continuous

• Spindle torque: 630 Nm @ 40% / 420 Nm continuous

• Hydraulic chuck: SMW BH-D 320 / A2-8, D103 mm

• Differential clamping pressure function

Tool turret and driven tools

• Turret: 12-position VDI 40 with 6 additional BT stations

• Driven tools: yes

• Max driven-tool speed: 4,000 rpm

• Driven-tool power: 5.44 kW @ 40%

• Driven-tool torque: 20 Nm @ 40%

Tailstock

• Tailstock travel: 1,200 mm

• Centre taper: MT5

• Max thrust: 12 kN

Equipment and options

• Setup package

• Tropical climate package

• 12-bar coolant supply system

• Manual working-area washdown gun

• Variable spindle speed function

• DMG MORI Service Agent

• DMG MORI Messenger V2

• DMG MORI NETservice

• DMG MORI IoTconnector

• Screen languages: German/Polish

Construction

• Inclined cast-iron bed

• Linear guideways, width 45 mm

Additional equipment

• Mechanical oil mist extraction unit, 1,100 m³/h

• WTO VDI 40 driven-tool holder set

• Set of three soft jaws for BH-D315 chuck
