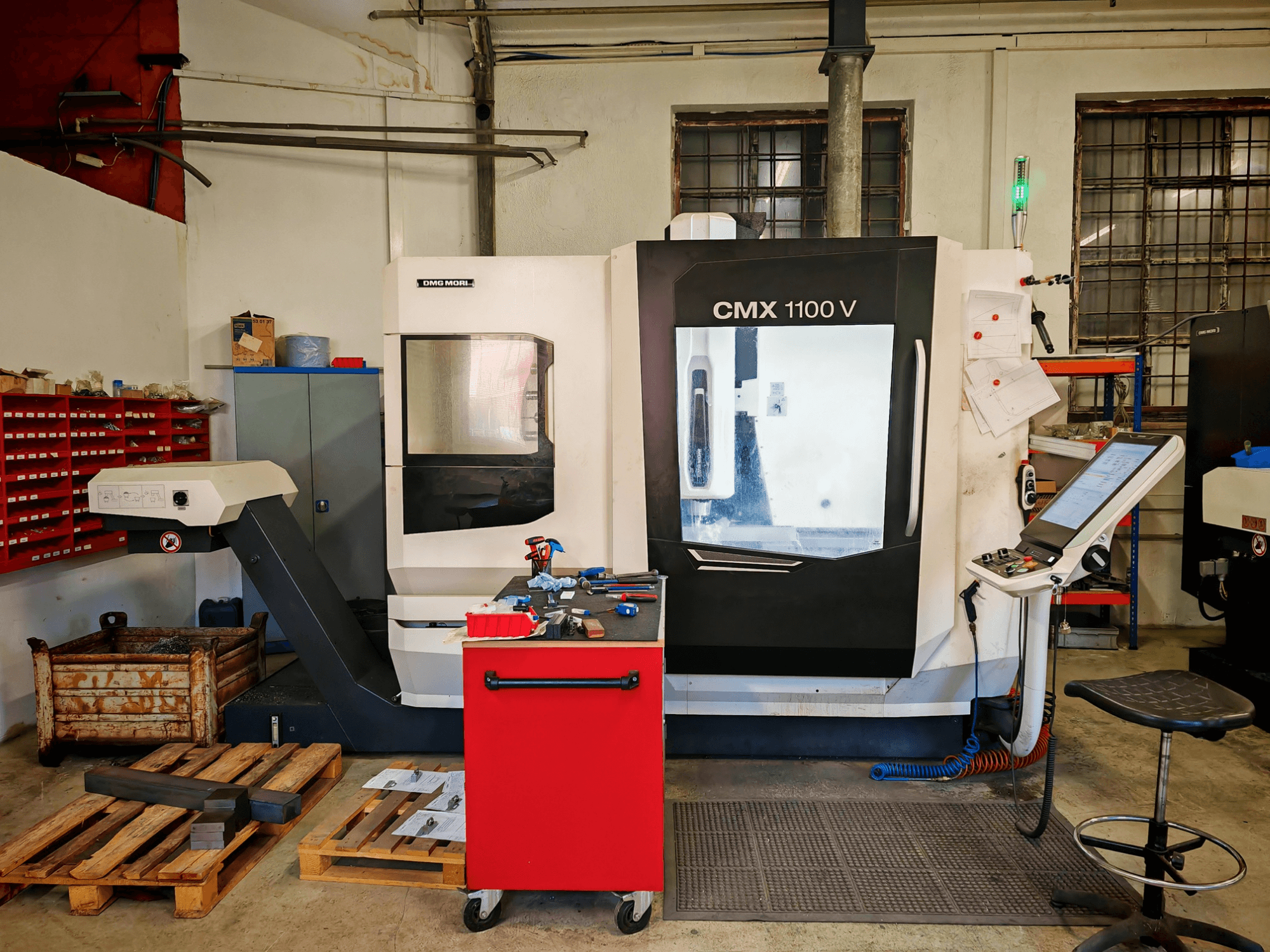

This 3-axis DMG MORI CMX 1100 V was manufactured in 2020. It features an X-axis travel of 1100 mm, Y-axis travel of 560 mm, and Z-axis travel of 510 mm. The machine includes a clamping area of 1400 x 560 mm and a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 1100 V vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2020
- MODEL: CMX 1100 V
- production hours: 5838
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
Technical Information - DMG MORI CMX 1100 V
Dimensions
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1100 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Distance spindle nose to table: 120–630 mm
Clamping area: 1400 x 560 mm
Spindle power: 13 kW (40% DC) / 9 kW (100% DC)
Spindle torque: 83 Nm (40% DC) / 57 Nm (100% DC)
Tool magazine: 30 pockets (double gripper, loaded through spindle, programmed via control panel)
Max. tool diameter: 80 mm (130 mm with free adjacent pockets)
Max. tool length: 300 mm (from spindle face)
Max. magazine load: 120 kg
Feed drives: AC drives with ball screws
Feed rate (X/Y/Z): 30 m/min
Rapid traverse (X/Y/Z): 30 m/min
Additional equipment
Renishaw tool probe
Renishaw workpiece probe
Clamps/workholding set
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
