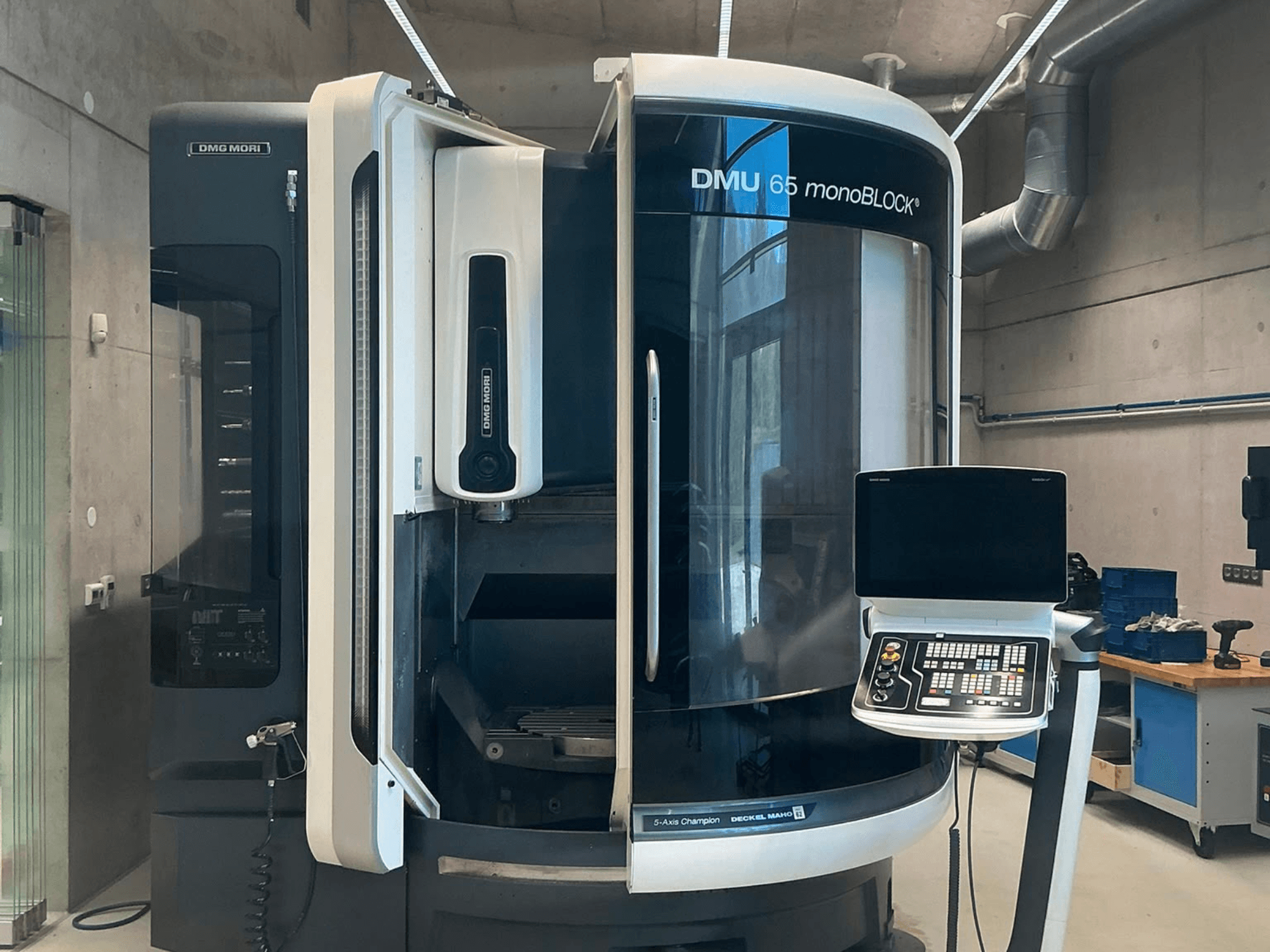

This 5-axis DMG MORI DMU 65 monoBLOCK was manufactured in 2016. It features an impressive X-axis travel of 735 mm, Y-axis travel of 650 mm, and Z-axis travel of 560 mm. The machine is equipped with a powerful spindle speed of 15,000 rpm and a maximum table load of 600 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 65 monoBLOCK vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2016
- MODEL: DMU 65 monoBLOCK
- production hours: 1963
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI DMU 65 monoBLOCK
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D sl Operate
Dimensions
- Machine Weight: 12100 kg
Movement
- Number of Axes: 5
- X-axis Travel: 735 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Power: 21 kW
- Spindle Speed: 15000 RPM
- Taper Size: SK 40
Additional Information
Spindle: power 21 kW (40% ED) / 16 kW (100% ED); torque 111 Nm (40% ED); pull stud DIN 69872
Table: Rotary table (C-axis) Ø650 mm integrated in rigid table 800 x 650 mm
Swivel/rotary axes: A-axis +120° / -120° from 0°; C-axis 360°; A-axis torque/holding 3,400 Nm (100% ED); A-axis hydraulic clamping holding torque 6,200 Nm; C-axis torque/holding 2,000 Nm (100% ED)
Feed/rapid: Rapid traverse X/Y/Z 40 m/min; max feed X/Y/Z 40,000 mm/min; max feed force X 7 kN, Y 13 kN, Z 10 kN (all 100% ED)
Guideways: Roller linear guides on all linear axes
Measuring system: Direct, absolute, 0.001 mm resolution, magnetic (for Siemens)
Control: CELOS with Siemens 840D sl Operate, 21.5" ERGOline multi-touch
Tool changer/magazine: Automatic with double gripper (vertical); 30-position SK40 chain magazine; max tool Ø 80 mm (adjacent filled) / 160 mm (adjacent empty); max tool length 315 mm
Coolant/swarf standard: Chip tray with integrated 500 L tank; standard swarf management via chip tray
Condition: Excellent; only 1,963 spindle hours
Additional equipment
Production package (P-K0398): Chip conveyor with coolant tank, paper band filter, internal coolant through spindle (IKZ) 40 bar / 23 l/min, external coolant 4 bar / 40 l/min, door flushing
Optional tool interface (P-M0039): Tool taper adaptation for HSK-A63 (DIN 69893)
Swarf wash pistol (P-G0004): 2 bar / 40 l/min
Measuring probe (P-K0263): Heidenhain TS 649 infrared touch probe
Tool measuring system (P-K0405): Blum laser for vertical tool length and diameter measurement
Kinematics option (P-K0224): 3D quickSET toolkit for checking/correcting 4/5-axis configuration
Operation Mode 4 (P-H0038): Manual intervention in work area with open doors under controlled process
Electronic handwheel (P-H0109): Siemens 840D
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
