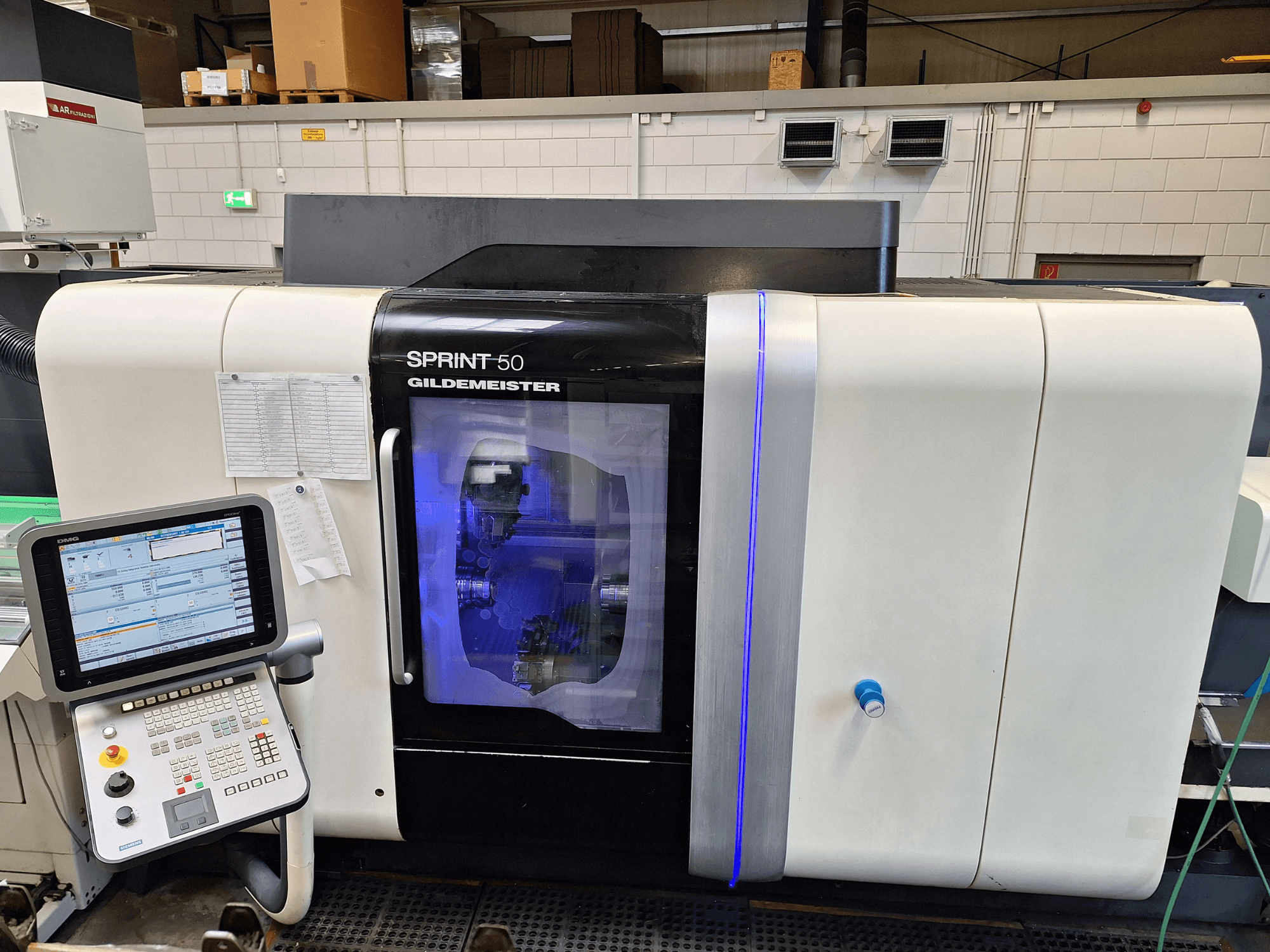

This 7-axis DMG Sprint 50 2T was manufactured in 2012. It features a maximum turning diameter of 50 mm and a turning length of 550 mm. The machine is equipped with two turrets, each with 12 driven tool stations, and offers a rapid traverse speed of 30 m/min. If you are looking to get high-quality turning capabilities, consider the DMG Sprint 50 2T horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2012
- MODEL: Sprint 50 2T
- production hours: 23197
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG Sprint 50 2T
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 7
- X-axis Travel: 160 mm
- Y-axis Travel: 80 mm
- Z-axis Travel: 550 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 11 kW
- Spindle Speed: 5000 RPM
Additional Information
number of cross slides 3
main spindle yes
sub spindle yes
max turning diameter 50 mm
max turning length 550 mm
main spindle speed max 5000 rpm
sub spindle speed max 5000 rpm
main spindle power 11 kW
sub spindle power 11 kW
driven tool speed max 6000 rpm
turret speed 401 rpm
X1/X2 axis travel 160 mm
Z1/Z2 axis travel 550 mm
Y axis travel ±40 mm
rapid traverse speed 30 m/min
electrical connection 34 kVA
max current 135 A
tailstock force 300 daN
tailstock stroke 510 mm
tailstock connection MK3
coolant tank capacity 980 l
coolant filter 50 µm
coolant pump pressure 20 bar
collet size 52
max hex 43 mm
max square 35 mm
3-jaw chuck type BBD 140/39
optional accessories tool holders driven tools collets
spindle hours 23198 h
Optional: bar loader
loading area 500 x 630 x 1250 mm
max load 350 kg
max bar weight 40 kg
material diameter range 6 to 70 mm
square min edge 6 mm
hex range 5 to 60 mm
bar length 500 to 1200 mm
spindle liner max length 2000 mm
Additional equipment
Tool holders
Driven tools
Collets
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
