DOOSAN - DNM 6700 XL SI-MIL-DOO-2021-00003

Name: DOOSAN DNM 6700 XL
Brand: DOOSAN
SKU: SI-MIL-DOO-2021-00003
Price: 124000 EUR
Availability: InStock

124,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN DNM 6700 XL For Sale | gindumac.com

Show in original language

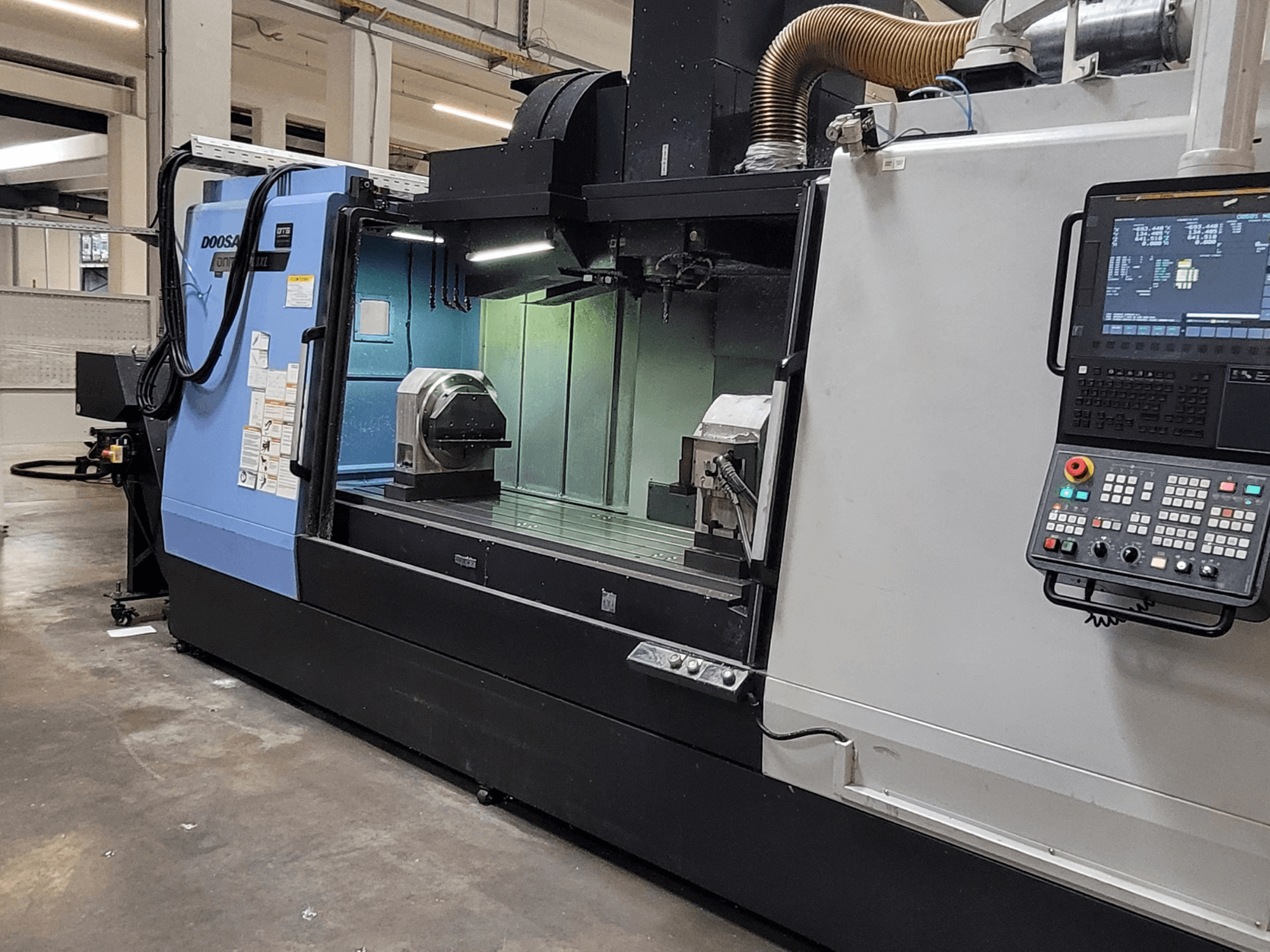

This 4-axis DOOSAN DNM 6700 XL was manufactured in 2021. It features an impressive X-axis travel of 2,100 mm, Y-axis travel of 670 mm, and Z-axis travel of 625 mm. The machine is equipped with a FANUC i-Series CNC control and a spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the DOOSAN DNM 6700 XL vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2021
MODEL: DNM 6700 XL
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 6700 XL

Control Unit

Control Brand: FANUC

Dimensions

Machine Weight: 10000 kg

Movement

Number of Axes: 4
X-axis Travel: 2100 mm
Y-axis Travel: 670 mm
Z-axis Travel: 625 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM
Taper Size: BT 40
Tool Stations: 30

Additional Information

Condition: Excellent, used
Functionality: Fully functional
Display: 15"
Program storage: 2 MB / 1,000 programs
Rapid traverse X/Y/Z: 30 / 30 / 30 m/min
Spindle torque: 118 Nm
Through-spindle coolant: 12 bar
Ball screw nut cooling
Tool breakage detection
Automatic doors
Robot interface
4th-axis preparation
Ethernet connection
Coolant gun
Coolant level sensor

Additional equipment

HIWIN RCV 320 rotary table (4th axis)
HIWIN RTS 320 support (tailstock)
Hydraulic aggregate: 200 bar, 3 A+B
Hydraulic 4th-axis fixture support: 4x oil / 4x air; seat air check
LNS MH500 chip conveyor
Oil mist extraction system
Oil skimmer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
