➤ Used DOOSAN VC 630/5AX For Sale | gindumac.com

Show in original language

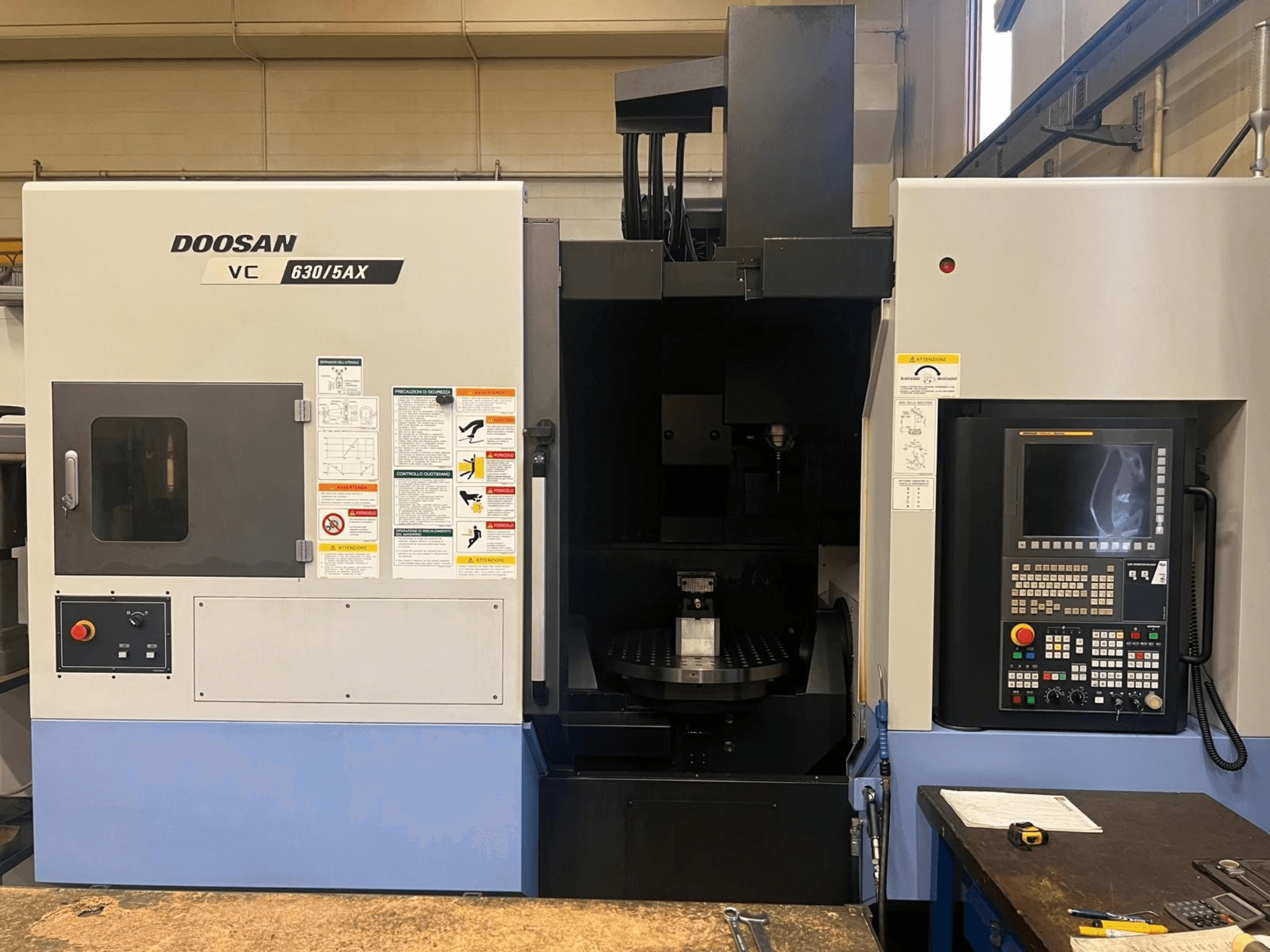

This 5-axis DOOSAN VC 630/5AX was manufactured in 2017. It features an impressive X-axis travel of 650 mm, Y-axis travel of 765 mm, and Z-axis travel of 520 mm. The machine includes a robust table size of Ø 630 mm and can accommodate workpieces up to Ø 730 x 500 mm with a maximum weight of 500 kg. If you are looking to get high-quality machining capabilities, consider the DOOSAN VC 630/5AX vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2017
MODEL: VC 630/5AX
production hours: 2738
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN VC 630/5AX

Control Unit

Control Brand: FANUC
Control Model: i series

Movement

Number of Axes: 5
X-axis Travel: 650 mm
Y-axis Travel: 765 mm
Z-axis Travel: 520 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

A axis travel: +30° ~ -120°
C axis travel: 360°
Rapid feedrate (X/Y/Z): 40 / 40 / 36 m/min (1574.8 / 1574.8 / 1417.3 ipm)
Rapid feedrate (A/C): 20 / 30 r/min
Table size: Ø 630 mm (Ø 24.8 in)
Max. workpiece size: Ø 730 x 500 mm (Ø 28.7 x 19.7 in)
Max. workpiece weight: 500 kg (130.1 lb)
Total operating hours (ACCESO): 5679 H 6 M
Total working time (TMP LAV): 2748 H 23 M 44 S
Total cutting time (TEMPO TAGLIO): 2400 H 32 M 35 S
Total parts count (PEZZI TOTALI): 103

Additional equipment

Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
