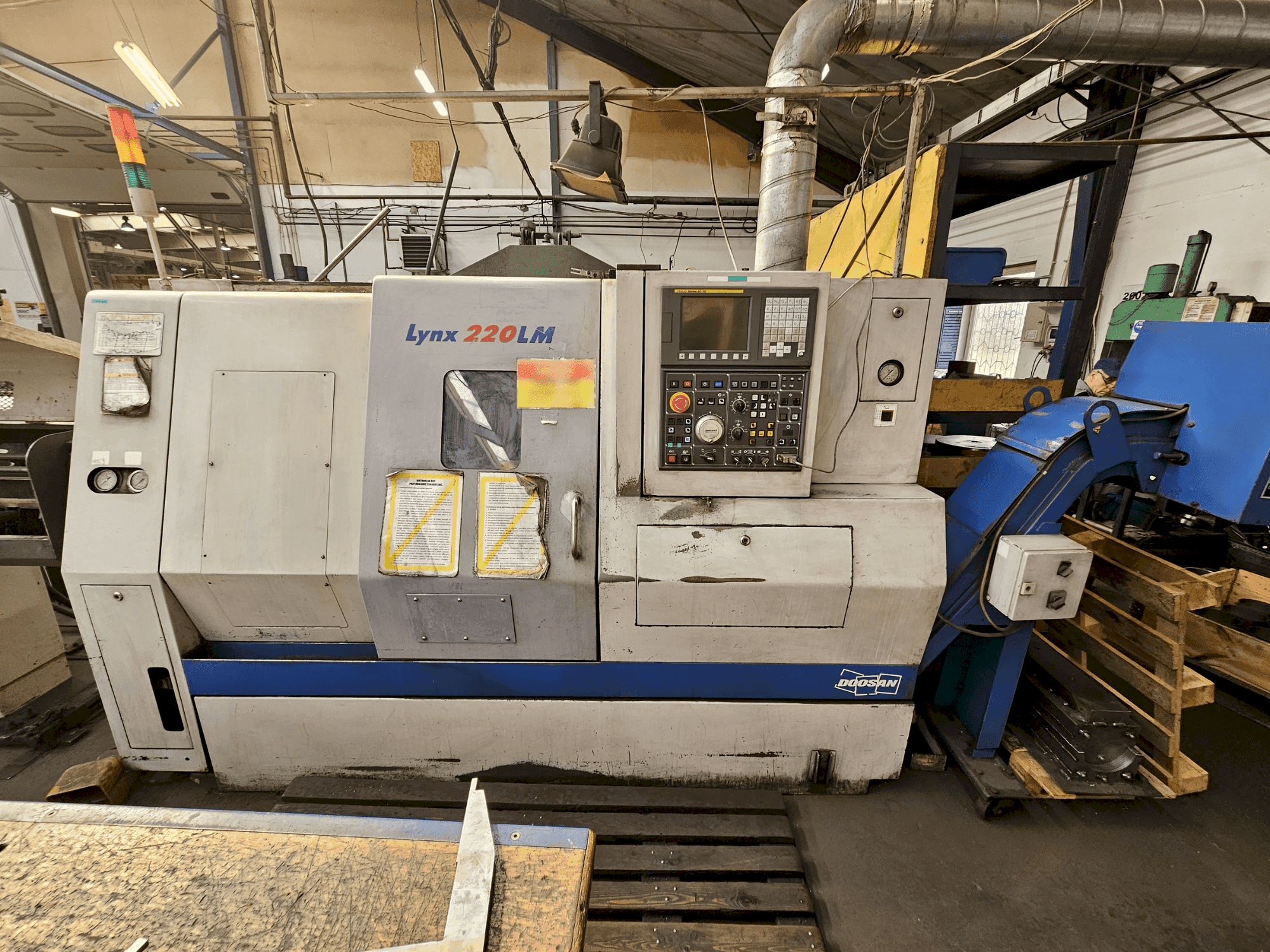

Front view of DOOSAN LYNX 220LMA  machine

DOOSAN - LYNX 220LMAPL-TUR-DOO-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

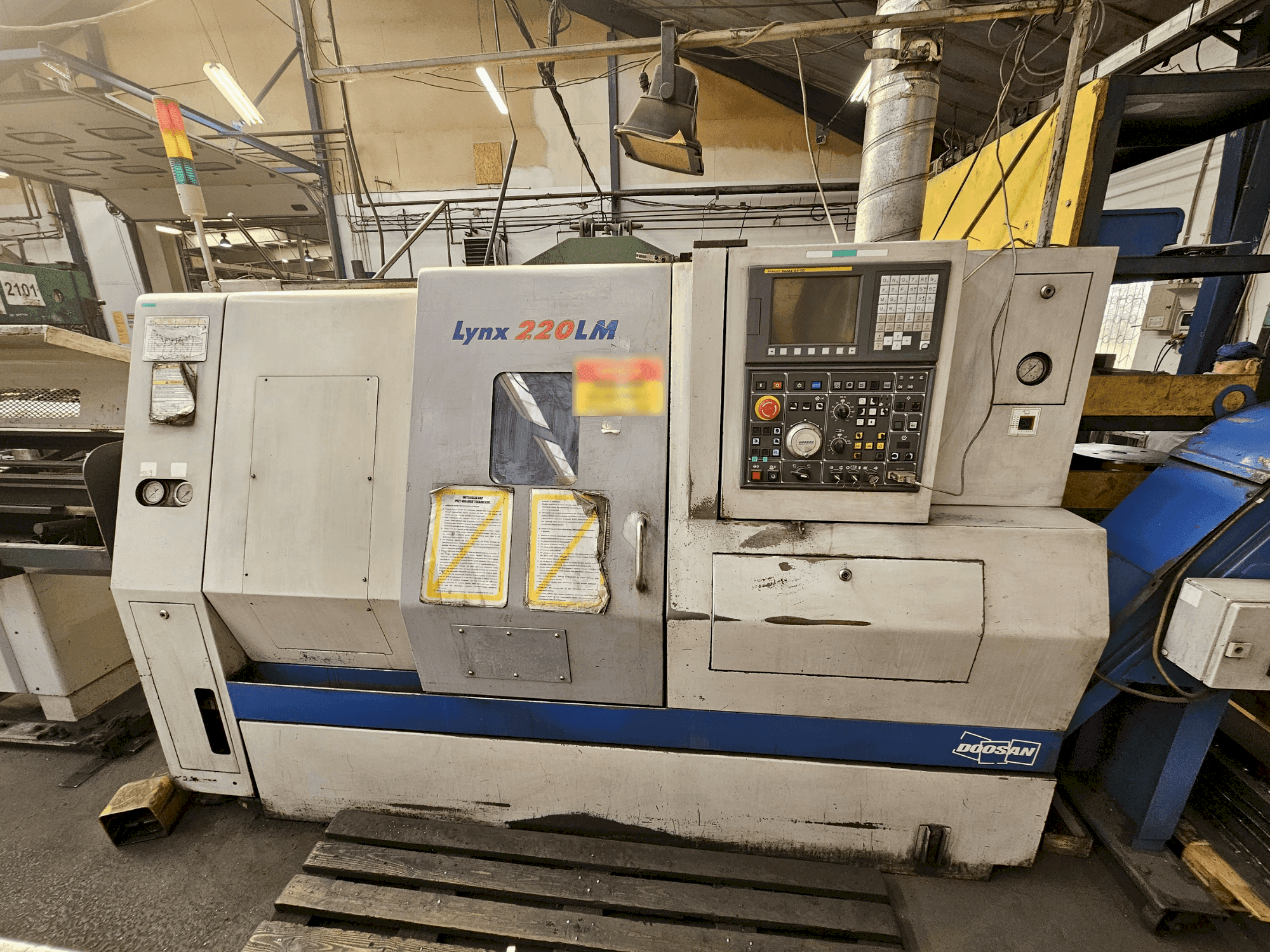

This DOOSAN LYNX 220LMA Lathe was manufactured in 2007 in South Korea. It is equipped with a FANUC Oi-TC control. The machine has 2 axes (X-Axis Travel: 175 mm, Z-Axis Travel: 330 mm), a max. turning diameter of 320 mm and a max. turning length of 322 mm. It comes with 24 turret stations and a spindle speed range of 60-6000 rpm. Swing over bed is 510 mm and swing over carriage is 290 mm. This lathe is in good condition, only the coolant pump has an issue which requires a technical review.

Overview

  • brand: DOOSAN
  • year: 2007
  • MODEL: LYNX 220LMA
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine
  • availability: Sold
  • control unit brand: FANUC

Technical Information - DOOSAN LYNX 220LMA

General Data

  • Measurements width: 2560 MM
  • Measurements depth: 1600 MM
  • Measurements height: 1650 MM
  • Machine weight: 3500 kg

Control Unit

  • Model: Oi-TC
  • Brand: FANUC

Main drive

  • Spindle speed range: 60-6000 1/MIN

Movement

  • X-AXIS Movement: 175 MM
  • Z-AXIS Movement: 330 MM

Turret

  • Number of tool slots: 24

    Additional Equipment

    • - Bar feeder: LNS ECO LOAD (2007)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Swing over bed: 510 mm
        • - Swing over carriage: 290 mm
        • - Max turning diameter: 320 mm
        • - Max turning length: 322 mm
        • - X-axis travel: 175 mm // z-axis travel: 330 mm
        • - Spindle speeds: 60-6000 rpm
        • - Turret stations: 24

      Extra information

      • - The machine is in good condition, but there is an issue with the coolant pump.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
