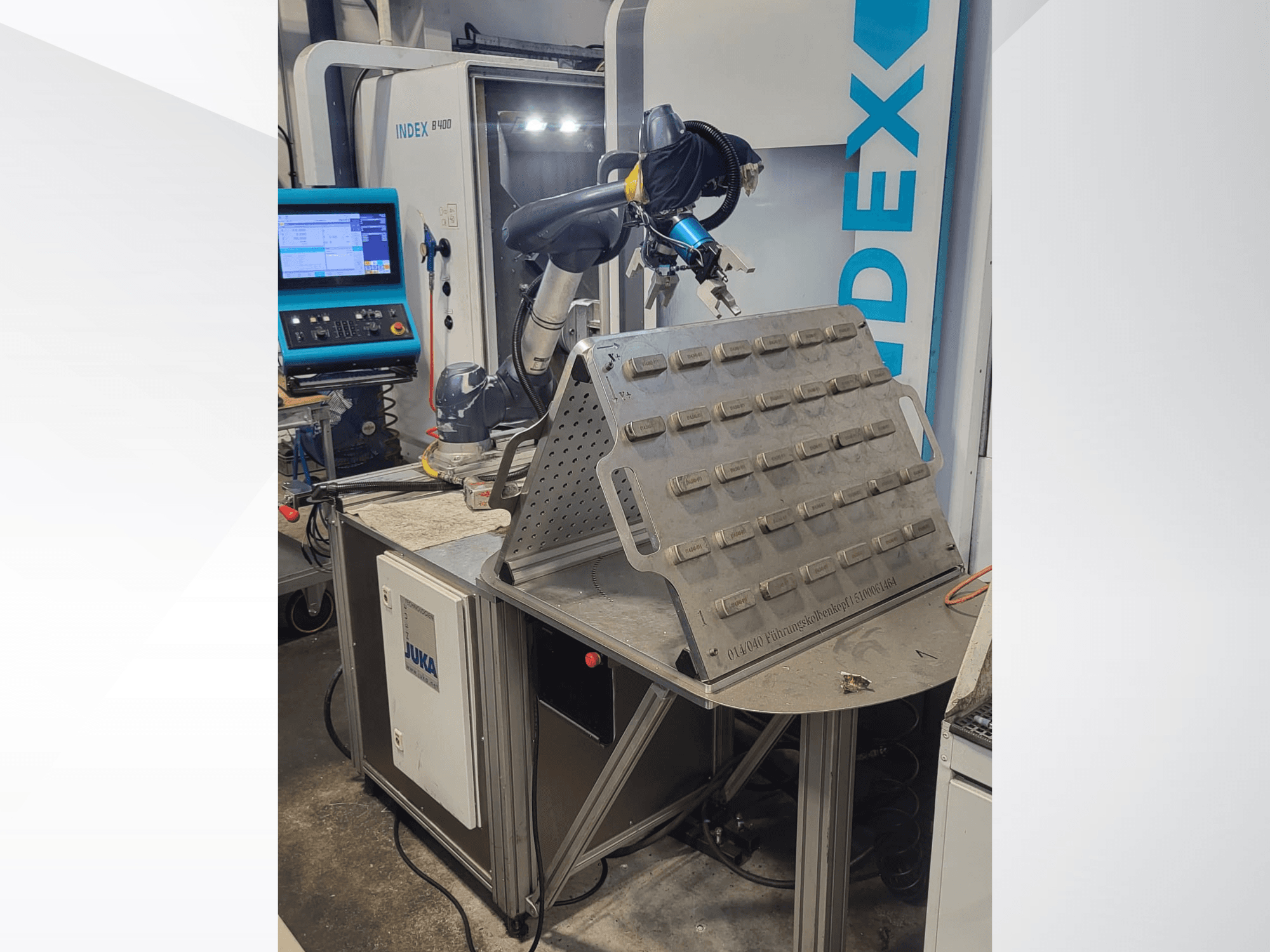

DOOSAN M1013 collaborative robot from a front view, positioned near a worktable with a tool holder and control panel.
DOOSAN M1013 collaborative robot from a front view, positioned near a worktable with a tool holder and control panel.

DOOSAN - M1013AT-ROB-DOO-2021-00001

20,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis DOOSAN M1013 collaborative robot was manufactured in 2021. It features a payload capacity of 10 kg and a reach of 1,300 mm, making it suitable for various applications. The machine includes a stable construction with an aluminum plate and a rotary table for enhanced functionality. If you are looking to get high-quality automation capabilities, consider the DOOSAN M1013 collaborative robot we have for sale. Contact us for further details.

Overview

  • brand: DOOSAN
  • year: 2021
  • MODEL: M1013
  • application type: Robotics
  • Location: Austria
  • machine type: Collaborative Robot

Technical Information - DOOSAN M1013

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 10 kg
  • Max. Reach: 1300 mm

Additional Information

  • Total dimensions: 1,790 x 1,100 x 900 mm

  • Documentation: Complete documentation, risk assessment, and CE conformity declaration included

Additional equipment

  • Machine table: Stable construction with 20 mm aluminum plate (840 x 700 mm)

  • Additional pallet: 400 x 700 mm support surface

  • Storage system: Rotary table with automatically rotatable hole-pattern plate (28 mm pitch)

  • Gripper: Pneumatic double-parallel gripper with quick-change jaws

  • Insertion aid: Spring-loaded compensating adapter (21 N) for raw part placement

  • Controller housing: EPS-Case IP54 for robot controller, pneumatic valves, and I/O modules

  • Construction: Open Item profiles with external T-slots for modular expansion

  • Electrical/pneumatic: 24-pin Harting plug set, pneumatic connection, ready to plug in

  • Included accessories: 100 cylinder pins (12 x 120 mm), 5 sets of gripper finger blanks, blow-out nozzle, hose guide, tablet holder, splash guard
