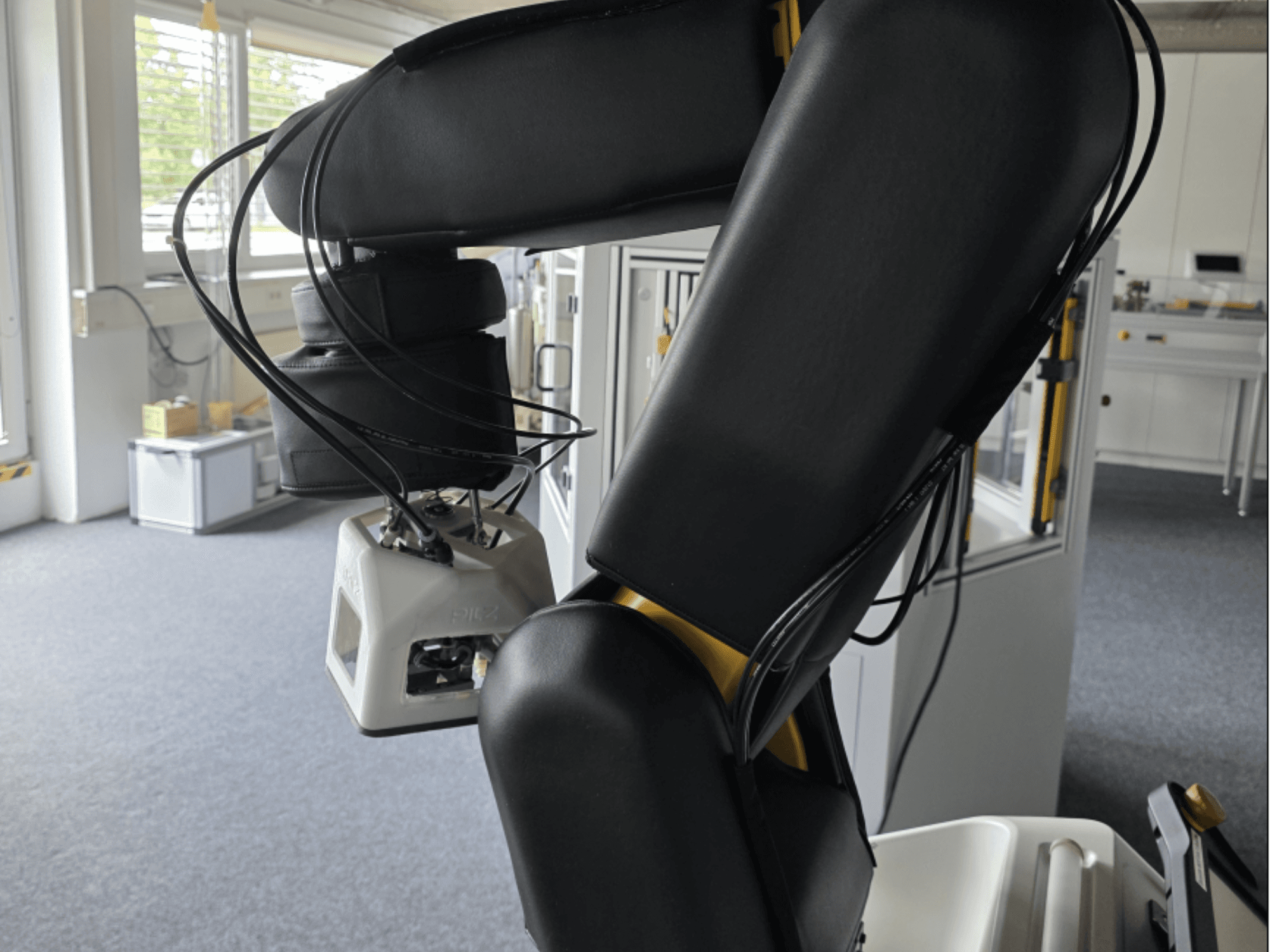

This 6-axis FANUC LR Mate 200iD/7L auf Bosch APAS assistant i6 was manufactured in 2015. It features a mobile base unit, a FANUC System R-30iB Mate control unit, and a custom-built pneumatic gripper. With 3,800 operating hours, this collaborative robot offers versatile automation capabilities. If you are looking to get high-quality automation capabilities, consider the FANUC LR Mate 200iD/7L collaborative robot we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2015
- MODEL: LR Mate 200iD/7L auf Bosch APAS assistant i6
- production hours: 3800
- application type: Robotics
- Location: Germany
- machine type: Collaborative Robot
- control unit brand: FANUC
Technical Information - FANUC LR Mate 200iD/7L auf Bosch APAS assistant i6
Control Unit
- Control Brand: FANUC
- Control Model: R-30iB Mate
Dimensions
- Machine Weight: 27 kg
Movement
- Number of Axes: 6
Technical Specification
- Max. Handling Weight: 7 kg
- Max. Reach: 911 mm
Additional Information
- Main Components: Mobile base unit Bosch APAS assistant i6 (on wheels), OpCon control panel, Robot arm FANUC LR Mate 200iD/7L, Control unit FANUC System R-30iB Mate, Teach pendant (handheld programming device)
- Peripherals & Additional Modules: Pneumatic module (Festo), Pneumatic gripper (custom-built), Protective covers and mounting frame (APAS-specific)
- Operating Hours: 3,800 h
- Main Circuit Voltage: 1/N/PE 230V AC 50Hz
- Control Circuit Voltage: 24V DC
- Full Load / Short Circuit Current: 3.5A / 10kA
- Min. Supply Line: 3 x 2.5 mm²
- Max. Backup Fuse: 16A gG
- Protection Rating: IP52
- Robot Weight: 27 kg
- Notes: Backup battery is dead
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
