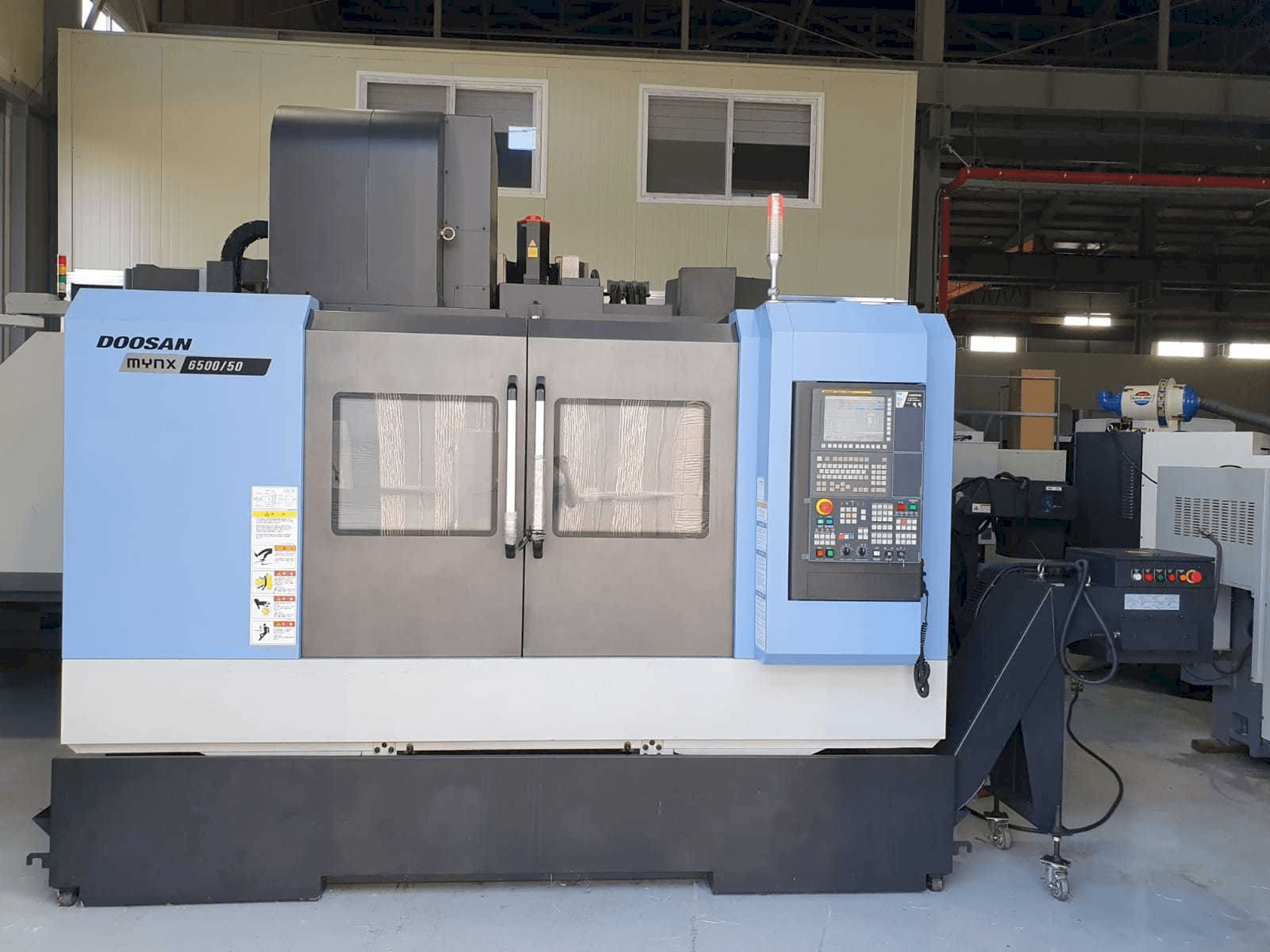

This Doosan Mynx 6500/50 Milling machine was made in the year 2018. It has been on for 1559 hours, of which 739 are cutting hours. It is operated through a FANUC i-Series control unit. The machine comes with a new 4th axis Tsudakoma and it works with a spindle speed up to 8000 rpm. Tailstock TL210M including.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: Mynx 6500/50
- production hours: 739
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN Mynx 6500/50
Control Unit
- Control Brand: FANUC
- Control Model: i-Series
Dimensions
- Machine Weight: 9000 kg
- Table Length: 1400 mm
- Table Width: 670 mm
Movement
- Number of Axes: 4
- X-axis Travel: 1270 mm
- Y-axis Travel: 670 mm
- Z-axis Travel: 625 mm
Technical Specification
- Spindle Speed: 8000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- *new 4th axis tsudakoma:
- Splitter rwa320l
- Shim for splitter: 45mm (with this we get a turning of the workpiece: 500 mm)
- Tailstock tl210m
- Shim tailstock: 45 mm
Technical Machine Benefits
- Aicc 40 block
- Spindle belt type
- Tsc 20 bar
- Oil skimmer (belt type)
- Magazine tool capacity : 24ea
- Call right(led 3 step)
- Spindle head cooling system (oil cooler)
- Guideway type:box guide
- Mpg handle
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
