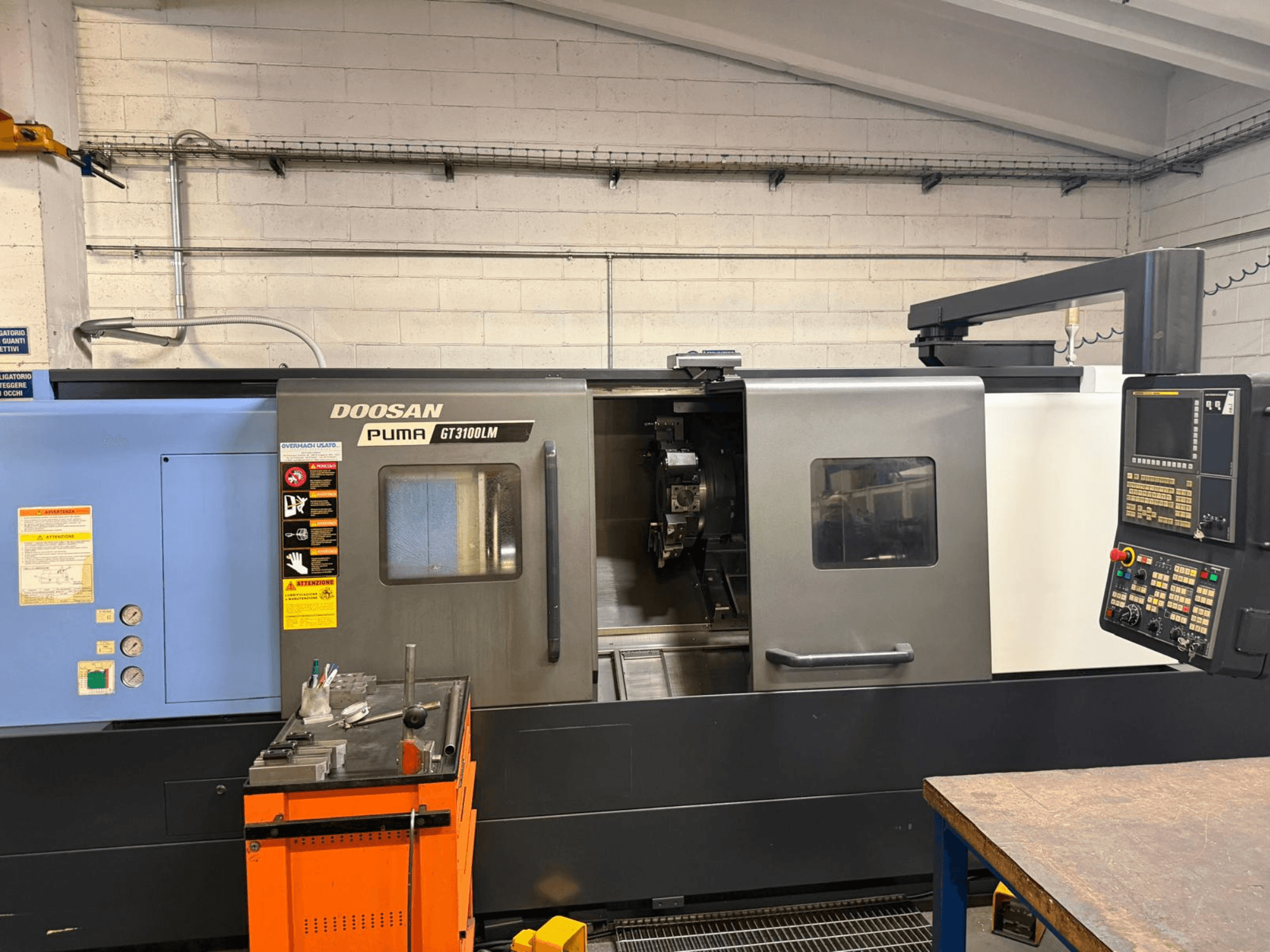

This 3-axis DOOSAN PUMA GT3100LM was manufactured in 2016. It features a maximum turning diameter of 376 mm and a turning length of 1,245 mm. The machine is equipped with a 12-station turret and live tooling capability, providing versatility for various applications. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA GT3100LM horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: PUMA GT3100LM
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN PUMA GT3100LM
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Height: 2198 mm
- Machine Length: 4855 mm
- Machine Weight: 7050 kg
- Machine Width: 2030 mm
Movement
- Number of Axes: 3
- X-axis Travel: 260 mm
- Z-axis Travel: 1350 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 26 kW
- Spindle Speed: 2800 RPM
Additional Information
Electrical: Nominal capacity 33.91 kVA; AC 400 V; 3Ø, PE, 50/60 Hz; Full load current 48.95 A; Interrupt power 5 kA; Short circuit withstand 10 kA; Electrical diagram edition GT3100H31UA00
Chuck: Samchully MH-212, 3-jaw hydraulic; Chuck size 305 mm
Turning capacity: Max swing over bed 720 mm; Max turning diameter 376 mm; Max turning length 1,245 mm; Max bar capacity 102 mm
Spindle: Nose A2-11; Bore diameter 115 mm; Motor power 26/22 kW (30 min/continuous); Max torque 1,123 Nm; C-axis indexing increment 0.001°
Turret: BMT65P, 12 stations; Live tool max speed 5,000 rpm; Live tool motor power 7.5 kW; 12-station turret with live tooling capability
Axes: Rapids X 24 m/min, Z 30 m/min; Guideways: Solid box guideways on all axes
Tailstock: Programmable movable/digital tailstock with live center; Quill taper MT5
Counters: Power-on 13,813 h 38 min; Operating 8,538 h 37 min; Cutting 5,547 h 03 min
Additional equipment
External Eppinger Preci-Flex live tool holders and static blocks
Tool-setting probe arm
Original technical documentation
