DOOSAN S550L

Photo Gallery

DOOSAN - S550LDE-TUR-DOO-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used DOOSAN S550L - 2004 - Lathe | gindumac.com

Show in original language

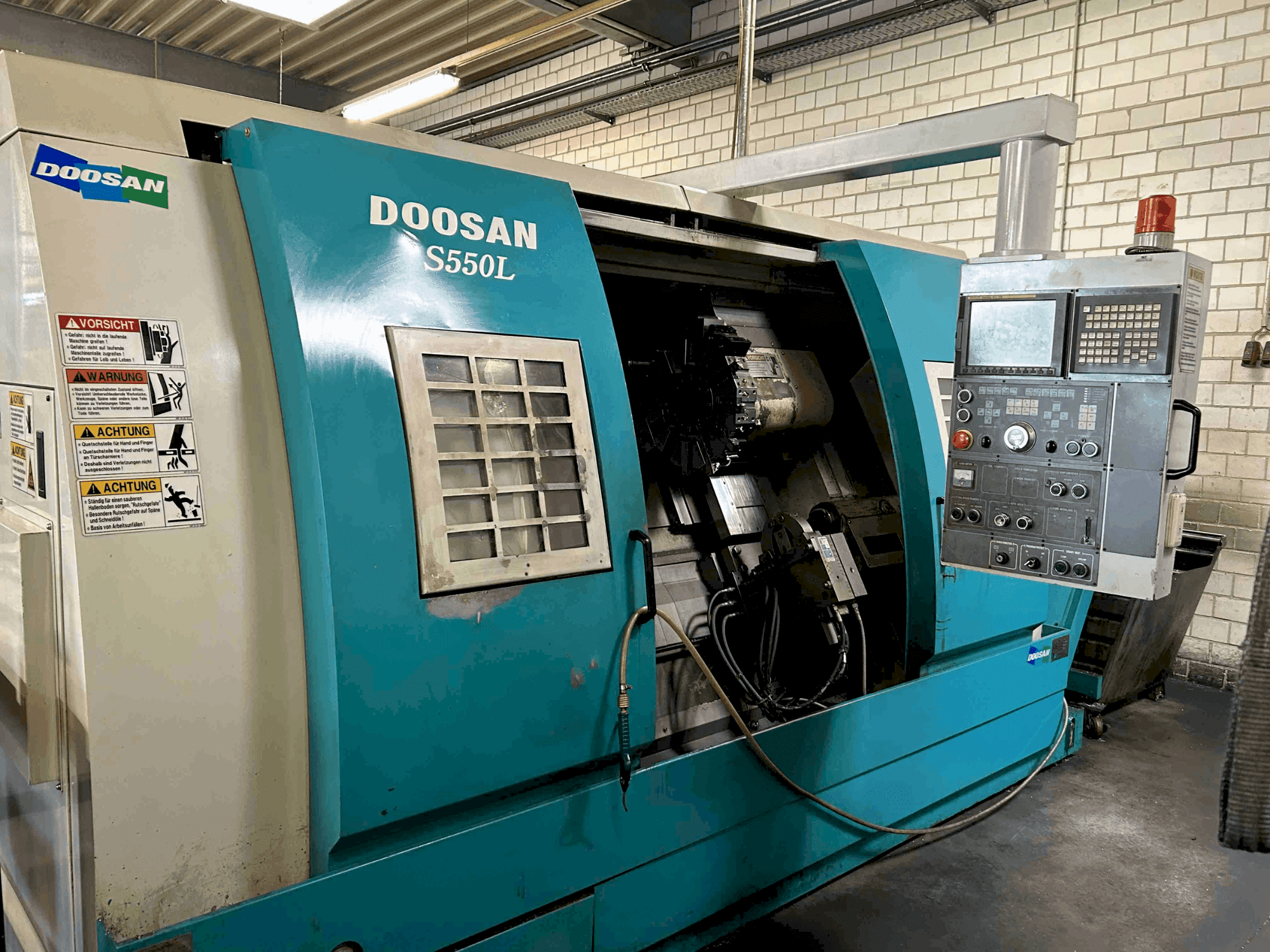

This DOOSAN S550L was manufactured in 2004. A lathe featuring a Fanuc 21i control, with X-axis travel of 315 mm and Z-axis travel of 1150 mm. It includes a 12’ 3-jaw chuck, self-centering steady rest SLU 3.1, and a spindle motor power of 22 kW. Ideal for precise and efficient turning operations. Reach out for more information about this lathe.

Overview

brand: DOOSAN
year: 2004
MODEL: S550L
production hours: 27363
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN S550L

Control Unit

Model: 21i
Brand: FANUC

Main drive

Spindle speed range: 30 - 2500 rpm 1/MIN
Spindle motor power: 22 kW

Movement

X-AXIS Movement: 315 MM
Z-AXIS Movement: 1150 MM

Workpiece

Workpiece drm: 550 mm

Turret

Number of turrets: 12

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Programmable tailstock
12’ 3-jaw chuck
Self-centring steady rest SLU 3.1
Automatic tool measuring arm

Machine Benefits

Qualitative Machine Benefits

Technical machine benefits: fully functional, ready for demonstration, enhanced operational efficiency and precision.
Technical machine benefits: fully functional, ready for demonstration, enhanced operational efficiency and precision.

Technical Machine Benefits

Swing over bed: 710mm // distance between both centres: 1230 mm // bed with across saddle slideway: 280mm.
Spindle center height: 1067mm // main spindle: nose type: asa a2-8 // taper of hole: mt no. 7
Front bearing diameter: op. Ø150 mm // hole diameter: op. Ø 102 mm // support: roller/angular, thrust bearings
Spindle speed override: 50-150(f-21itb) // main spindle motor continuos 30 min. Rating: ac 18. 5/22 kw
Turret: type: v12 // standard shank size: 25mm // boring bar diameter: max. Ø 50 mm
Feed axis: rapid traverse rate: x: 20mm - z:24mm
Electric equipment: nc unit type: f-21itb
Hydraulic pump motor: ac 1. 5 - 4p kw // way lubricating pump motor: ac 0. 02-4p kw
Coolant pump motor: ac 0. 4-2p // total power consumption: 31 kva
Steady-rest and tailstock move when hooked to the carriage

Extra Information

machine still under power
