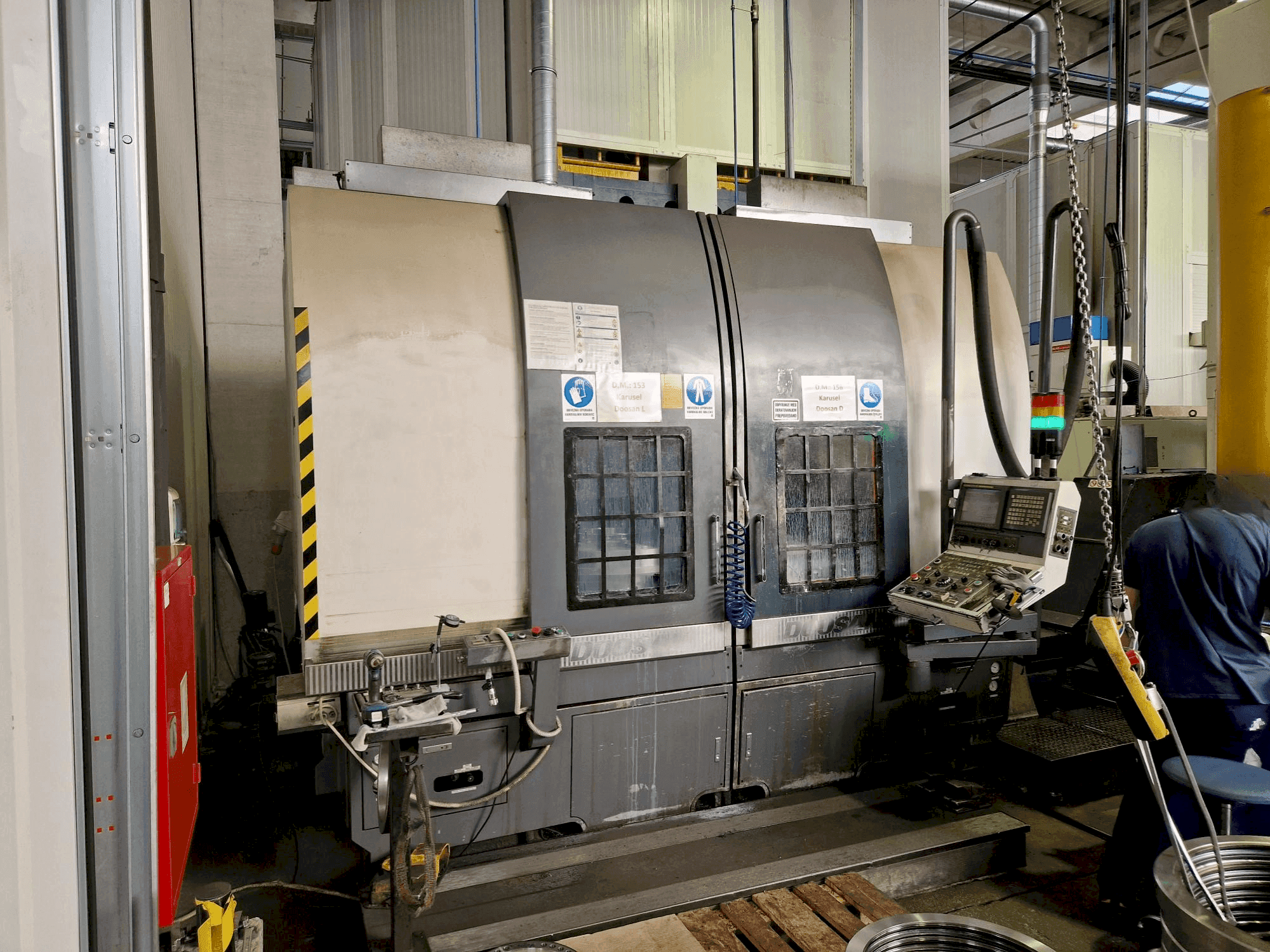

This DOOSAN V740T vertical turning machine was manufactured in 2005. It features a maximum swing diameter of 800 mm, turning diameter of 740 mm, and a turning length of 760 mm. The main spindle supports a rotational speed up to 2000 RPM with a motor power of 30 kW. It includes a 12-position turret and rapid traverse rates of 20 m/min for both X and Z axes. If you are looking to get high quality turning capabilities consider the DOOSAN V740T machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: DOOSAN
- year: 2005
- MODEL: V740T
- application type: Turning
- Location: Slovenia
- machine type: Vertical Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN V740T
Control Unit
- Control Brand: FANUC
- Control Model: FANUC 18I TB
Dimensions
- Machine Weight: 18000 kg
Movement
- Number of Axes: 2
- X-axis Travel: 380 mm
- Z-axis Travel: 760 mm
Technical Specification
- Spindle Power: 30 kW
- Spindle Speed: 2000 RPM
Additional Information
Additional equipment
- Holders for External Turning: HO10-25RL (4 pcs)
- Holders for Face Turning: HF10-25RL (2 pcs)
- Holders for Internal Turning: HB10-50N (4 pcs), HB10-40N (2 pcs)
- Reduction Sleeves: BS 40-10, -12, -16, -20, -25 (2 sets)
Machine Benefits
Technical Machine Benefits
- Drive: gear transmission, two stages
- Maximum swing diameter: 800 mm
- Maximum turning diameter: 740 mm
- Maximum turning length: 760 mm
- Number of positions: 12 x 2
- External turning: 25 x 25 mm
- Boring tools: Ø40/60 mm
- Tool change time: 0. 43 s
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
