Dugard - Eagle 200IE-TUR-DUG-2006-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Dugard Eagle 200 For Sale | gindumac.com
Show in original language

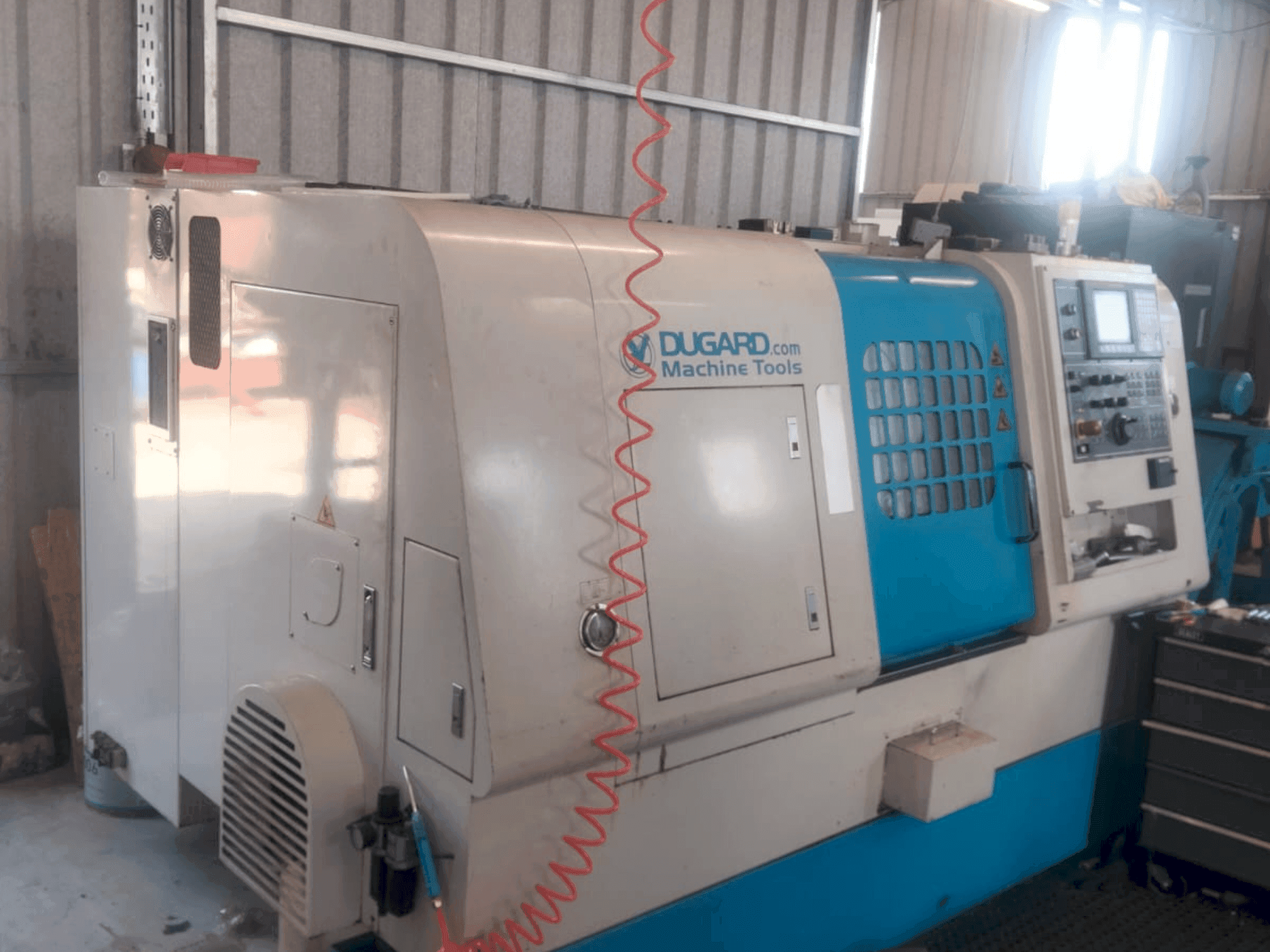

This Dugard Eagle 200 lathe was manufactured in 2006. Ideal for precision machining, it offers robust performance and reliability. A great opportunity to buy this Dugard Eagle 200 lathe. Contact us for further details.
Overview
- brand: Dugard
- year: 2006
- MODEL: Eagle 200
- application type: Turning
- Location: Ireland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Dugard Eagle 200
Control Unit
- Control Brand: FANUC
- Control Model: Series Oi Mate-TC
Dimensions
- Machine Depth: 1930 mm
- Machine Height: 2570 mm
- Machine Weight: 3850 kg
Movement
- Number of Axes: 2
- X-axis Travel: 176 mm
- Z-axis Travel: 520 mm
Technical Specification
- Max. Workpiece Diameter: 280 mm
- Spindle Power: 7.5 kW
- Spindle Speed: 4500 RPM
Additional Information
Additional equipment
- Bed Saddle and Tilting Angles: 45°
- Cone Degree of Inner Hole in 8" Main Shaft: 1/20
- Tool Turret Type: Hydraulic press type
- Hole Diameter of Boring Tool / Location: φ 32 mm / 5
- Turning Tool Sections / Location: □ 20 mm × 20 mm / 5
- Tailstock Axis Diameter: φ 75 mm // Tailstock Stroke: 425 mm
- Quill Type: Fix Quill // Quill Taper: MT No. 4 // Quill Stroke: 100 mm
- Coolant Device Motor: 180 W (1/4 HP) // Cutting Conveyor Motor: 180 W (1/4 HP)
- 6 x Tool Holders
- Swarf Conveyor
Machine Benefits
Qualitative Machine Benefits
- Used on light material only
Technical Machine Benefits
- Max. Workpiece diameter: 470 mm
- Max. Workpiece length: 508 mm
- Z axis servo motor: 1. 4 kw (1. 8 hp) //z axis fast feeding rate: 30 m/min (1181"/min)
- X axis servo motor: 1. 4 kw (1. 8 hp)
- X axis fast feeding rate: 30 m/min (1181"/min)
- Spindle hole diameter of main shaft / pull rod diameter: φ 62 mm / φ 52 mm
- Spindle nose: asa a2-6
- Hydraulic motor: 750 w (1 hp)
- Height from bed foot to spindle center: 900 mm // height from bed to spindle center: 290 mm
- 2 axis cnc lathe with tailstock
Extra Information
Machine still under power
