Dugard - EAGLE 200PL-TUR-DUG-2005-00001

Name: Dugard EAGLE 200
Brand: Dugard
SKU: PL-TUR-DUG-2005-00001
Price: 23000 EUR
Availability: InStock

23,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Dugard EAGLE 200 For Sale | gindumac.com

Show in original language

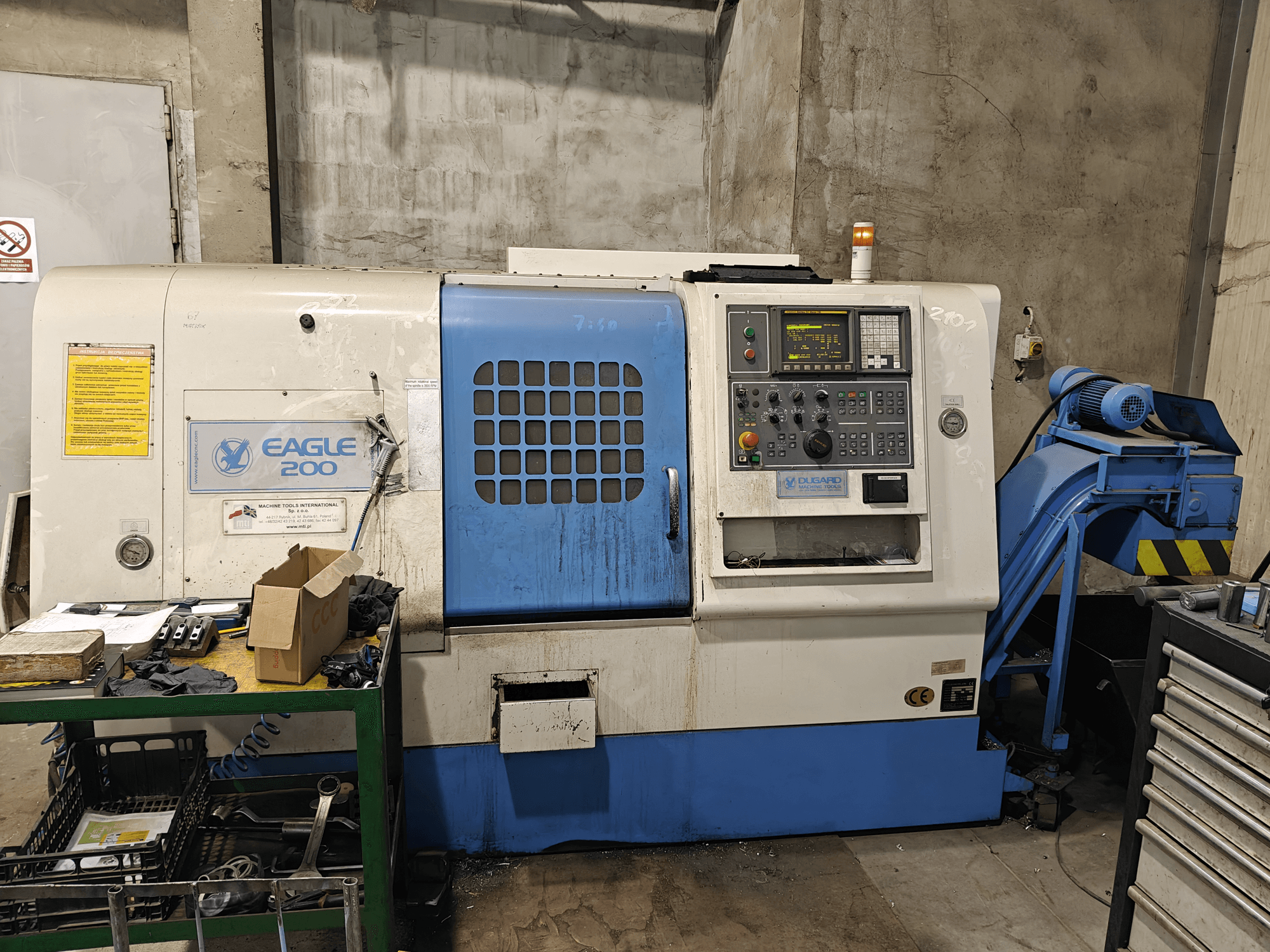

This Dugard Eagle 200 was manufactured in 2005. A robust horizontal turning machine featuring a maximum turning diameter of 280 mm and length of 508 mm. It includes a main spindle bore of ø62 mm and a bar capacity of ø52 mm. The spindle operates at speeds up to 4500 rpm, supported by a FANUC motor. Ideal for precise turning operations. Contact us for more information about this machine.

Overview

brand: Dugard
year: 2005
MODEL: EAGLE 200
production hours: 15731
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Dugard EAGLE 200

Control Unit

Control Brand: FANUC
Control Model: Series 0i Mate-TB

Dimensions

Machine Weight: 3400 kg

Movement

X-axis Travel: 176 mm
Z-axis Travel: 520 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 4500 RPM

Additional Information

Capacity
- Maximum turning diameter: 280 mm
- Maximum turning length: 508 mm
Axis travels and rapids
- Z-axis motor power: 1.4 kW (1.8 HP)
- Z-axis rapid speed: 30 m/min
- X-axis motor power: 1.4 kW (1.8 HP)
- X-axis rapid speed: 30 m/min
Spindle
- Spindle bore: ø62 mm
- Bar capacity: ø52 mm
- Spindle nose/taper: ASA A2-6
- Taper angle (conicity): 1/20
Tooling/Turret
- Turret type: Hydraulically clamped
- Maximum number of tools: 10
- Boring tool diameter / number of slots: ø32 mm / 5
- Turning tool shank size / number of slots: 20 mm × 20 mm / 5
Tailstock
- Tailstock type: Fixed
- Tailstock taper: MK4
- Sleeve diameter: ø75 mm
- Sleeve travel: 425 mm (note: also listed as 100 mm below, as provided)
- Tailstock sleeve travel: 100 mm (as provided)
Dimensions and weight
- Bed height to spindle center: 900 mm
- Bed-to-spindle-center distance: 290 mm
- Footprint: 3429 mm × 2569 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
