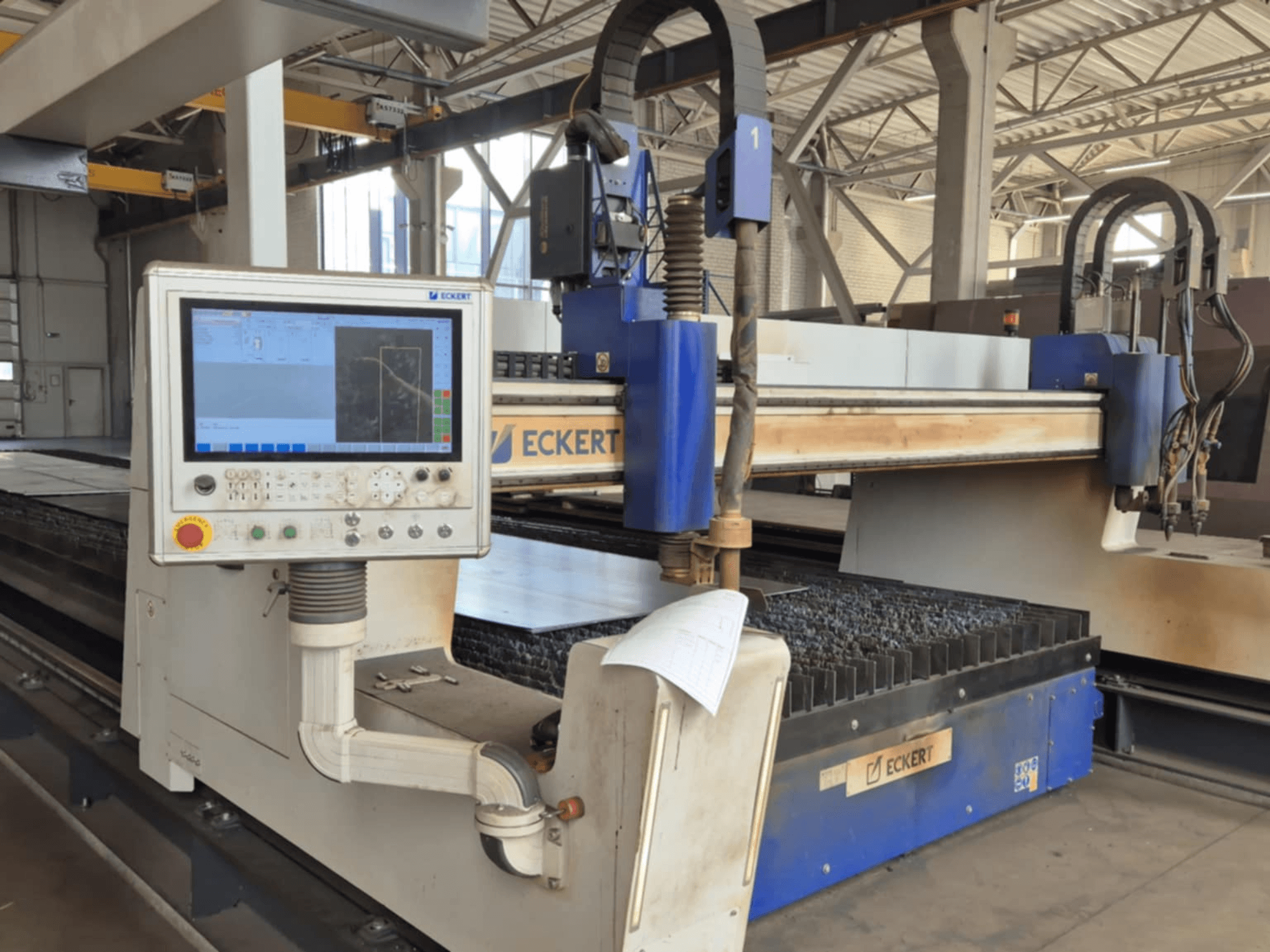

ECKERT - onyxLT-CUT-ECK-2018-00001

• Table size: 2500 × 13000 mm

• Cutting table: 2500 × 13500 mm with 2 fume exhaust channels (dust section table, serial no. 1446/13500)

• Cutting heads: Two gas cutting heads; up to 100 mm mild steel with two heads or 300 mm with one head

• Plasma source: Kjellberg Smart Focus 300

• Drive system: Servo AC

• Available cutting width: 2500 mm

• Basic working length: 13000 mm

• Positioning speed: 25000 mm/min

• Cutting thickness: Up to 300 mm

• Cutting quality: EN ISO 9013

• Positioning accuracy: EN 28206

• Repeat accuracy: EN 28206

• Safety module: EN 13850

• Wiring diagram: EN 81346

• Working table height: 740–760 mm

• Ambient temperature: +5°C to +45°C

• Relative humidity: Max. 90% (without condensation)

Additional equipment

• OHRA shelves for steel plate storage (optional accessory)
